Запчасти Case 584E (9-152) - DECALS, MODELS WITH DUAL LIFT CYLINDER MASTS, WITH OR WITHOUT 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS

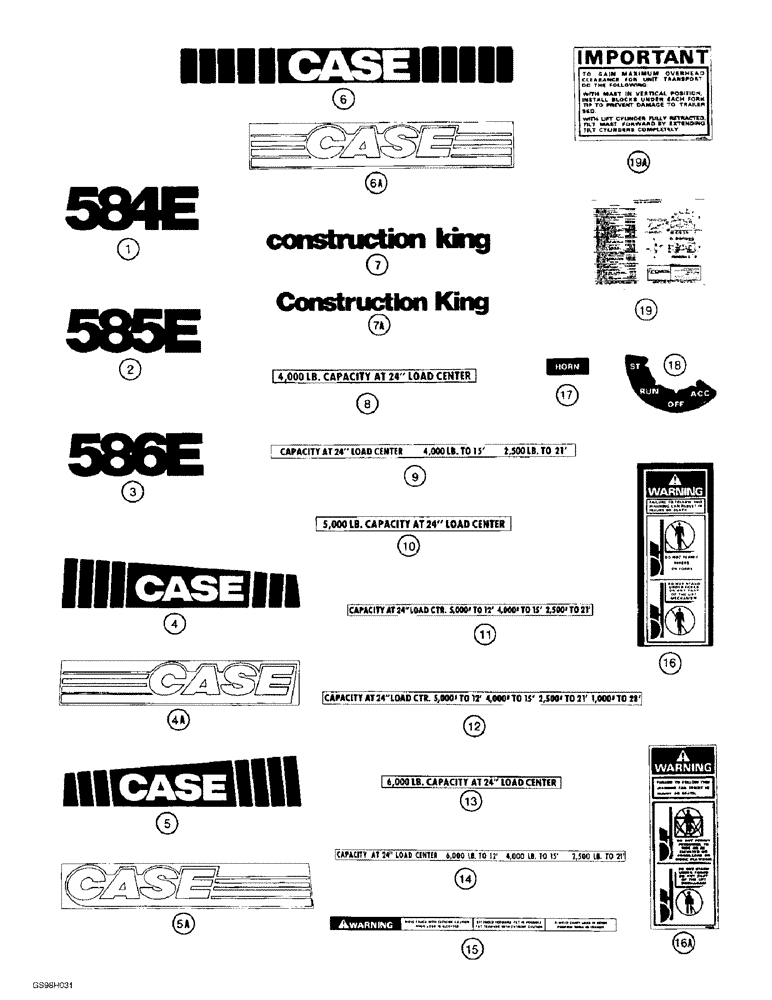

Схема запчастей Case 584E - (9-152) - DECALS, MODELS WITH DUAL LIFT CYLINDER MASTS, WITH OR WITHOUT 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS
6a
7
15
1
11
9
19a
2
19
13
17
3
8
16a
6
7a
10
4
4a
14
5
18
16
12
5a

Артикул

Название

Примечание

Количество

D142215

KIT - decal, models with dual lift cylinder masts without 31 degree forward mast tilt, no longer available as a kit, order components, Includes: Ref. 1 - 19A and Ref. 20 - 37 on Figure 9-154

1шт.

D146780

KIT - decal, models with dual lift cylinder masts with 31 degree forward mast tilt, no longer available as a kit, order components, Includes: Ref. 1 - 19A and Ref. 20 - 37 on Figure 9-154

1шт.

1

D131514

DECAL

- 584E, model number

2шт.

2

D131515

DECAL

- 585E, model number, used on models with brown trim

2шт.

2

182398A1

DECAL

- 585E, model number, used on models with gray trim, effective with serial number JJG213814

2шт.

3

D131516

DECAL

- 586E, model number, used on models with brown trim

2шт.

3

182399A1

DECAL

- 586E, model number, used on models with gray trim, effective with serial number JJG213814

2шт.

4

D123954

DECAL

- Case, with treads, left-hand, used on models with brown trim

1шт.

4a

183254A1

DECAL

- Case, with stripes, left-hand, used on models with gray trim

1шт.

5

D123952

DECAL

- Case, with treads, right-hand, used on models with brown trim

1шт.

5a

183255A1

DECAL

- Case, with stripes, right-hand, used on models with gray trim

1шт.

6

D123984

DECAL

- Case, with treads, front, used on models with brown trim

1шт.

6a

183256A1

DECAL

- Case, with stripes, front, used on models with gray trim

1шт.

7

D123950

DECAL

- construction king, no longer available, order decal 182684A1, Ref. 7A

2шт.

7a

182684A1

DECAL

- Construction King

1шт.

8

D87171

DECAL

- capacity, for 584E with 4.3 (14-1/4 foot) mast

1шт.

9

D142064

DECAL

- capacity, for 584E with 6.5 m (21-1/2 foot) mast

1шт.

10

D142068

DECAL

- capacity, for 585E with 3.6 m (12 foot) and 4.3 m (14-1/4 foot) masts

1шт.

11

D142065

DECAL

- capacity, for 585E with 6.5 m (21-1/2 foot) mast

1шт.

12

D142066

DECAL

- capacity, for 585E with 8.5 m (28 foot) mast

1шт.

13

D83264

DECAL

- capacity, for 586E with 3.6 m (12 foot), 4.3 m (14-1/4 foot), and 4.3 m (14 foot) freelift mast

1шт.

14

D142067

DECAL

- capacity, for 586E with 6.5 (21-1/2 foot) mast

1шт.

15

D87486

WARNING DECAL

- Warning, move truck with extreme caution, load transit

1шт.

16

D142504

DECAL

- Warning, failure to follow this warning can result in injury or death, no longer available, order decal 102929A1, Ref. 16A

2шт.

16a

102929A1

WARNING DECAL

- Warning, failure to follow this warning can result in injury or death

1шт.

17

321-3294

DECAL

- horn

1шт.

18

321-5871

DECAL

- ignition switch

1шт.

19

8-80921

DECAL

- maintenance schedule (Replaces decal D134741)

1шт.

19a

D146774

DECAL

- Important, to gain maximum overhead clearance for unit transport

1шт.

Выбрано товаров: 29
