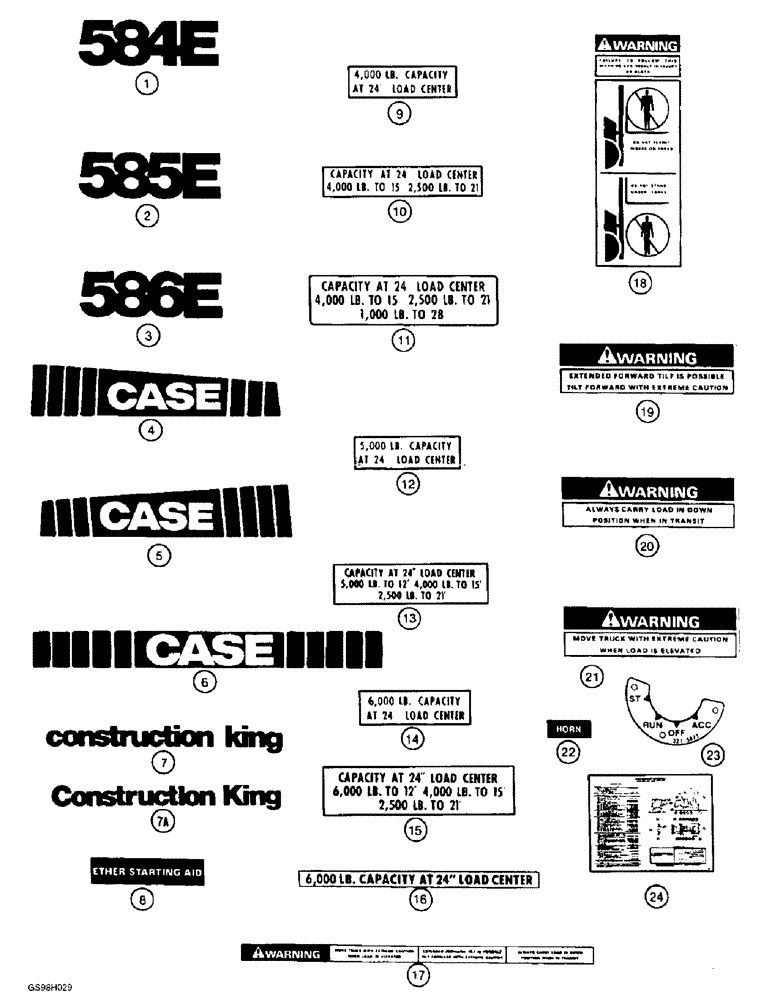

Запчасти Case 584E (9-148) - DECALS, MODELS WITH SINGLE LIFT CYLINDER MASTS (09) - CHASSIS/ATTACHMENTS

D132139

KIT

- decal, Includes: Ref. 1 - 24 and Ref. 25 - 44A on Figure 9-150

1шт.

1

D131514

DECAL

- 584E, model number

2шт.

2

D131515

DECAL

- 585E, model number, used with brown models

2шт.

2

182398A1

DECAL

- 585E, model number, used with gray models

2шт.

3

D131516

DECAL

- 586E, model number, used with brown models

2шт.

3

182399A1

DECAL

- 586E, model number, used with gray models

2шт.

4

D123954

DECAL

- Case, with treads, left-hand, used with brown models

1шт.

4

183254A1

DECAL

- Case, with stripes, left-hand, used with gray models

1шт.

5

D123952

DECAL

- Case, with treads, right-hand, used with brown models

1шт.

5

183255A1

DECAL

- Case, with stripes, right-hand, used with gray models

1шт.

6

D123984

DECAL

- Case, with treads, front, used with brown models

1шт.

6

183256A1

DECAL

- Case, with stripes, front, used with gray models

1шт.

7

D149903

DECAL

- Construction King, used with brown models (Replaces decal D123950)

2шт.

7a

182684A1

DECAL

- Construction King, used with gray models

2шт.

8

D124152

DECAL

- ether starting aid

1шт.

9

D55885

DECAL

- capacity, for 584E with 4.3 m (14-1/4 foot) mast, no longer available, order decal D87171, Ref. 8 on Figure 9-152

1шт.

10

D55888

DECAL

- capacity, for 584E with 6.5 m (21-1/2 foot) mast, no longer available, order decal D142064, Ref. 9 on Figure 9-152

1шт.

11

D55889

DECAL

- capacity, for 584E with 8.5 m (28 foot) mast

1шт.

12

D55886

DECAL

- capacity, for 585E with 3.6 m (12 foot) and 4.3 m (14-1/4 foot) masts, no longer available, order decal D142068, Ref. 10 on Figure 9-152

1шт.

13

321-3358

DECAL

- capacity, for 585E with 6.5 m (21-1/2 foot) mast

1шт.

14

D55887

DECAL

- capacity, for 586E with 3.6 m (12 foot) and 4.3 m (14-1/4 foot) masts, no longer available, order decal D83264, Ref. 13 on Figure 9-152

1шт.

15

N7705

DECAL

- capacity, for 586E with 6.5 m (21-1/2 foot) mast, no longer available, order decal D142067, Ref. 14 on Figure 9-152

1шт.

16

D83264

DECAL

- capacity, for 586E with 4.3 m (14 foot) freelift mast

1шт.

17

D87486

WARNING DECAL

- Warning, move truck with extreme caution

1шт.

18

D83455

DECAL

- Warning, failure to follow this warning, no longer available, order decal 102929A1, Ref. 16A on Figure 9-152

2шт.

19

321-3159

DECAL

- Warning, extended forward tilt is possible, no longer available, use decal D87486, Ref. 17

1шт.

20

321-3160

DECAL

- Warning, always carry load in down position when in transit, no longer available, use decal D87486, Ref. 17

1шт.

21

321-3161

DECAL

- Warning, move truck with extreme caution when load is elevated, no longer available, use decal D87486, Ref. 17

1шт.

22

321-3294

DECAL

- horn

1шт.

23

321-5871

DECAL

- ignition switch

1шт.

24

8-80921

DECAL

- maintenance schedule (Replaces decal D134741)

1шт.
