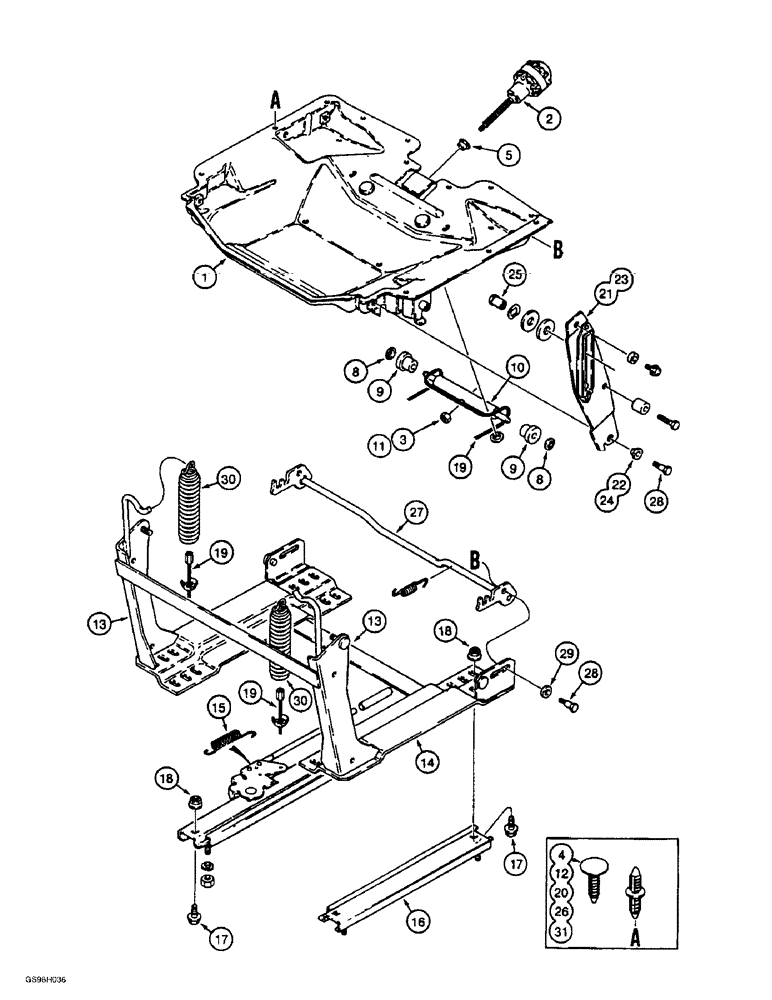

Запчасти Case 584E (9-140) - DELUXE OPERATORS SEAT, BASE AND ADJUSTING PARTS (09) - CHASSIS/ATTACHMENTS

D129790

SEAT

ASSEMBLY - operators, deluxe, brown vinyl, also includes cushions and shell on Figure 9-138, Includes: Ref. 1 - 31 and Ref. 32 - 48 on Figure 9-142

1шт.

178764A1

SEAT

ASSEMBLY - operators, deluxe, gray vinyl, also includes cushions and shell on Figure 9-138, Includes: Ref. 1 - 31 and Ref. 32 - 48 on Figure 9-142

1шт.

N13704

PAN ASSY.

BASE ASSEMBLY - seat, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - seat

1шт.

N13705

SET OF PARTS

KIT - knob, includes instruction sheet, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

KNOB - seat

1шт.

3

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

1шт.

4

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

2шт.

5

N9241

BUSHING

- seat base

1шт.

8

131-435

PUSH-ON NUT,Push, 3/8"

NUT - push-on type, 3/8 inch

2шт.

9

N8495

RETAINER

- springs, seat adjuster

2шт.

N13730

SET OF PARTS

KIT - shaft, cable support, includes instruction sheet, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - cable support

1шт.

11

131-1280

JAM NUT,Jam, 1/4"-20

NUT - hex, jam, self-locking, 1/4 inch NC

1шт.

12

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

2шт.

N13700

FRAME ASSY

FRAME ASSEMBLY - seat, Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

FRAME - seat

1шт.

14

D59695

SUPPORT

ADJUSTER - seat (Replaces adjuster N13701), Includes: Ref. 15 - 18

1шт.

15

L35503

SPRING

- adjuster

1шт.

16

N13607

ADJUSTER

SLIDE - seat

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

- hex flange, 5/16 inch NC

4шт.

N13702

SET OF PARTS

KIT - cable, includes instruction sheet, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

CABLE - tension, operator weight

1шт.

20

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

2шт.

N13725

SET OF PARTS

KIT - backrest support, includes instruction sheet, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - backrest, left-hand, Includes: Ref. 22

1шт.

22

N13754

BUSHING

- support

1шт.

23

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - backrest, right-hand, Includes: Ref. 24

1шт.

24

N13754

BUSHING

- support

1шт.

25

N13720

NUT

- special

2шт.

26

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

2шт.

N13726

SET OF PARTS

KIT - latch, backrest tilt, includes instruction sheet, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

LATCH - backrest tilt

1шт.

28

N13716

BOLT

BOLT - shoulder, special

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

N13728

SET OF PARTS

KIT - extension spring, includes instruction sheet, Includes: Ref. 30 and 31

2шт.

30

NSS

NOT SOLD SEPARAT

SPRING - extension

1шт.

31

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

1шт.
