Запчасти Case 584E (9-138) - DELUXE OPERATORS SEAT, CUSHIONS AND SHELL (09) - CHASSIS/ATTACHMENTS

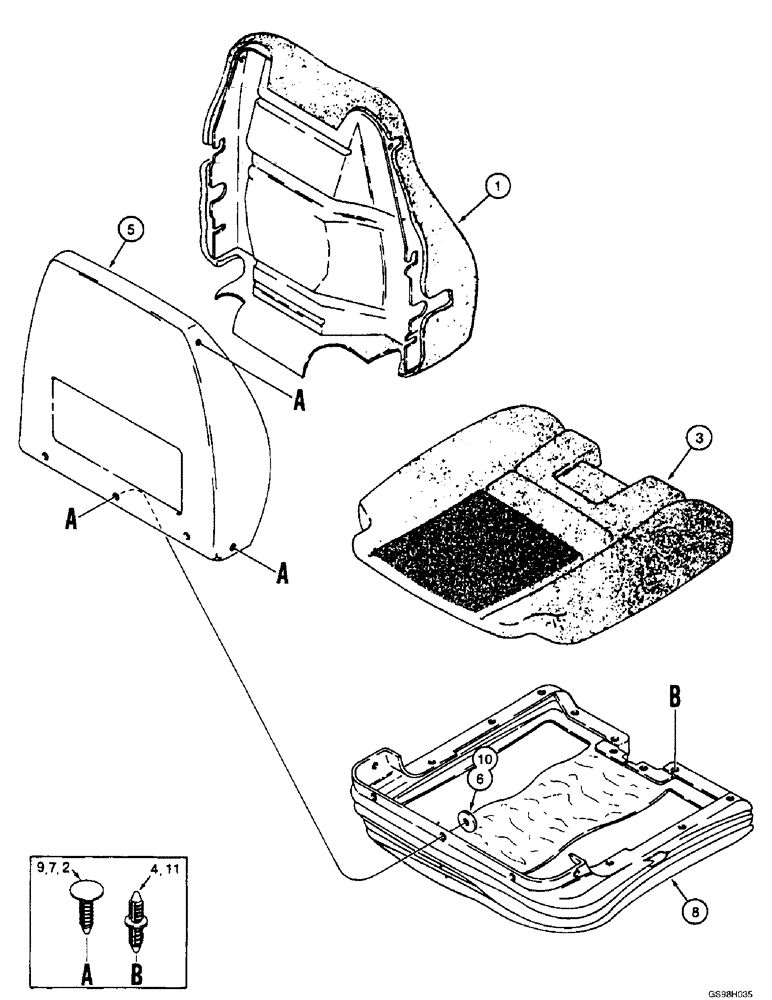

Схема запчастей Case 584E - (9-138) - DELUXE OPERATORS SEAT, CUSHIONS AND SHELL (09) - CHASSIS/ATTACHMENTS
1
4
7
8
5
10
11
9
3
2
6

Артикул

Название

Примечание

Количество

D129790

SEAT

ASSEMBLY - operators, deluxe, brown vinyl, also includes mechanical parts on Figure 9-140 and 9-142, Includes: Ref. 1 - 11

1шт.

178764A1

SEAT

ASSEMBLY - operators, deluxe, gray vinyl, also includes mechanical parts on Figure 9-140 and 9-142, Includes: Ref. 1 - 11

1шт.

N13724

SET OF PARTS

KIT - backrest cushion, brown, includes instruction sheet, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

2

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

2шт.

N13723

SET OF PARTS

KIT - seat cushion, brown, includes instruction sheet, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

4

N13712

CLIP,ELECTRICAL

CLIP - rubber cover, retaining

12шт.

N13729

SET OF PARTS

KIT - shell, backrest, includes instruction sheet, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

SHELL - backrest

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

7

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

7шт.

N13727

SET

KIT - rubber cover, lower seat, includes instruction sheet, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - lower seat

1шт.

9

N13703

CLIP,ELECTRICAL

CLIP - backrest shell, retaining

5шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

11

N13712

CLIP,ELECTRICAL

CLIP - rubber cover, retaining

12шт.

Выбрано товаров: 17
