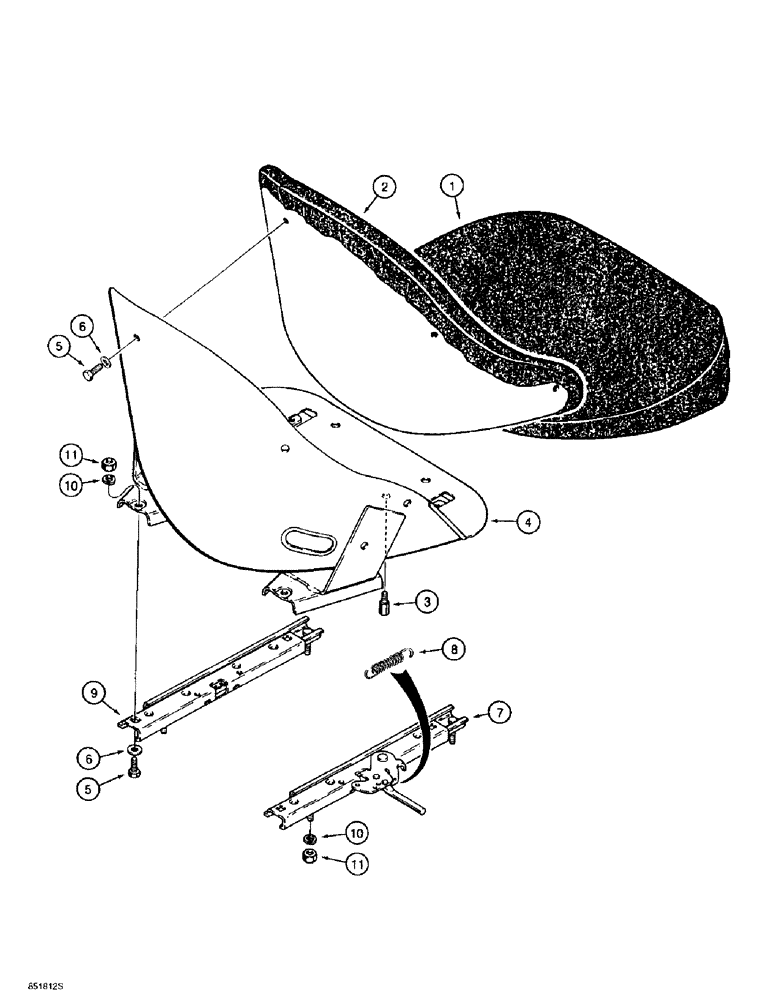

Запчасти Case 584E (9-134) - DELUXE OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D124790

SEAT

ASSEMBLY - operators, deluxe, brown, no longer available, order seat assembly D129790, parts list Figure 9-136 - 9-142, Includes: Ref. 1 - 11

1шт.

184741A1

SEAT

ASSEMBLY - operators, deluxe, gray, no longer available, order seat assembly 178764A1, parts list Figure 9-136 - 9-142, Includes: Ref. 1 - 11

1шт.

1

N8761

CUSHION

- seat, brown

1шт.

1

192449A1

CUSHION

- seat, gray

1шт.

2

N8762

CUSHION

- backrest, brown

1шт.

2

192448A1

CUSHION

- backrest, gray

1шт.

3

D77386

PIN

- cushion alignment

2шт.

4

NSS

NOT SOLD SEPARAT

SHELL - seat, order seat assembly

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

9шт.

7

D83178

ADJUSTER

SLIDE - adjuster, right-hand, 3-1/2 inch handle, Includes: Ref. 8

1шт.

8

L35503

SPRING

- adjusting lever

1шт.

9

L35272

ADJUSTER

SLIDE - adjuster, left-hand

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

11

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

10шт.
