Запчасти Case 584E (9-132) - STANDARD OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

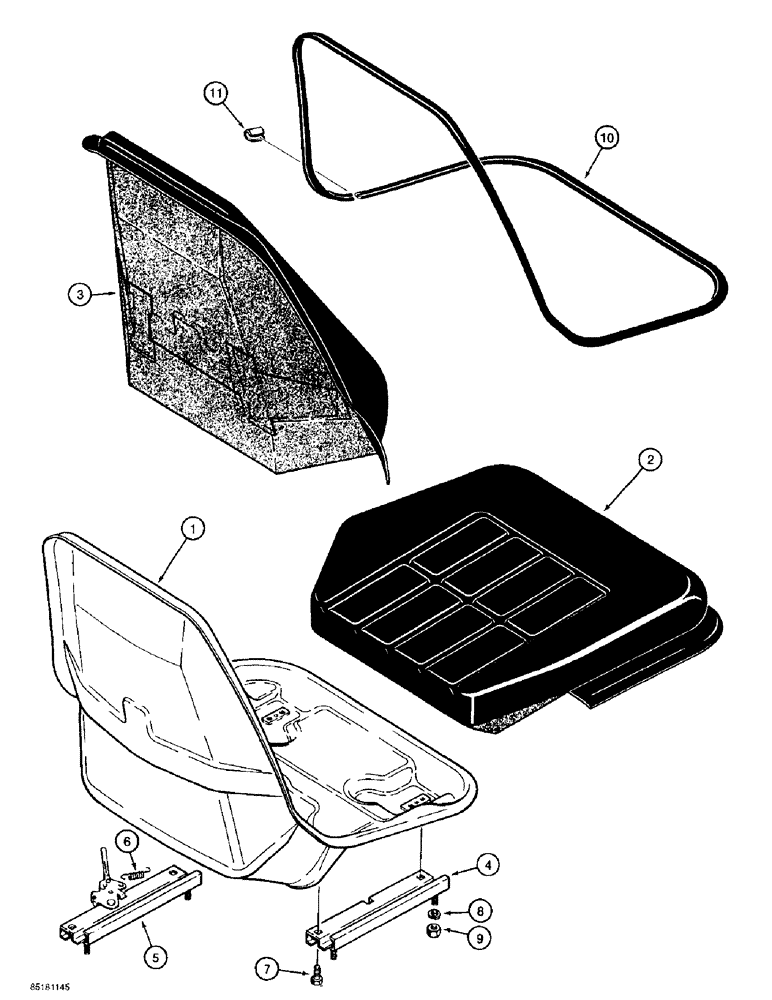

Схема запчастей Case 584E - (9-132) - STANDARD OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS
3
11
7
10
8
6
9
1
2
5
4

Артикул

Название

Примечание

Количество

D124515

SEAT ASSY.

SEAT ASSEMBLY - operators, brown vinyl, molded shell, Includes: Ref. 1 - 11

1шт.

178763A1

SEAT

ASSEMBLY - operators, gray vinyl, molded shell, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat, order seat assembly

1шт.

2

N8462

CUSHION

KIT - seat cushion, includes N7802 clip kit, brown, vinyl, see below

1шт.

2

190875A1

CUSHION, SEAT

KIT - seat cushion, includes N7802 clip kit, gray vinyl, see below

1шт.

3

N8461

CUSHION

KIT - backrest cushion, includes N7802 clip kit, brown vinyl, see below

1шт.

3

190874A1

BACKREST COVER

KIT - backrest cushion, includes N4702 clip kit, gray vinyl, see below

1шт.

4

N13607

ADJUSTER

SLIDE - seat, right-hand, Includes: Ref. 6

1шт.

5

N13606

ADJUSTER

SLIDE - seat, left-hand, adjustment side, Includes: Ref. 6

1шт.

6

L35503

SPRING

- adjustment lever

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

176924A1

SET OF PARTS

TRIM - edging, gray, cushion to shell (Replaces trim N14614)

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

See Figure 9-134 for the deluxe operators seat.

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally, not shown

1шт.

N7802

CLIP

KIT - clip

1шт.

See Figure 9-134 for the deluxe operators seat.

1шт.
