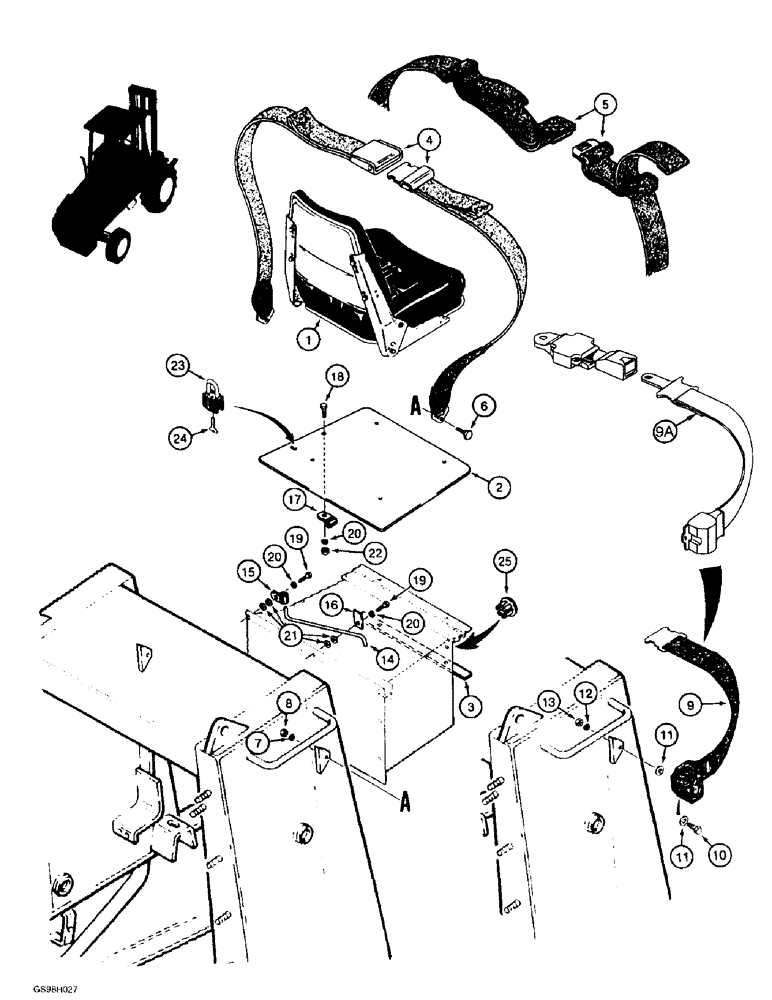

Запчасти Case 584E (9-130) - SEAT MOUNTING PARTS AND SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, for correct assembly and components, see Figure 9-132 - 9-142

1шт.

2

D67376

PLATE

- seat mounting

1шт.

3

D68335

PLATE

- hinge reinforcement

1шт.

The hinge that this plate attaches to is pictured on Figure 9-126 and is part number D67370.

1шт.

4

D133870

SAFETY BELT

BELT - seat, with anti-creep slide, 51 mm (2 inch) wide, if used

1шт.

5

D150010

SAFETY BELT

BELT - seat, 76 mm (3 inch) wide, if used (Replaces belt D85816)

1шт.

Also available as seat belt R58418. When ordering this Ref., also order: spacer D150391, Ref. 26; outer bracket D150392, Ref. 27; inner bracket D150393, Ref. 28; and mounting bar 110574A1, Ref. 28A. Order belt D150377, Ref. 9A; spacer D150391, Ref. 26; outer bracket D150392, Ref. 27; inner bracket D150393, Ref. 28; nut 232-4617, Ref. 29; bolts 414-720 and 414-732, Ref. 30 and 31; and washer 496-81010.

1шт.

6

F42236

STEP BOLT

BOLT - shoulder, special

2шт.

7

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

9

D135623

SAFETY BELT

BELT - seat, with retractor, 51 mm (2 inch) wide, no longer available

1шт.

Order belt D150377, Ref. 9A; spacer D150391, Ref. 26; outer bracket D150392, Ref. 27; inner bracket D150393, Ref. 28; nut 232-4617, Ref. 29; bolts 414-720 and 414-732, Ref. 30 and 31; and washer 496-81010.

1шт.

9a

D150377

SAFETY BELT ,2.00" W

2.00" W

1шт.

10

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

- hex, 7/16 NF x 1-1/2 inch

2шт.

11

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.

12

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

14

D77709

ROD

- seat support

1шт.

15

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

1шт.

16

D49640

BLOCK

- seat support rod

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, on seat mounting plate 1/2", Insul, 3/8" Bolt

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

20

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

D93753

PADLOCK

- includes keys, for battery, if used, Includes: Ref. 24

1шт.

24

R29555

KEY

- for Master padlock only

2шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

25

L18398

HOLE PLUG BUTTON,13/32"

PLUG - button, 13/32 inch ID, fuel shutoff cable hole

1шт.

26

D150391

SPACER

- seat belt, not shown

1шт.

27

D150392

BRACKET

- left-hand belt, outer, not shown

1шт.

28

D150393

BRACKET

- reinforcing, seat belt, inner, not shown

1шт.

28a

110574A1

BAR

- mounting, not shown

1шт.

29

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, , Not shown 7/16"-20, GC

1шт.

30

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7-16 NF x 1-1/4 inch, not shown

1шт.

31

414-732

BOLT,Hex, 7/16" - 20 x 2", Gr 5

- hex, 7/16 NF x 2 inch, not shown

1шт.

32

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened, not shown

1шт.
