(9-128) - FLOORMAT AND NOISE REDUCTION PADS

Запчасти Case 584E (9-128) - FLOORMAT AND NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

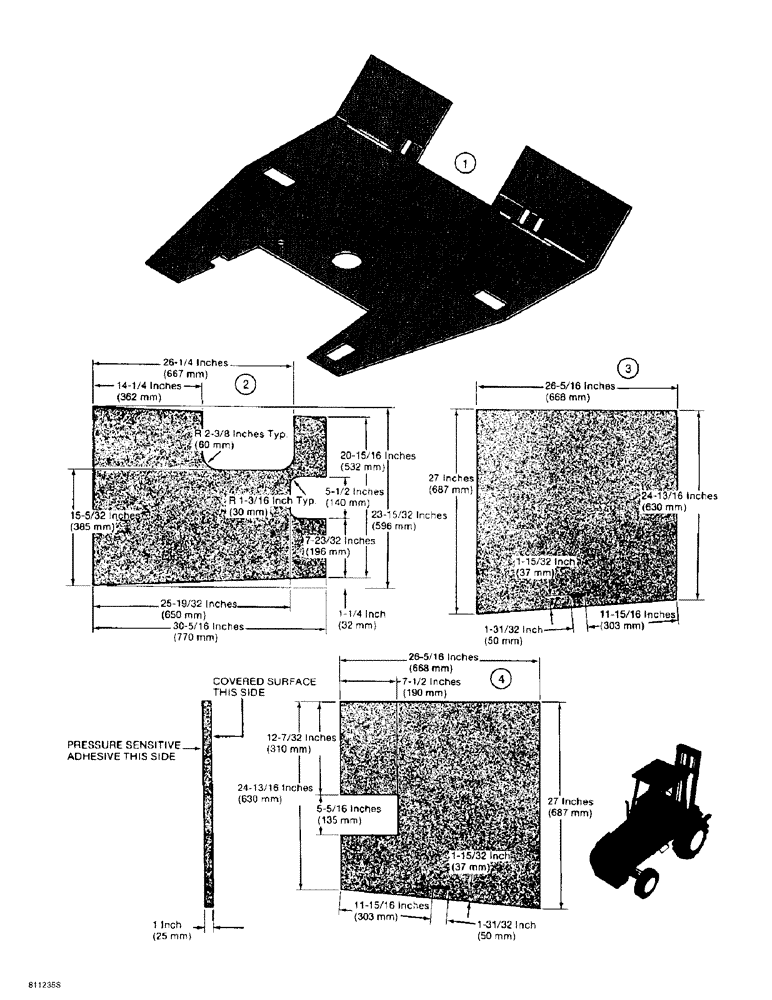

Схема запчастей Case 584E - (9-128) - FLOORMAT AND NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D126750

MAT

FLOORMAT - operators compartment

1шт.

2

REF

INSTRUCTION

PAD - hood, cut from D89609, see below

1шт.

3

REF

INSTRUCTION

PAD - engine side panel, right-hand, cut from D89609, see below

1шт.

4

REF

INSTRUCTION

PAD - engine side panel, left-hand, cut from D89609, see below

1шт.

D89609

PAD

- bulk, 1372 (54) x 914 (36) x 25 mm (1 inch), not shown

1шт.
