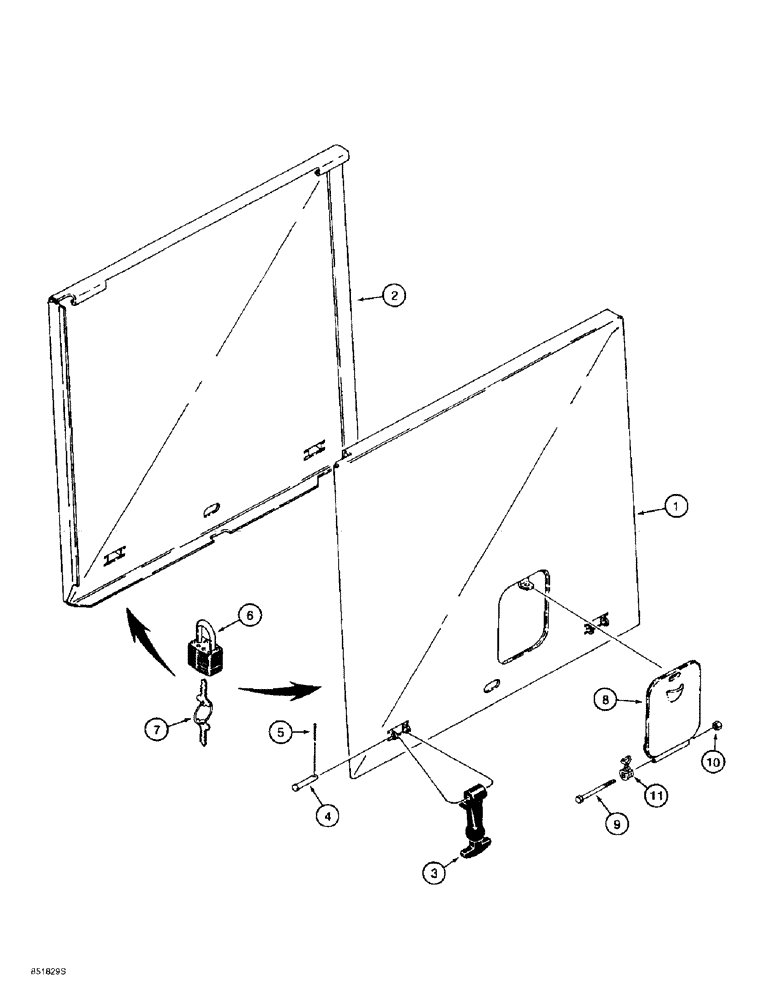

Запчасти Case 584E (9-124) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

D125779

LARGE PLATE

PANEL - side, engine, left hand

1шт.

2

D122138

PANEL

- side, engine, right hand

1шт.

3

D121323

LATCH ASSY.

LATCH - side panel

4шт.

4

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

PIN - clevis, 3/16 x 1-9/16 inch

4шт.

5

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

6

D93753

PADLOCK

- includes keys, Includes: Ref. 7

2шт.

7

R29555

KEY

- for Master padlock only

2шт.

7

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

8

D92446

DOOR

- access

1шт.

For service order D146196 kit, which includes (1) D146195 cover, (1) 321-6672 Warning decal, and 8-76690 decal installation instruction sheet.

1шт.

9

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

plated Hex, 1/4"-20 x 3 1/4", G5

1шт.

10

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

11

D121677

SPRING

- access door return

1шт.
