Запчасти Case 584E (9-118) - CHASSIS, MODELS WITH DUAL MAST LIFT CYLINDERS, WITH 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS

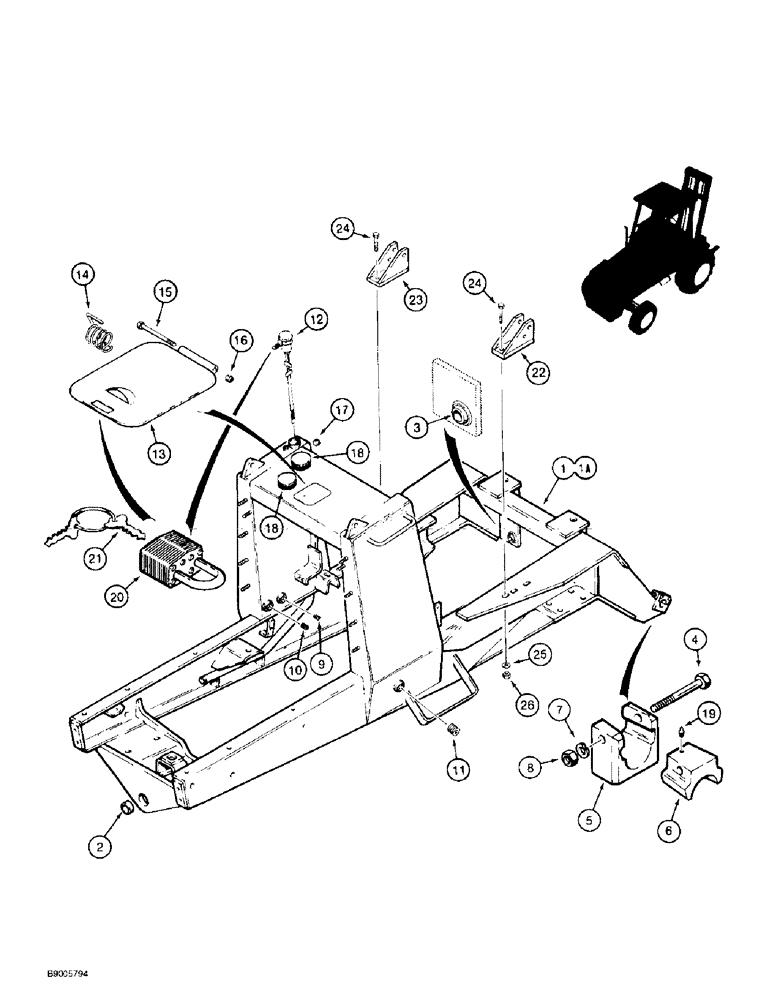

Схема запчастей Case 584E - (9-118) - CHASSIS, MODELS WITH DUAL MAST LIFT CYLINDERS, WITH 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS
14
8
18
24
22
20
1
21
3
13
7
24
5
18
4
10
17
9
16
23
6
1a
12
26
11
25
15
19
2

Артикул

Название

Примечание

Количество

1

D146643

FRAME ASSY

CHASSIS ASSEMBY - forklift, two wheel drive models, Includes: Ref. 2 - 11

1шт.

Includes (2) 321-5701 and (1) 321-6718 Warning decals. See Ref. 31 and 33 on Figure 9-146.

1шт.

1a

D146644

FRAME ASSY

CHASSIS ASSEMBLY - forklift, four wheel drive models, Includes: Ref. 2 - 11

1шт.

Includes (2) 321-5701 and (1) 321-6718 Warning decals. See Ref. 31 and 33 on Figure 9-146.

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- 1-3/4 x 2-1/4 x 1 inch, two wheel drive models only

2шт.

3

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning, sideshift cylinder mounting

1шт.

D66315

BLOCK

ASSEMBLY - mast trunnion mounting, right-hand, Includes: Ref. 4 - 8

1шт.

D66316

BLOCK

ASSEMBLY - mast trunnion mounting, left-hand, Includes: Ref. 4 - 8

1шт.

4

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - trunnion mounting

1шт.

6

NSS

NOT SOLD SEPARAT

WEDGE - trunnion block

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket headless, 3/4 inch PT, left-hand tank only

1шт.

10

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket headless, 1 inch PT

2шт.

11

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- square socket headless, 1-1/4 inch PT

2шт.

12

D93915

DIPSTICK

- hydraulic oil

1шт.

13

D146195

COVER

- fuel

1шт.

For service order D146196 kit, which includes (1) D146195 cover, (1) 321-6672 Warning decal, and 8-76690 decal installation instruction sheet.

1шт.

14

D121677

SPRING

- fuel cover return

1шт.

15

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

16

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

17

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

18

D143595

PLUG

- button, 3 inch ID, plated, chassis top

2шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

20

D93753

PADLOCK

- includes keys, Includes: Ref. 21

2шт.

21

R29555

KEY

- for Master padlock only

2шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

22

D146634

BRACKET

- mounting, right-hand, tilt cylinder

1шт.

23

D146635

BRACKET

- mounting, left-hand, tilt cylinder

1шт.

24

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

6шт.

25

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

6шт.

26

231-14012

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

6шт.
