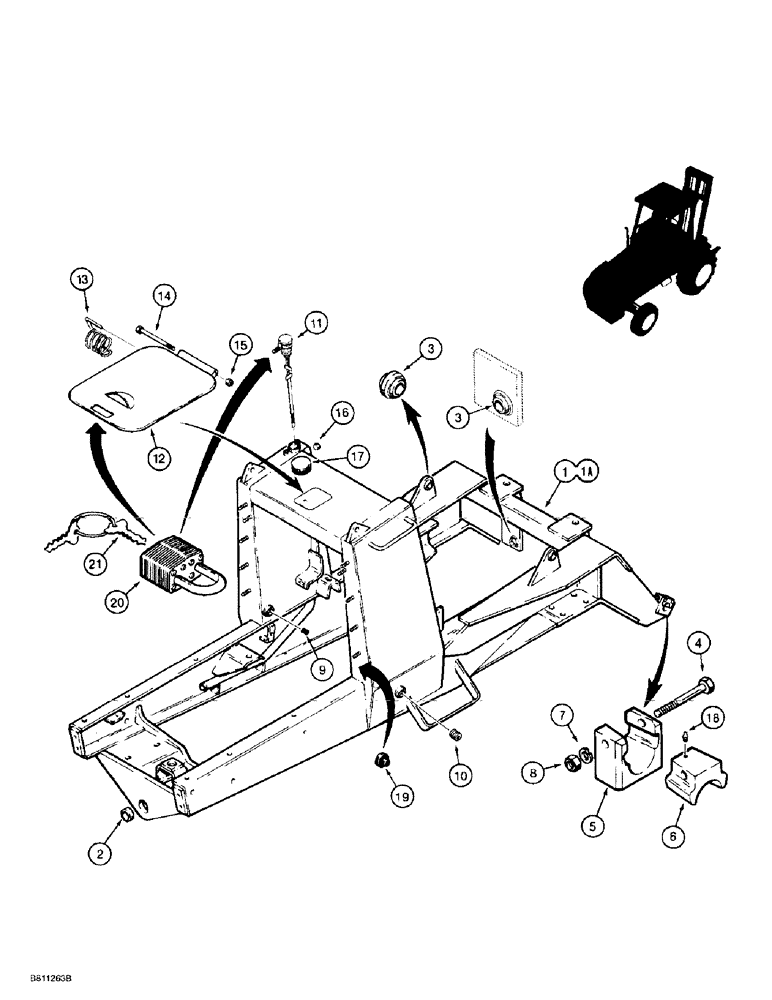

Запчасти Case 584E (9-116) - CHASSIS, MODELS WITH SINGLE AND DUAL MAST LIFT CYLINDERS WITHOUT 31 DEGREE MAST TILT (09) - CHASSIS/ATTACHMENTS

1

D132422

FRAME ASSY

CHASSIS ASSEMBLY - forklift, two wheel drive models, Includes: Ref. 2 - 10

1шт.

1a

D132423

FRAME ASSY

CHASSIS ASSEMBLY - forklift, four wheel drive models, Includes: Ref. 2 - 10

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- 1-3/4 x 2-1/4 x 1 inch, two wheel drive models only

2шт.

3

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning, tilt or sideshift cylinder mounting

3шт.

Weldment ear where Ref. 3 (D40843) bushing mounts is D66578.

1шт.

D66315

BLOCK

ASSEMBLY - mast trunnion mounting, right-hand, Includes: Ref. 4 - 8

1шт.

D66316

BLOCK

ASSEMBLY - mast trunnion mounting, left-hand, Includes: Ref. 4 - 8

1шт.

4

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - trunnion mounting, right-hand and left-hand, order block assembly

1шт.

6

NSS

NOT SOLD SEPARAT

WEDGE - trunnion block, right-hand and left-hand, order block assembly

1шт.

7

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - square socket headless, 3/4 inch PT

3шт.

10

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

- square socket headless, 1-1/4 inch PT

2шт.

11

D93915

DIPSTICK

- hydraulic oil

1шт.

12

D120308

LUBRICANT

COVER - fuel

1шт.

For service order D146196 kit, which includes (1) D146195 cover, (1) 321-6672 Warning decal, and 8-76690 decal installation instruction sheet.

1шт.

13

D121677

SPRING

- cover return

1шт.

14

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

plated Hex, 1/4"-20 x 3 1/4", G5

1шт.

15

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

16

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

17

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3 inch ID

1-2шт.

18

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 19/32 inch

2шт.

19

L60224

BUMPER

- rubber

2шт.

20

D93753

PADLOCK

- includes keys, Includes: Ref. 21

2шт.

21

R29555

KEY

- for Master padlock only

2шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
