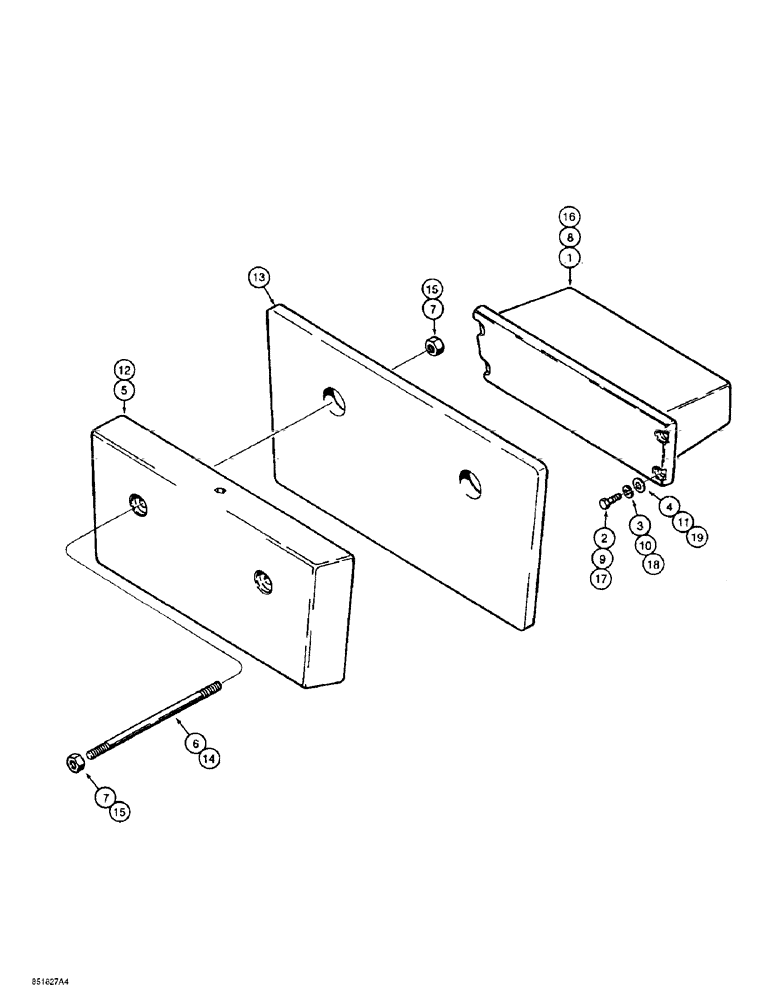

Запчасти Case 584E (9-114) - REAR COUNTERWEIGHTS, FOR 585E MODELS WITH 3.6 M (12 FOOT) OR 4.3 M (14-1/4 FOOT) MAST (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D91631
WEIGHT
COUNTERWEIGHT - inner, 206.67 kg (455 lb)
1шт.
2
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
4шт.
3
492-11038
LOCK WASHER,3/8"
4шт.
4
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
4шт.
5
D70038
WEIGHT
COUNTERWEIGHT - outer, 295.24 kg (650 lb), for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast
1шт.
6
D120291
STUD
- 3/4 NC x 15-3/16 inch, when Ref. 5 is used without Ref. 8, for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast
2шт.
7
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC, for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast
4шт.
8
D91631
WEIGHT
COUNTERWEIGHT - inner, 206.67 kg (455 lb), for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast
1шт.
9
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch, for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast
4шт.
10
492-11038
LOCK WASHER,3/8"
for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast 3/8"
4шт.
11
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch), for 585E models with 6.5 m (21-1/2 foot) or 8.5 m (28 foot) mast, for 586E models with 3.6 m (12 foot) or 4.3 m (14-1/4 foot) mast or 4.3 m (14-1/4 foot) free lift mast 3/8"
4шт.
12
D70038
WEIGHT
COUNTERWEIGHT - outer, 295.24 kg (650 lb), for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast
1шт.
13
D122191
WEIGHT
COUNTERWEIGHT - center, 66.1 kg (146 lb), for 6.5 m (21-1/2 foot) mast, for 585E models with 6.4 m (21 foot) free lift mast
1шт.
13
D148000
WEIGHT
COUNTERWEIGHT - center, 98.9 kg (218 lb), for 6.4 m (21 foot) free lift mast, for 585E models with 6.5 m (21-1/2 foot) mast
1шт.
14
D122192
STUD
- 3/4 NC x 16-1/8 inch, when both Ref. 12 and 13 are used, for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast
2шт.
15
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC, for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast
4шт.
16
D91631
WEIGHT
COUNTERWEIGHT - inner, 206.67 kg (455 lb), for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast
1шт.
17
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch, for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast
4шт.
18
492-11038
LOCK WASHER,3/8"
for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast 3/8"
4шт.
19
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch), for 585E models with 6.5 m (21-1/2 foot) mast or 6.4 m (21 foot) free lift mast 3/8"
4шт.
Выбрано товаров: 20
