Запчасти Case 584E (9-112) - FORKS, PALLET AND LOGGING FORKS (09) - CHASSIS/ATTACHMENTS

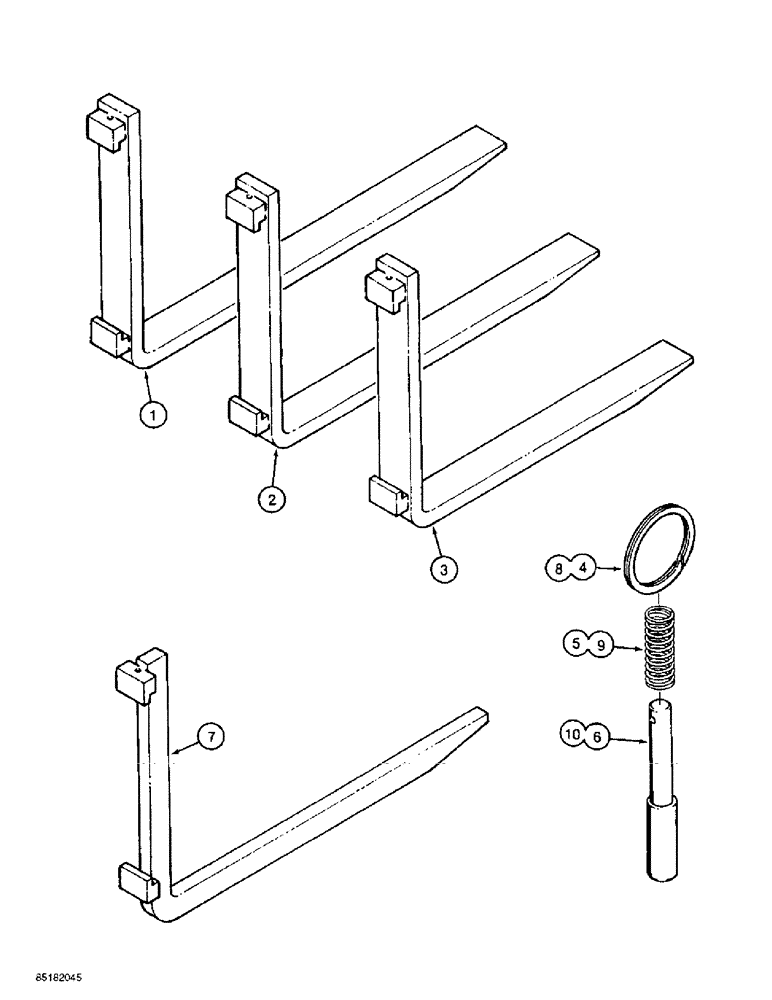

Схема запчастей Case 584E - (9-112) - FORKS, PALLET AND LOGGING FORKS (09) - CHASSIS/ATTACHMENTS
7
5
9
2
4
1
8
3
10
6

Артикул

Название

Примечание

Количество

1

D10464

FORK

ASSEMBLY - pallet and logging, 1219 mm (48 inch) long, units with 19 mm (3/4 inch) back plates, Includes: Ref. 4 - 6

2шт.

1

D36809

FORK

ASSEMBLY - pallet and logging, 1219 mm (48 inch) long, units with 25 mm (1 inch) back plates, Includes: Ref. 4 - 6

2шт.

1

D55845

FORK

ASSEMBLY - pallet and logging, 1219 mm (48 inch) long, units with 32 mm (1-1/4 inch) back plates, tractor, Includes: Ref. 4 - 6, Serial Range: -JJG0067581

2шт.

Mast S.N. 71945, 71946, 72013 through 72016, 72018, 72145, 72183 and 72184 must use D55845 pallet forks when 48 inch pallet forks are needed.

1шт.

1

D144593

FORK

ASSEMBLY - pallet and logging, 1219 mm (48 inch) long, units with 32 mm (1-1/4 inch) back plates, tractor, Includes: Ref. 4 - 6, Start Serial: JJG0067581

2шт.

Mast S.N. 71943, 71944, 71947, 72742 and after must use D144593 pallet forks when 48 inch pallet forks are needed. May be used on earlier tractors if used in pairs.

1шт.

2

D10465

TINE

FORK ASSEMBLY - pallet and logging, 1066 mm (42 inch) long, units with 19 mm (3/4 inch) back plates, Includes: Ref. 4 - 6

2шт.

3

D10466

FORK

ASSEMBLY - pallet and logging, 914 mm (36 inch) long, units with 19 mm (3/4 inch) back plates, Includes: Ref. 4 - 6

2шт.

4

D41289

RING

- pin retaining, included with all forks

1шт.

5

D52904

VALVE SPRING

SPRING - tension, pin, included with all forks

1шт.

6

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork, included with all forks

1шт.

7

D10653

FORK

ASSEMBLY - concrete block, 1066 mm (42 inch) long, units with 19 mm (3/4 inch) back plates, Includes: Ref. 8 - 10

6шт.

7

D43690

FORK

ASSEMBLY - concrete block, 1219 mm (48 inch) long, units with 19 mm (3/4 inch) back plates, Includes: Ref. 8 - 10

6шт.

7

D41220

FORK

ASSEMBLY - concrete block, 1066 mm (42 inch) long, units with 25 mm (1 inch) back plates, Includes: Ref. 8 - 10

6шт.

7

D43691

TINE

FORK ASSEMBLY - concrete block, 1219 mm (48 inch) long, units with 25 mm (1 inch) back plates, Includes: Ref. 8 - 10

6шт.

7

D55846

FORK

ASSEMBLY - concrete block, 1066 mm (42 inch) long, units with 25 mm (1 inch) back plates, Includes: Ref. 8 - 10

6шт.

7

D55847

FORK

ASSEMBLY - concrete block, 1219 mm (48 inch) long, units with 25 mm (1 inch) back plates, Includes: Ref. 8 - 10

6шт.

8

D41289

RING

- pin retaining, included with all forks

1шт.

9

D52904

VALVE SPRING

SPRING - tension, pin, includes with all forks

1шт.

10

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork, included with all forks

1шт.

Выбрано товаров: 20
