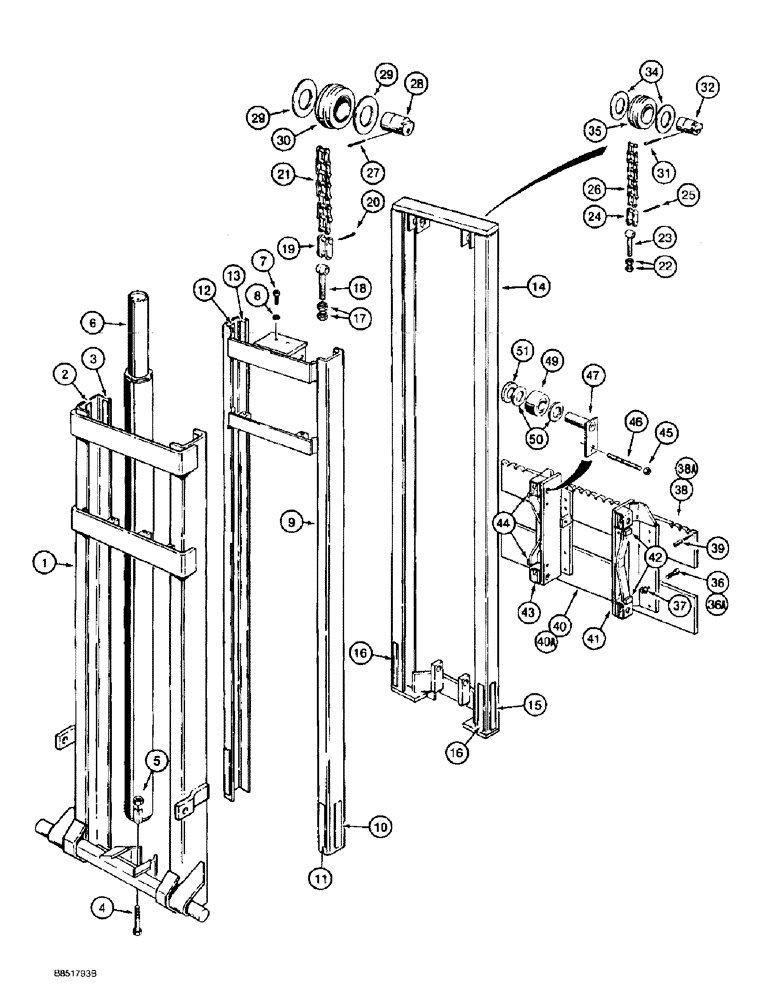

Запчасти Case 584E (9-028) - 8.5 M (28 FOOT) MAST FOR 584E, MODELS WITH SINGLE LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

D121917

MAST ASSEMBLY

- forklift, 8.5 m (28 foot), with 19 mm (3/4 inch) thick back plates, Ref. 38 and 40, machinery Ref., order from machinery price list, no longer available as an assembly, Includes: Ref. 1 - 51

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

D138995

MAST ASSEMBLY

- forklift, 8.5 m (28 foot), with 25 mm (1 inch) thick back plates, Ref. 38A and 40A, machinery Ref., order from machinery price list, Includes: Ref. 1 - 51

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

N8802

FRAME ASSY

FRAME ASSEMBLY - mast, outer, Includes: Ref. 2 and 3

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

2

D55411

STRIP

PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long

2шт.

3

D55409

STRIP

PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long

4шт.

4

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex, 7/16 NC x 6 inch, plated

1шт.

5

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, parts list Figure 8-34

1шт.

7

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket, self-locking, 1/2 NF x 2 inch

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

D55401

FRAME

ASSEMBLY - mast, center, Includes: Ref. 10 - 13

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

10

D55412

STRIP

PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long

2шт.

11

D55410

STRIP

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

12

D55411

STRIP

PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long

2шт.

13

D55409

STRIP

PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long

4шт.

14

D55402

FRAME

ASSEMBLY - mast, inner, Includes: Ref. 15 and 16

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

15

D27362

WEAR PAD

PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long

2шт.

16

D27365

PAD

PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long

4шт.

17

425-1116

NUT,1"-14, G5

- hex, 1 inch NF

4шт.

18

N6877

BOLT

BOLT - eye, 1 inch NF

2шт.

19

N6878

CHAIN LINK

LINK ASSEMBLY - master, chain, Includes: Ref. 20

4шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

21

D55397

CHAIN (AG)

CHAIN - rollerless, #105, 115 links

2шт.

22

425-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, plated

4шт.

23

N6011

BOLT

BOLT - eye, 3/4 inch NF, for service order both N6011 bolt and N6010 link, Ref. number 25.

2шт.

24

N6010

LINK,50.749mm Pitch

ASSEMBLY - master, chain, Includes: Ref. 25

4шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

26

D55398

CHAIN (CE)

CHAIN - rolerless, #85, 137 links

2шт.

27

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

28

N7324

KIT

PIN ASSEMBLY - guide wheel

2шт.

29

D36582

WASHER

- thrust, roller

4шт.

30

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - chain guide

2шт.

31

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

32

D87070

PIN

- wheel, service, includes grease fitting, not required, Includes: Ref. 33

2шт.

33

211-1006

BALL,3/16" Dia

- chorme alloy steel, 3/16 inch, grade 24, if used, not shown

1шт.

34

60944

THRUST WASHER

- thrust, roller

4шт.

35

D87069

SPROCKET ASSY.

WHEEL - chain guide, sealed

2шт.

36

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket, 1/2 NC x 1-3/4 inch, used with 19 mm (3/4 inch) thick back plates, Ref. numbers 38 and 40

16шт.

36

61-832

HEX SOC SCREW,1/2"-13 x 2"

BOLT - hex socket, 1/2 NC x 2 inch, used with 25 mm (1 inch) thick back plates, Ref. numbers 289A and 40A

16шт.

37

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC, plated

16шт.

38

D47875

LARGE PLATE

PLATE - backing, upper, 19(3/4) thick x 1219 mm (48 inch) wide

1шт.

38a

D74406

LARGE PLATE

PLATE - backing, upper, 25 (1) thick x 1524 mm (60 inch) wide

1шт.

39

38-32832

PIN,7/16" x 2", Coiled

2шт.

40

D47876

LARGE PLATE

PLATE - backing, lower, 19(3/4) thick x 1219 mm (48 inch) wide

1шт.

40a

D74405

PLATE

- backing, lower, 25 (1) thick x 1524 mm (60 inch) wide

1шт.

41

N8805

SUPPORT ASSY.

CARRIAGE ASSEMBLY- mast, right-hand, Includes: Ref. 42

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

42

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

43

N8806

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, left-hand, Includes: Ref. 44

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

44

D55407

WEAR PAD

PLATE - wear, bronze, 14.29 (9/16) x 26.99 (1-1/16) x 63.5 mm (2-1/2 inch)

2шт.

45

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

46

83-45044

SET SCREW,Hex Soc, 1/2"-13 x 2 3/4"

SCREW - set, hex socket headless, 1/2 NC x 2-3/4 inch

4шт.

47

D86606

AXLE

PIN ASSEMBLY - carriage roller, includes grease fitting not required, Includes: Ref. 48

4шт.

48

211-1006

BALL,3/16" Dia

- chrome alloy stel, 3/16 inch, grade 24, if used, not shown

1шт.

49

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

BEARING - carriage roller

4шт.

50

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 2.8 mm (7/64 inch) thick

8шт.

51

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

- thrust, 32 (1-1/4) x 70 (2-3/4) x 6.35 mm (1/4 inch) thick

4шт.
