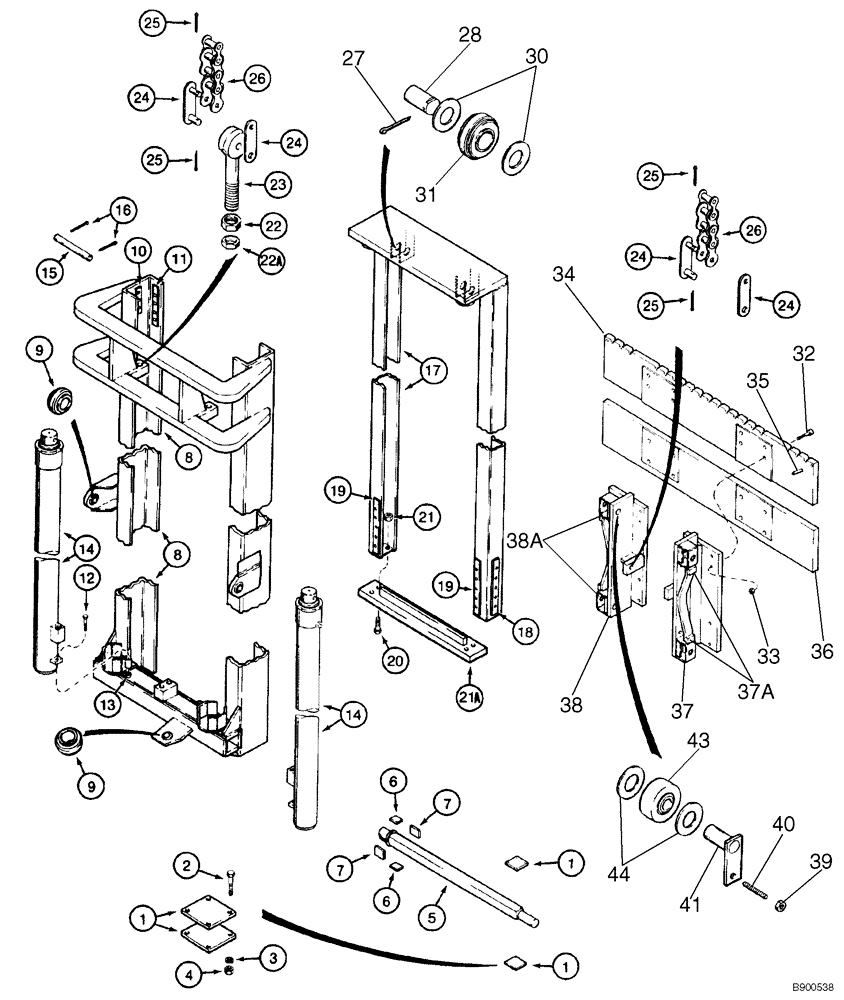

Запчасти Case 584E (9-012) - 4.3 M (14-1/4 FOOT) MAST FOR 584E, MODELS WITH DUAL LIFT CYLINDERS, WITH 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS

D146696

MAST ASSEMBLY

- forklift, 4.3 m (14-1/4 foot), machinery Ref., order from machinery price list, no longer available as an assembly, Includes: Ref. 1 - 44

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

D88745

LARGE PLATE

PLATE - trunnion bar end (Replaces plate D142420)

4шт.

2

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

8шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

5

D75934

BAR

- trunnion

1шт.

6

D40841

LARGE PLATE

PLATE - wear, 50 (1-61/64) x 51 (2) x 6.4 mm (1/4 inch), horizontal

4шт.

7

D40840

LARGE PLATE

PLATE - wear, 62.3 (2-29/64) x 51 (2) x 6.4 mm (1/4 inch), vertical

4шт.

246658A1

FRAME ASSY

FRAME ASSEMBLY - mast, outer (Replaces frame assembly D147643), Includes: Ref. 8 - 11

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

8

NSS

NOT SOLD SEPARAT

FRAME - outer, order frame assembly 246658A1

1шт.

9

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning

3шт.

10

D32555

PAD

PLATE - wear, 3 (1/8) thick x 127 mm (5 inch) long

2шт.

11

D142513

STRIP

PLATE - wear, 5 (3/16) x 178 mm (7 inch) long

4шт.

12

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

13

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, 76 (3) ID x 2159 mm (85 inch) stroke, see Figure 8-36 for correct assembly

2шт.

15

D142413

PIN

- cylinder mounting

2шт.

16

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

4шт.

D142421

FRAME ASSY

FRAME ASSEMBLY - mast, inner (Replaces frame assembly D142469), Includes: Ref. 17 - 21A

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME - inner, order frame assembly

1шт.

18

60972

STRIP

PLATE - wear, 3 (1/8) thick x 279 mm (11 inch) long

2шт.

19

D36586

PLATE

- wear, 5 (3/16) thick x 279 mm (11 inch) long

4шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

21a

D145105

TRUSS ROD

PLATE - base, inner frame, lower

1шт.

22

425-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF

2шт.

22a

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

2шт.

23

N6011

BOLT

BOLT - eye, 3/4 inch NF

2шт.

24

N6010

LINK,50.749mm Pitch

ASSEMBLY - master, chain, Includes: Ref. 25 and 26

4шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

26

D142417

CHAIN (AG)

CHAIN - rollerless, #85, 103 links

2шт.

27

432-1232

COTTER PIN,3/16" OD x 2" L

Includes: Ref. 29 3/16" x 2"

2шт.

28

D87070

PIN

- wheel, sheave, service, includes grease fitting not required, Includes: Ref. 29

2шт.

29

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

2шт.

30

60944

THRUST WASHER

- thrust

4шт.

31

D87069

SPROCKET ASSY.

WHEEL - chain guide, sealed

2шт.

32

461-35032

HEX SOC SCREW,1/2"-13 x 2"

BOLT - hex socket, 1/2 NC x 2 inch

16шт.

33

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

16шт.

34

D142364

PLATE

- backing, carriage, upper, 25 mm (1 inch) thick

1шт.

35

38-32832

PIN,7/16" x 2", Coiled

2шт.

36

D142363

PLATE

- backing, carriage, lower, 25 mm (1 inch) thick

1шт.

37

D142422

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, right-hand, Includes: Ref. 37A

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

37a

N7958

PLATE

- wear, bronze

2шт.

38

D142423

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, left-hand, Includes: Ref. 38A

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

38a

N7958

PLATE

- wear, bronze

2шт.

39

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

40

83-45048

SET SCREW,Hex Soc, 1/2"-13 x 3"

SCREW - set, hex socket headless, 1/2 NC x 3 inch, oval point

4шт.

41

D86604

AXLE

PIN ASSEMBLY - roller, service, includes grease fitting not required (Replaces pin assembly D47899), Includes: Ref. 42

4шт.

42

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

4шт.

43

D47894

ROLLER BEARING,25.39mm ID x 63.5mm OD x 32.26mm W

ROLLER - load

4шт.

44

60917

THRUST WASHER

WASHER - thrust, roller

8шт.
