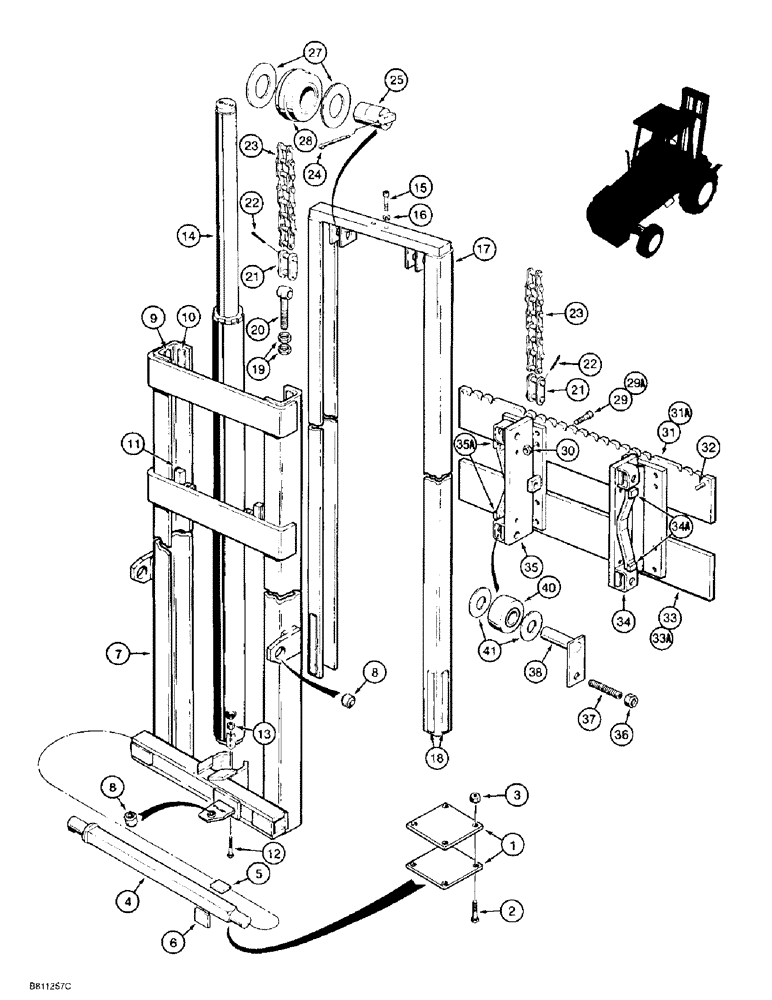

Запчасти Case 584E (9-004) - 4.3 M (14-1/4 FOOT) MAST FOR 584E, MODELS WITH SINGLE LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

D121915

MAST ASSEMBLY

- forklift, 4.3 m (14-1/4 foot), with 19 mm (3/4 inch) thick back plates Ref. 31 and 33, machinery Ref., order from machinery price list, no longer available as an assembly, Includes: Ref. 1 - 41

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

D138993

MAST ASSEMBLY

- forklift, 4.3 m (14-1/4 foot), with 25 mm (1 inch) thick back plates Ref. 31A and 33A, machinery Ref., order from machinery price list, Includes: Ref. 1 - 41

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

1

D88745

LARGE PLATE

PLATE - trunnion bar end

4шт.

2

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

8шт.

3

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

4

D75934

BAR

- trunnion

1шт.

5

D40841

LARGE PLATE

PLATE - wear, 50 (1-61/64) x 51 (2) x 6.4 mm (1/4 inch), horizontal

4шт.

6

D40840

LARGE PLATE

PLATE - wear, 62.3 (2-29/64) x 51 (2) x 6.4 mm (1/4 inch), vertical

4шт.

7

D75936

CHANNEL

FRAME ASSEMBLY - mast, outer, Includes: Ref. 8 - 11

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

8

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning

3шт.

9

D32555

PAD

PLATE - wear, 3 (1/8) thick x 127 mm (5 inch) long

2шт.

10

D27366

WEAR PAD

PLATE - wear, 3 (1/8) thick x 178 mm (7 inch) long

4шт.

11

D47895

WEAR PAD

PLATE - wear 5 (3/16) thick x 114 mm (4-1/2 inch) long

2шт.

12

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex, 7/16 NC x 6 inch

1шт.

13

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, see Figure 8-34 for correct assembly

1шт.

15

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket, self-locking, 1/2 NF x 2 inch

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

D77580

FRAME

ASSEMBLY - mast, inner, Includes: Ref. 18

1шт.

For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.

1шт.

18

60972

STRIP

PLATE - wear, 3 (1/8) thick x 279 mm (11 inch) long

6шт.

19

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

4шт.

20

N6012

BOLT

BOLT - eye, 1/2 inch NF

2шт.

21

N6010

LINK,50.749mm Pitch

ASSEMBLY - master, chain, Includes: Ref. 22

4шт.

22

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

23

D34446

CHAIN

- rollerless, #85, 113 links

2шт.

24

432-1232

COTTER PIN,3/16" OD x 2" L

Includes: Ref. 26 3/16" x 2"

2шт.

25

D87070

PIN

- wheel, service, includes grease fitting not required, Includes: Ref. 26

2шт.

26

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

2шт.

27

60944

THRUST WASHER

- thrust, wheel

4шт.

28

D87069

SPROCKET ASSY.

WHEEL - chain guide, sealed

2шт.

29

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket, 1/2 NC x 1-3/4 inch, used with 19 mm (3/4 inch) thick back plates, Ref. number 31 and 33

16шт.

29a

61-832

HEX SOC SCREW,1/2"-13 x 2"

BOLT - hex socket, 1/2 NC x 2 inch, used with 25 mm (1 inch) thick back plates, Ref. number 31A and 33A

16шт.

30

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

16шт.

31

D47875

LARGE PLATE

PLATE - backing, upper, 19 (3/4) thick x 1219 mm (48 inch) wide

1шт.

31a

D142364

PLATE

- backing, carriage, upper, 25 mm (1 inch) thick

1шт.

32

38-32832

PIN,7/16" x 2", Coiled

2шт.

33

D47876

LARGE PLATE

PLATE - backing, lower, 19 (3/4) thick x 1219 mm (48 inch) wide

1шт.

33a

D142363

PLATE

- backing, carriage, lower, 25 mm (1 inch) thick

1шт.

34

D47901

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, right-hand, Includes: Ref. 34A

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

34a

N7958

PLATE

- wear, bronze, bronze

2шт.

35

D47902

SUPPORT ASSY.

CARRIAGE ASSEMBLY - mast, left-hand, Includes: Ref. 35A

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

35a

N7958

PLATE

- wear, bronze, bronze

2шт.

36

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

37

83-45048

SET SCREW,Hex Soc, 1/2"-13 x 3"

SCREW - set, hex socket headless, 1/2 NC x 3 inch, oval point

4шт.

38

D86604

AXLE

PIN ASSEMBLY - roller, service, includes grease fitting not required

4шт.

39

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, if used, not shown

4шт.

40

D47894

ROLLER BEARING,25.39mm ID x 63.5mm OD x 32.26mm W

ROLLER - load

4шт.

41

60917

THRUST WASHER

WASHER - thrust, roller

8шт.
