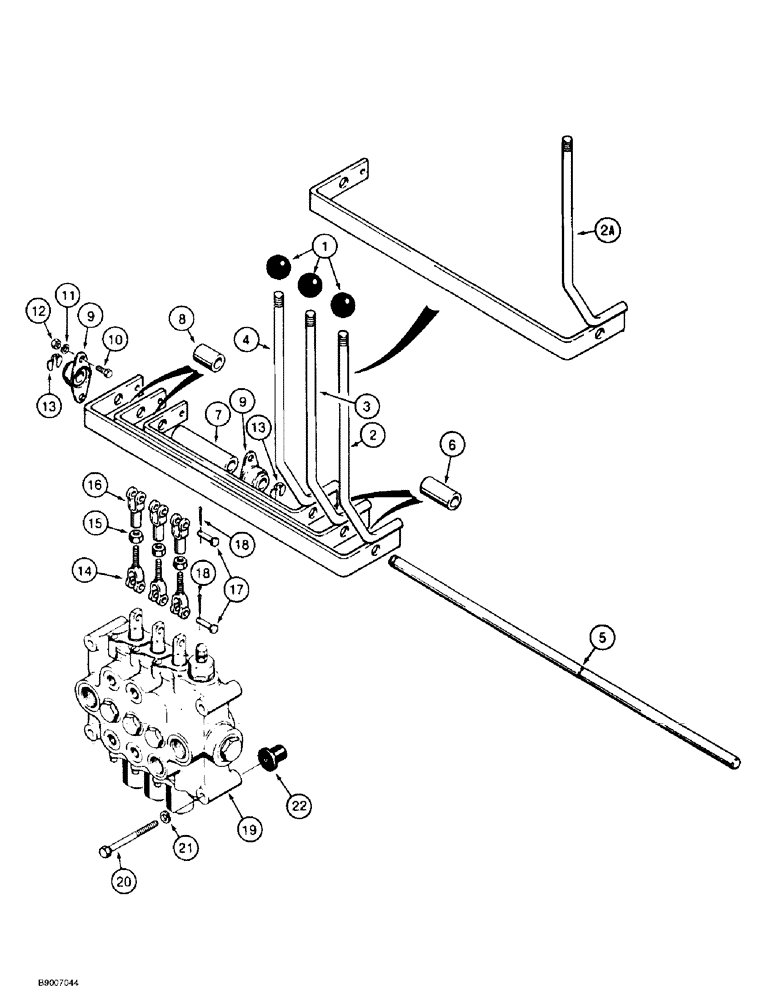

Запчасти Case 584E (9-002) - FORKLIFT CONTROL LEVERS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

- lever

3шт.

2

D72071

LEVER

- control, sideshift, models with single and dual lift cylinders without 31 degree forward mast tilt, no longer available, order lever D146670 Ref. 2A

1шт.

2a

D146670

LEVER ASSY.

LEVER - control, sideshift, models with dual lift cylinders with 31 degree forward mast tilt

1шт.

3

D72070

LEVER

- control, tilt

1шт.

4

D72069

LEVER

- contol, lift

1шт.

5

D68519

SHAFT

- pivot

1шт.

6

D68524

SPACER

- bushing, control lever

2шт.

7

D68523

SPACER

- bushing, control lever

1шт.

8

D46080

SPACER

- bushing, control lever

2шт.

9

L15401

BEARING,15.89mm ID

- pivot, self-aligning, 5/8 inch

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

13

D95096

SNAP RING,M15.88 x 1.27mm Thk

- retaining

2шт.

14

D68186

YOKE

CLEVIS - special, male, 5/16 inch NF

3шт.

15

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

3шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF, plated metal, Replaces fiberglass clevis on some models

3шт.

17

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

6шт.

18

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

6шт.

19

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, forklift, parts list Figure 8-28 and 8-30

1шт.

20

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

D75755

ISOLATOR

INSULATOR - rubber, valve mounting

3шт.
