Запчасти Case 584E (2-08) - AIR CLEANER AND AIR INTAKE PARTS, P.I.N. JJG0251722 AND AFTER (02) - ENGINE

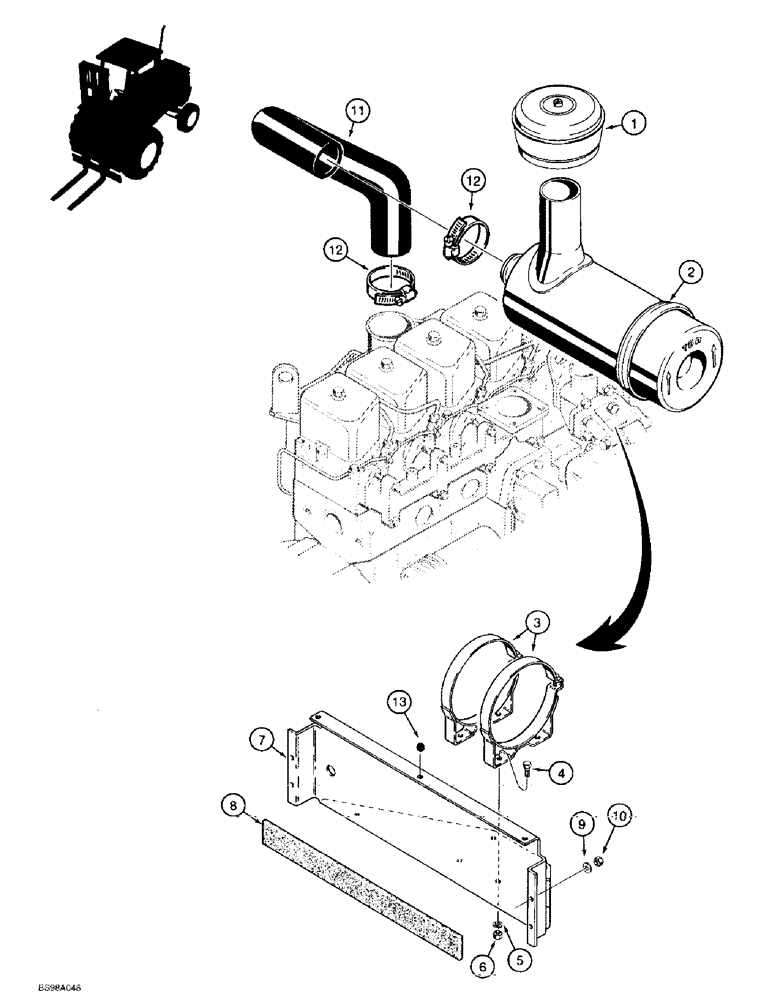

Схема запчастей Case 584E - (2-08) - AIR CLEANER AND AIR INTAKE PARTS, P.I.N. JJG0251722 AND AFTER (02) - ENGINE
7
3
6
8
9
1
5
2
4
11
12
10
13
12

Артикул

Название

Примечание

Количество

1

193867A1

PRECLEANER

ASSEMBLY - air, parts list Figure 2-10

1шт.

2

293568A1

AIR CLEANER

CLEANER ASSEMBLY - air, engine, parts list Figure 2-10

1шт.

3

L113910

CLAMP

- air cleaner mounting, includes hardware

2шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

D132951

BRACKET

- air cleaner mounting

1шт.

8

REF

INSTRUCTION

PAD - foam seal, 498 mm (19-5/8 inch) long, cut from D86157 bulk pad, see below

1шт.

9

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

4шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

11

279244A1

HOSE ASSY.

HOSE - air, Serial Range: cleaner,-manifold

1шт.

12

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia, hose to air cleaner

2шт.

13

L60224

BUMPER

- rubber, for hood

3шт.

D86157

RUBBER

STRIP - sponge rubber, 6 (1/4) x 100 (4) x 590 mm (23-1/4 inch) long

1шт.

Выбрано товаров: 14
