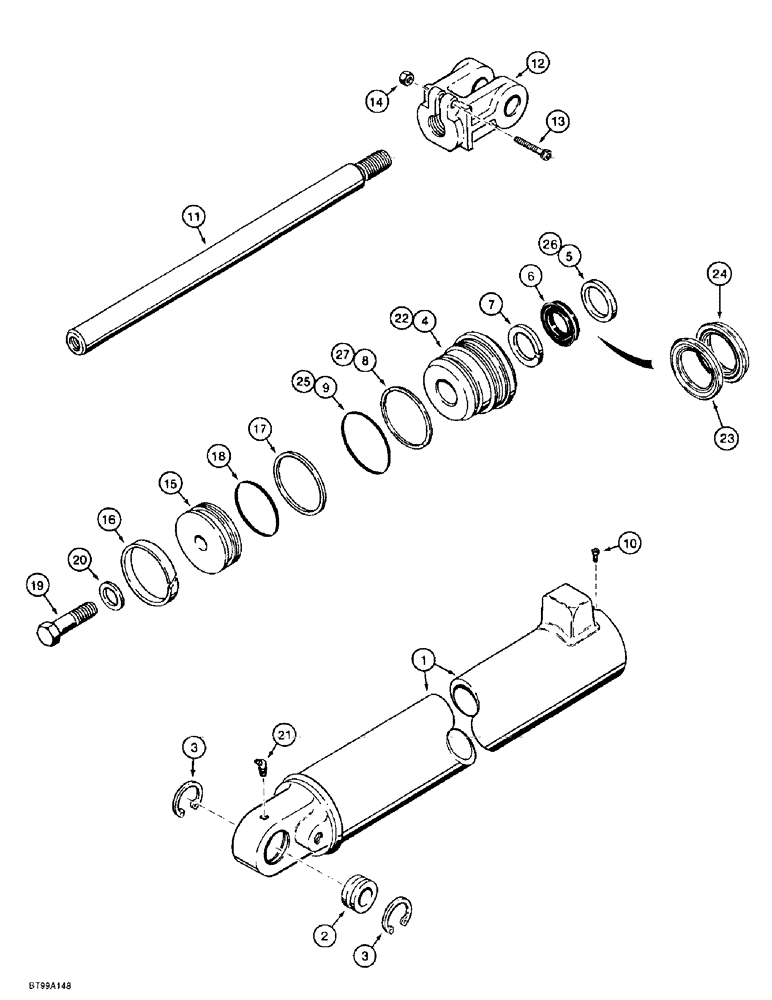

Запчасти Case 584E (8-44) - TILT CYLINDERS, MODELS WITH DUAL LIFT CYLINDERS, WITH 31 DEGREE FORWARD MAST TILT (08) - HYDRAULICS

1343763C1

JACK BODY

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 381 mm (15 inch) stroke, tilt, left-hand, Includes: Ref. 1 - 27

1шт.

1343764C1

JACK BODY

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 381 mm (15 inch) stroke, tilt, right-hand, Includes: Ref. 1 - 27

1шт.

1343765C1

TUBE

ASSEMBLY - cylinder, left-hand, Includes: Ref. 1 - 3

1шт.

1343766C2

TUBE

ASSEMBLY - cylinder, right-hand, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, right-hand, order tube assembly 1343766C2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, left-hand, not shown, order cylinder assembly 1343765C1

1шт.

2

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - tube eye

1шт.

3

100-21162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

1343775C1

GLAND

ASSEMBLY - cylinder, no longer available, order 1343772C1 gland, Ref. 22, and 1986524C2 seal kit, Includes: Ref. 4 - 9

1шт.

For identification purposes, Ref. 22, 1343772C1 gland has a groove on the outside rim around the wiper. Ref. 4, NSS gland does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder, order gland assembly

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 1986524C2

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- U-cup, piston rod, wide, used with 1343775C1 gland assembly

1шт.

For identification purposes, Ref. 22, 1343772C1 gland has a groove on the outside rim around the wiper. Ref. 4, NSS gland does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

7

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, narrow, used with 1343775C1 gland assembly

1шт.

For identification purposes, Ref. 22, 1343772C1 gland has a groove on the outside rim around the wiper. Ref. 4, NSS gland does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N 1986524C2

1шт.

9

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

Gland -233, 70 Duro, 2.859" ID x .139" Thk

1шт.

Part of seal kit P/N 1986524C2

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

113977A1

ROD

- piston, 32 mm (1-1/4 inch) diameter (Replaces rod 1343770C1)

1шт.

12

G34262

CLEVIS,1" - 12

- adjustable, piston rod, Includes: Ref. 13 and 14

1шт.

13

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

G32093

JACK PISTON

PISTON - cylinder

1шт.

16

S109445

RING,82.55mm OD, Ext

- wear, piston

1шт.

Part of seal kit P/N 1986524C2

1шт.

17

G32091

SEALING RING

- piston

1шт.

Part of seal kit P/N 1986524C2

1шт.

18

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

Piston -232, 70 Duro, 2.734" ID x .139" Thk

1шт.

Part of seal kit P/N 1986524C2

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 22 - 27

1шт.

22

1343772C1

GLAND

- cylinder, uses Ref. 23 and 24 seals

1шт.

For identification purposes, Ref. 22, 1343772C1 gland has a groove on the outside rim around the wiper. Ref. 4, NSS gland does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1542873C1

PACKAGE

KIT - seal, NSS, order 1986524C2 seal kit, Includes: Ref. 23 and 24

1шт.

Part of seal kit P/N 1986524C2

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - rod, order 1986524C2 seal kit

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - buffer, order 1986524C2 seal kit

1шт.

25

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1986524C2

1шт.

26

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 1986524C2

1шт.

27

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N 1986524C2

1шт.

1986524C2

SEAL KIT

KIT - seal, Includes Ref. 5, 8, 9, 16 - 18, P/N 1542873C1, and 25 - 27

1шт.
