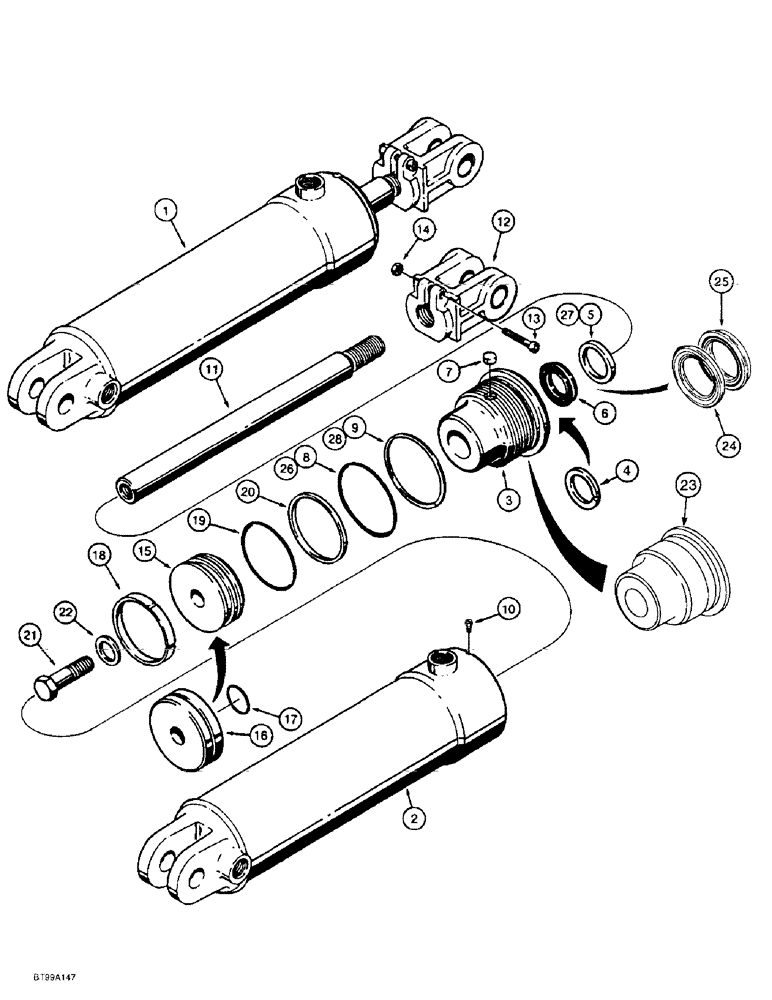

Запчасти Case 584E (8-43) - TILT CYLINDERS, MODELS WITH SINGLE OR DUAL LIFT CYLINDERS, WITHOUT 31 DEGREE FORWARD MAST TILT (08) - HYDRAULICS

1

G34196

CYLINDER

- 76 (3) ID x 254 mm (10 inch) stroke, left-hand

1шт.

1

G34197

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 254 mm (10 inch) stroke, right-hand, Includes: Ref 2 - 28

1шт.

2

G34198

TUBE,16.69" L

- cylinder, left-hand

1шт.

2

G34199

TUBE,16.69" L

- cylinder, right-hand

1шт.

G104244

GLAND

ASSEMBLY - cylinder, uses Ref. 4 and 6, seals, no longer available, order gland 1543162C1, Ref. 23, and 1543318C2 seal kit, Includes: Ref. 3 - 9

1шт.

For identification purposes, Ref. 23, 1543162C1 gland has a groove on the outside rim around the wiper. G104244 gland assembly does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder, order assembly G104244

1шт.

4

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, narrow, used with G104244 gland

1шт.

For identification purposes, Ref. 23, 1543162C1 gland has a groove on the outside rim around the wiper. G104244 gland assembly does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N 1543318C2

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 1543318C2

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- U-cup, piston rod, wide, used with G104244 gland

1шт.

For identification purposes, Ref. 23, 1543162C1 gland has a groove on the outside rim around the wiper. G104244 gland assembly does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

6

G100775

SEAL

- U-cup, piston rod, service option, used in extreme hot or cold, used with G104244 gland, if used

1шт.

For identification purposes, Ref. 23, 1543162C1 gland has a groove on the outside rim around the wiper. G104244 gland assembly does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

7

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

8

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1543318C2

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N 1543318C2

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

113978A1

STEM

ROD - piston, 32 mm (1-1/4 inch) (Replaces rod G34195)

1шт.

12

G34262

CLEVIS,1" - 12

- adjustable, piston rod, Includes: Ref 13 and 14

1шт.

13

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

G34202

PISTON

- cylinder, double groove; no longer available, order single-grooved piston G104106 below

1шт.

16

G104106

PISTON

- cylinder, single-groove

1шт.

17

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk, Used with Ref. 16 only

1шт.

Part of seal kit P/N 1543318C2

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston, used with Ref. 15 only

1шт.

Part of seal kit P/N 1543318C2

1шт.

19

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1543318C2

1шт.

20

G32034

RING

- backup, piston O-ring

1шт.

Part of seal kit P/N 1543318C2

1шт.

21

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

22

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, if used, Includes: Ref. 23 - 28

1шт.

For identification purposes, Ref. 23, 1543162C1 gland has a groove on the outside rim around the wiper. G104244 gland assembly does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

23

1543162C1

GLAND

- cylinder, used Ref. 24 and 25 seals

1шт.

For identification purposes, Ref. 23, 1543162C1 gland has a groove on the outside rim around the wiper. G104244 gland assembly does not have a groove. The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1542873C1

PACKAGE

KIT - seal, NSS, order 1543318C2 seal kit, Includes: Ref. 24 and 25

1шт.

Part of seal kit P/N 1543318C2

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rod, order 1543318C2 seal kit

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - buffer, order 1543318C2 seal kit

1шт.

26

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N 1543318C2

1шт.

27

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N 1543318C2

1шт.

28

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N 1543318C2

1шт.

1543318C2

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 8, 9, 17 - 20, and 24 - 28

1шт.
