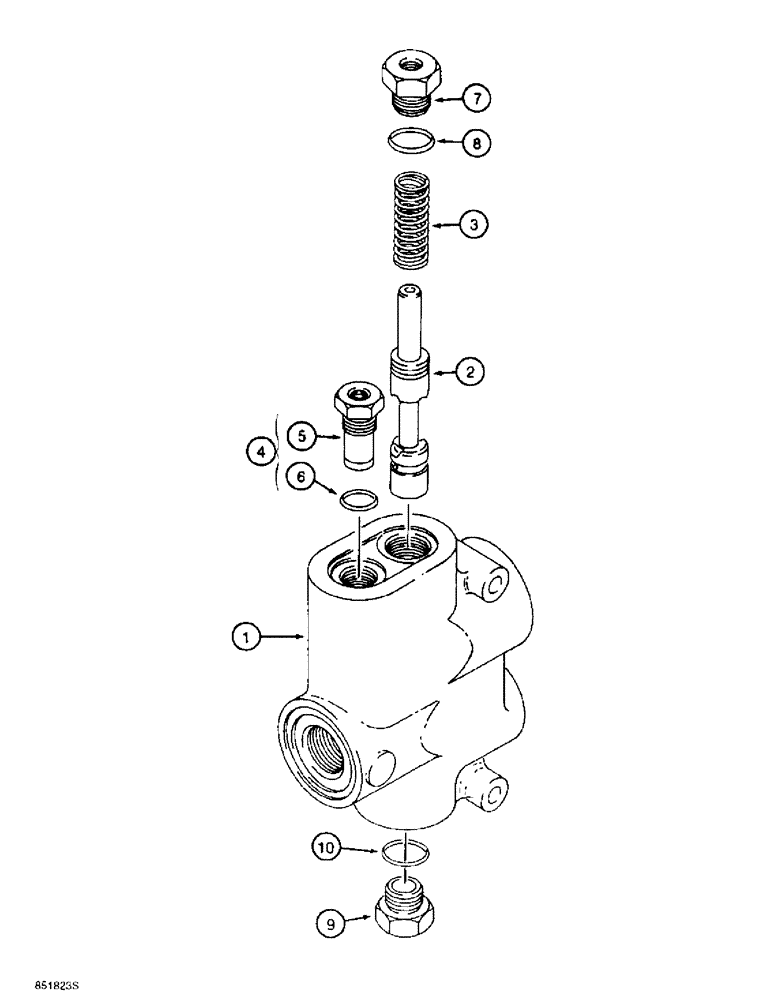

Запчасти Case 584E (8-26) - FLOW CONTROL VALVE (08) - HYDRAULICS

D132476

VALVE

ASSEMBLY - flow control, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - flow control valve, order valve assembly D132476

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve, order valve assembly D132476

1шт.

3

D82777

SPRING

- centering

1шт.

4

N7163

CARTRIDGE

VALVE ASSEMBLY - relief, flow control valve, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve, order valve assembly N7163

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

S114009

PLUG

- flow control valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
