Запчасти Case 584E (2-07) - AIR CLEANER AND AIR INTAKE PARTS, PRIOR TO P.I.N. JJG0251722 (02) - ENGINE

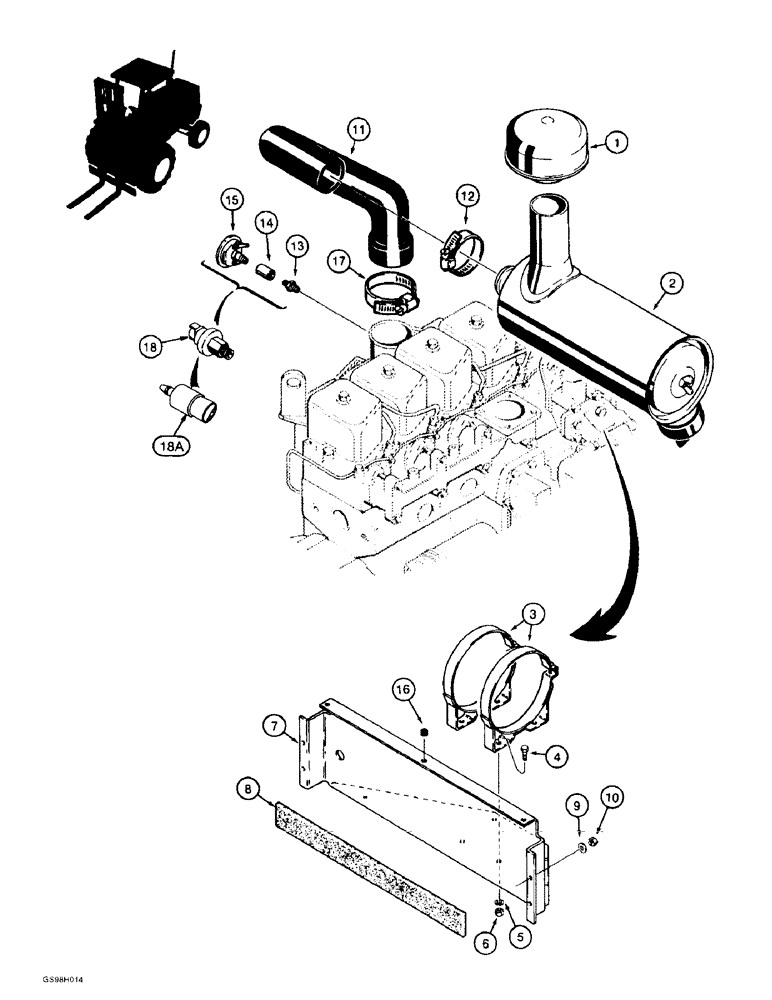

Схема запчастей Case 584E - (2-07) - AIR CLEANER AND AIR INTAKE PARTS, PRIOR TO P.I.N. JJG0251722 (02) - ENGINE
14
17
12
7
9
16
1
15
18a
8
5
13
2
10
6
3
4
18
11

Артикул

Название

Примечание

Количество

1

A61277

CAP

- air cleaner

1шт.

2

A170974

AIR CLEANER

- engine, parts list see Figure 2-9

1шт.

3

L113910

CLAMP

- air cleaner mounting, includes hardware (replaces L11247)

2шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

D132951

BRACKET

- air cleaner mounting

1шт.

8

REF

INSTRUCTION

PAD - foam seal, 498 mm (19-5/8 in) long, cut from D86157 bulk, see below

1шт.

9

495-81001

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16

4шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT ASSY. - hex, self-locking, 5/16 inch NC

4шт.

11

D132286

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

- Air Cleaner - To Manifold 63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

12

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj., Hose to air cleaner #44, 2.31/3.25 Type F Worm

1шт.

13

D36264

FITTING

ADAPTER - adapter, air restrictor indicator, use with Ref. 15 sender only

1шт.

14

221-1335

COUPLING,Pipe, 1/8" NPT

Use with Ref 15 sender only Pipe, 1/8" NPT

1шт.

15

L103131

INDICATOR

SENDER - air filter, no longer available, order Ref. 18 sender for service

1шт.

16

L60224

BUMPER

- rubber, for hood

3шт.

17

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia., hose to manifold

1шт.

18

1983233C1

RESTRICTION SWITCH

SWITCH - restrictor, air cleaner, if used

1шт.

18a

292950A1

SWITCH

- restriction, if used

1шт.

D86157

RUBBER

STRIP - sponge, 6 (1/4) x 100 (4) x 590 mm (23-1/4 inch) long

1шт.

Выбрано товаров: 20
