Запчасти Case 584E (2-06) - RADIATOR ASSEMBLY, P.I.N. JJG0251722 AND AFTER (02) - ENGINE

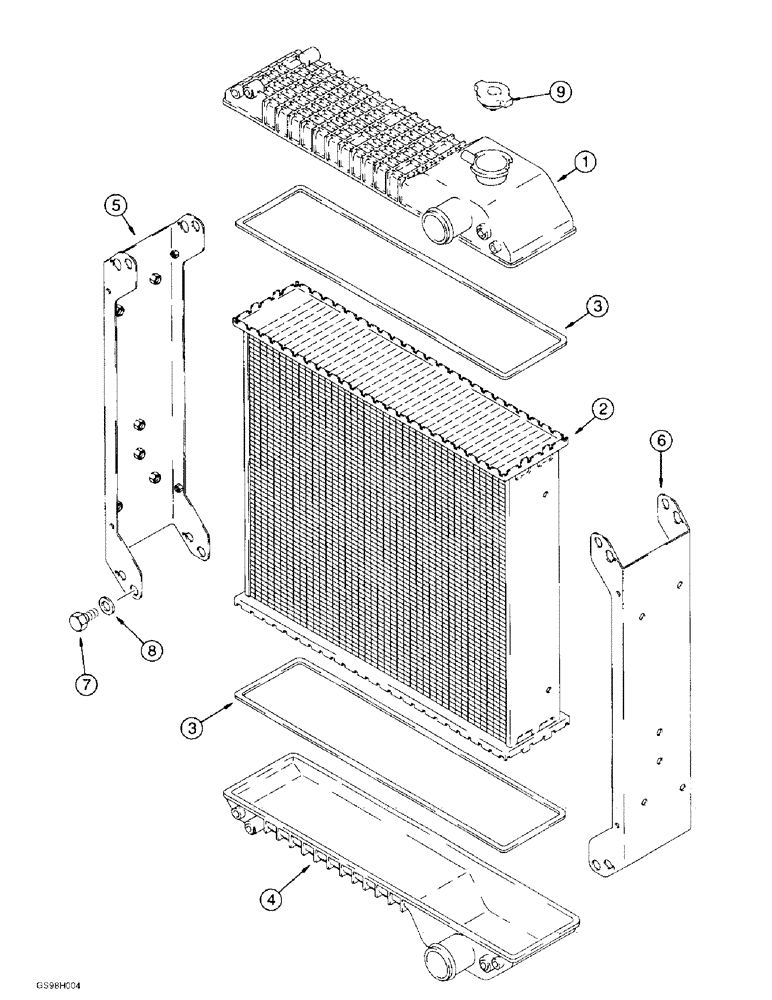

Схема запчастей Case 584E - (2-06) - RADIATOR ASSEMBLY, P.I.N. JJG0251722 AND AFTER (02) - ENGINE
5
3
3
2
6
9
8
1
7
4

Артикул

Название

Примечание

Количество

234876A1

RADIATOR

ASSEMBLY - engine coolant, Includes: Ref. 1 - 10

1шт.

1

175161A1

TANK

TANK - upper

1шт.

2

181148A1

CORE

CORE - radiator, 4 row

1шт.

3

175163A1

GASKET,3.3mm Thk

- core, upper and lower

2шт.

4

175162A1

RESERVOIR

TANK - lower

1шт.

5

175164A1

SUPPORT

BRACKET - left-hand, radiator

1шт.

6

175165A1

SUPPORT

BRACKET - right-hand, radiator

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, side channel brackets, not shown

2шт.

Выбрано товаров: 11
