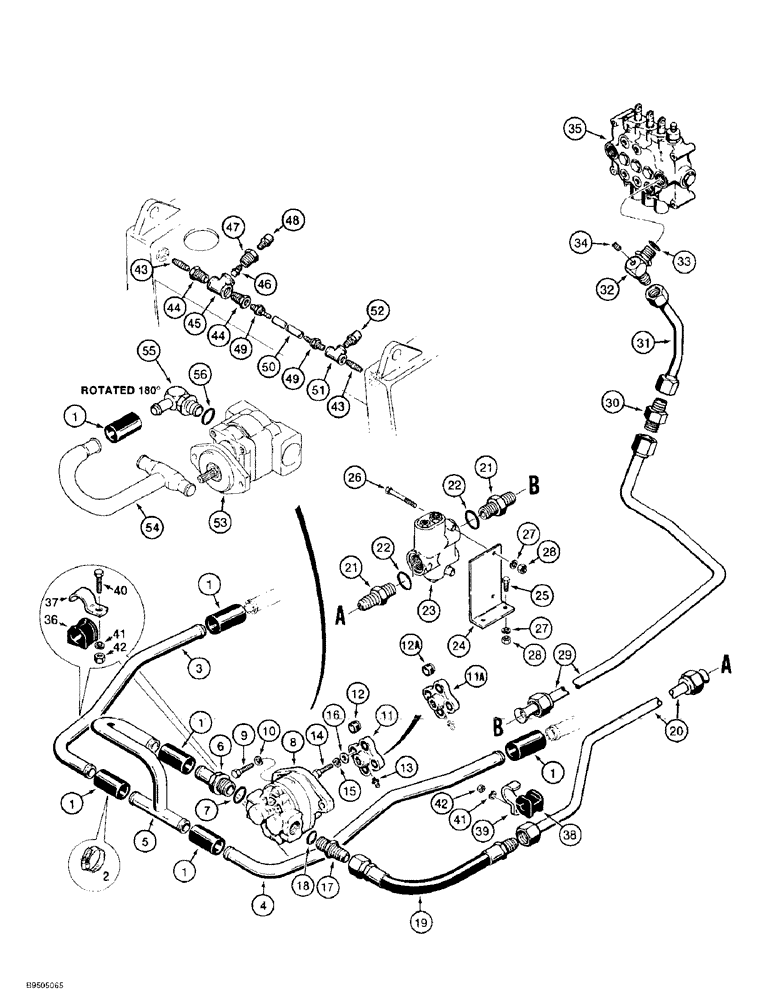

Запчасти Case 584E (8-02) - FORKLIFT HYDRAULIC CIRCUIT, RESERVOIR TO CONTROL VALVE (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

HOSE - suction tube to suction tube, 102 mm (4 inch) long, cut from S118465X bulk hose, see below

5шт.

2

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

10шт.

3

D65659

TUBE

- suction, left-hand

1шт.

4

D65670

TUBE

- suction, right-hand

1шт.

5

D147672

TUBE

- manifold, suction, used with D73079 pump assembly only

1шт.

5

116710A1

TUBE

- manifold suction, used with 102480A1 pump assembly only

1шт.

6

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-1/4 stem end x 1-5/8-12 inch O-ring boss, used with D73079 pump assembly only

1шт.

6

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Used with 102480A1 pump assembly only, Includes Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

D73079

PUMP

ASSEMBLY - hydraulic equipment, parts list Figure 8-24, no longer available, for service order pump 102480A1 pump, 116710A1 tube and 217-355 elbow, Ref. 53 - 55 on Figure 8-4

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

D90883

SPLINED COUPLING

COUPLING - flexible, no longer used, order D140524 coupling, Ref. 11A

1шт.

11a

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible, Includes: Ref. 12 - 13

1шт.

12

A45216

BUSHING

- coupling, used with D90883 coupling, no longer available, order bushing D142330 below

4шт.

12a

D142330

BUSHING

- coupling, used with D140524 coupling

4шт.

13

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch, used with D90883 or D140524 coupling

1шт.

14

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- special, hardened

4шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

19

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

- 508 mm (20 inch) long

1шт.

20

D134277

TUBE ASSY.

TUBE - pressure, to priority valve

1шт.

21

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 22

2шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

23

D132476

VALVE

ASSEMBLY - flow control, parts list Figure 8-26

1шт.

24

D134282

ANGLE

BRACKET - mounting, valve

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

26

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

2шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

D135127

TUBE ASSY.

TUBE - pressure, flow control valve to control valve

1шт.

30

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, 1-5/16-12 flare x 1-1/16-12 inch flare

1шт.

31

D75064

HYD TUBE,0.75" OD x 3.95, 9.25" L

TUBE - pressure, at control valve

1шт.

32

R30729

FITTING

ELBOW - 90 degree, adjustable, special, Includes: Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

35

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, forklift, parts list Figure 8-28 and 8-30

1шт.

S118465X

LARGE HOSE

HOSE - bulk, 32 (1-1/4) x 45 (1-3/4) x 4572 mm (180 inch) long

1шт.

36

D67298

INSULATOR

- rubber, suction tubes

2шт.

37

D68845

MOUNTING CLIP

CLAMP - suction tube

2шт.

38

D67297

BLOCK

INSULATOR - rubber, pressure tubes

1шт.

39

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

- pressure tube, (Replaces clamp D68846)

1шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, plated

2шт.

41

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

42

425-106

NUT,3/8"-16, Cl 5

3шт.

43

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - straight, 1/4 PT x 7/8 inch

2шт.

44

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female

2шт.

45

221-441

TEE,1/2" NPT x 3/4 NPT Br

- pipe, 1/2 x 1/2 x 3/4 inch, left-hand side

1шт.

46

D63543

BREATHER

- dipstick tube

1шт.

47

D63506

ADAPTER

- special

1шт.

48

R15538

VALVE

- inlet

1шт.

49

220-502

COUPLING, BREAK AWAY

ADAPTER - straight, 1/4 inch barb end x PT

2шт.

50

REF

INSTRUCTION

HOSE - 6 (1/4) ID x 432 mm (17 inch) long, cut from C18274 hose, see below

1шт.

51

221-430

TEE,1/4" NPT x 1/4 NPT Br

- pipe, 1/4 x 1/4 x 1/8 inch

1шт.

52

D94060

VALVE

- relief, air outlet

1шт.

53

102480A1

PUMP

ASSEMBLY - hydraulic equipment, parts list Figure 8-25A

1шт.

53

102480A1R

REMAN-HYD PUMP

584E, 585E, 586E, All (5/90-)

1шт.

53

102480A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

54

116710A1

TUBE

- manifold, suction

1шт.

55

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Adjustable, Includes Ref. 56

1шт.

56

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

C18274

HOSE

- bulk, 6 (1/4) ID x 1624 mm (60 inch) long, no longer used

1шт.
