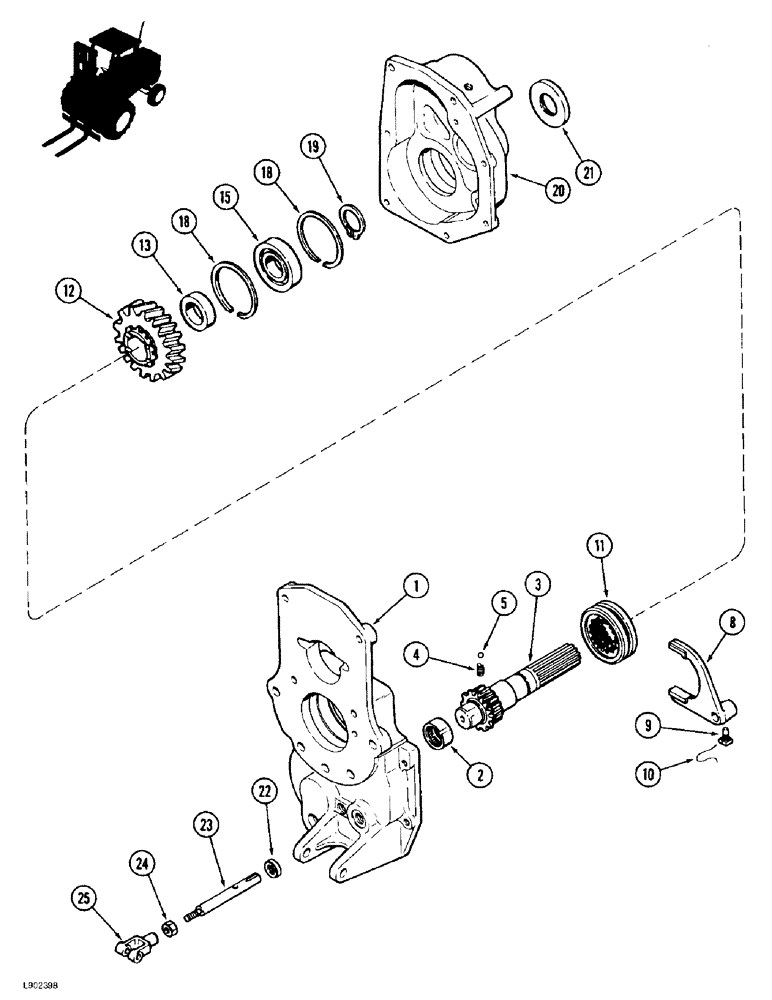

Запчасти Case 584E (6-78) - TRANSAXLE SHIFT MECHANISM AND OUTPUT SHAFT, 4 WHEEL DRIVE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - transfer gearbox, see Figure 6-74

1шт.

2

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, output shaft, rear

1шт.

3

A156220

SHAFT

- output

1шт.

4

A156269

SPRING

- compression

3шт.

5

211-1308

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 200

3шт.

8

A51951

FORK

- shifter

1шт.

9

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- shifter fork locking

1шт.

10

A29966

ELECTRICAL WIRE

WIRE - locking, screw to shifter fork

1шт.

11

A182777

GEAR

COLLAR - output shaft

1шт.

12

A182778

GEAR

- output, 19 teeth

1шт.

13

A156278

SPACER

- gear, 0.611 inch

1шт.

13

A156277

SPACER

- gear, 0.616 inch

1шт.

13

A156276

SPACER

- gear, 0.621 inch

1шт.

13

A156250

SPACER

- gear, 0.626 inch

1шт.

15

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING - ball, output shaft, front (Replaces bearing B18215)

1шт.

18

A27579

RING

- snap, to cover retaining

2шт.

19

100-16156

SNAP RING,#156, Ext

Ring, Snap, , Output shaft (Replaces ring A144595) #156, Ext

1шт.

20

REF

INSTRUCTION

COVER - transfer gearbox, see Figure 6-74

1шт.

21

A51948

OIL SEAL

SEAL - output shaft

1шт.

22

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- oil, shift fork (Replaces seal G105700)

1шт.

23

A182790

RAIL

- shift fork (Replaces rail A156259)

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

25

T40057

YOKE

- shifter rail

1шт.

26

A182638

SEAL

- oil, output shaft, not shown

1шт.
