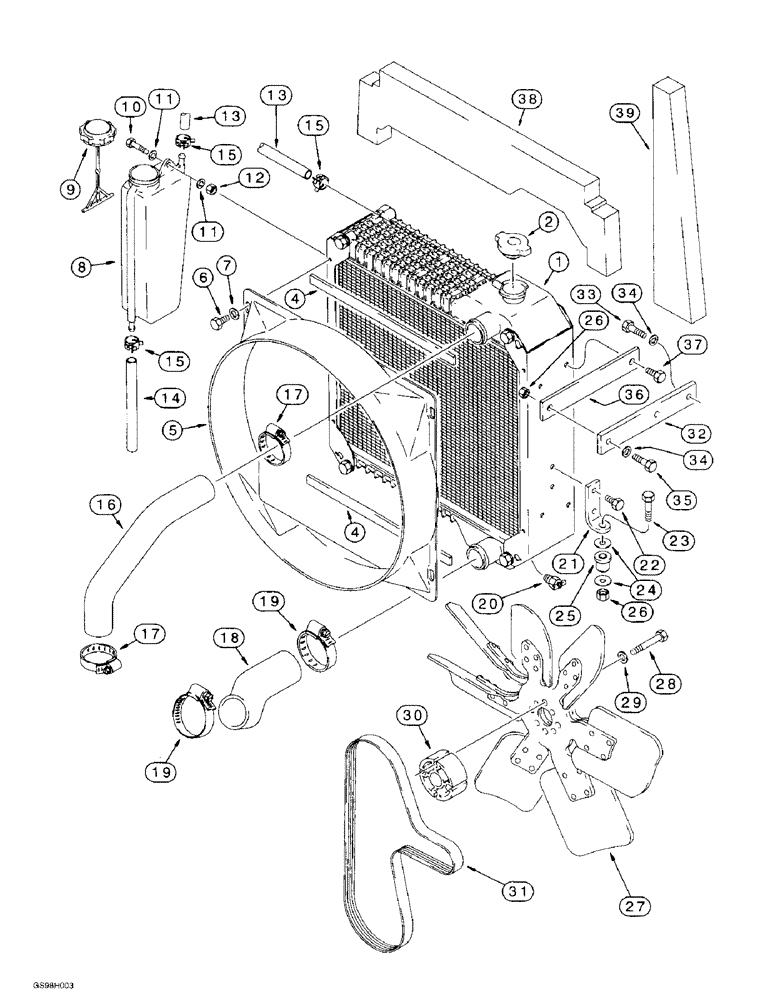

Запчасти Case 584E (2-05) - RADIATOR, FAN AND MOUNTING PARTS, P.I.N. JJG0251722 AND AFTER (02) - ENGINE

1

234876A1

RADIATOR

ASSEMBLY - engine coolant, parts list Figure 2-6, Includes: Ref. 2

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

4

233272A1

SEALING STRIP,20mm W x 404mm L x 6mm Thk

- adhesive-backed, 6 (1/4) x 20 (25/32) x 404 mm (15-29/32 inch) long, radiator to shroud, upper and lower

2шт.

5

186433A1

SHROUD

- fan

1шт.

6

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

- hex, self-locking, 8 - 1.25 x 16 mm, class 10.9

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

131084A1

RESERVOIR

- coolant recovery bottle, Includes: Ref. 9

1шт.

9

1547924C1

CAP

- recovery bottle

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

13

279242A2

HOSE,8.30 mm ID x 515.00 mm, SAE J30, SAE 30R6

8.30 mm ID x 515.00 mm, SAE J30, SAE 30R6

1шт.

14

279242A2

HOSE,8.30 mm ID x 515.00 mm, SAE J30, SAE 30R6

8.30 mm ID x 515.00 mm, SAE J30, SAE 30R6

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, hose, retaining

3шт.

16

232366A1

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4, SAE J20

Upper 45.00 mm ID x 265.00 mm, SAE 20R4, SAE J20

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm

2шт.

18

141513A1

RADIATOR HOSE,58.00 mm ID x 212.00, SAE 20 R4

Lower 58.00 mm ID x 212.00, SAE 20 R4

1шт.

19

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

2шт.

20

217-92

COCK

VALVE - drain, 1/4 inch PT

1шт.

21

279236A2

BRACKET

- radiator mounting, left-hand

1шт.

21a

279237A2

BRACKET

- radiator mounting, right-hand, not shown

1шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

24

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- flat, special

6шт.

25

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber, radiator

2шт.

26

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

27

127181A1

FAN

- engine cooling, with orange identification dot

1шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

4шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

30

A184545

SPACER

fan

1шт.

31

J921603

V-BELT,3.56 mm W x 1485.90 mm L, 8 Ribs

Fan, Alternator and Fan 3.56 mm W x 1485.90 mm L, 8 Ribs

1шт.

32

A173418

STRAP

- radiator, at counterweight

2шт.

33

113-2245

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/2", G5

BOLT, Locking, 3/8"-16 x 1 1/2", G5

2шт.

34

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

36

279238A2

PLATE

STRAP - radiator mounting

2шт.

37

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

38

279245A1

BAFFLE

- radiator, top

1шт.

39

279246A1

BAFFLE

- radiator, side

2шт.
