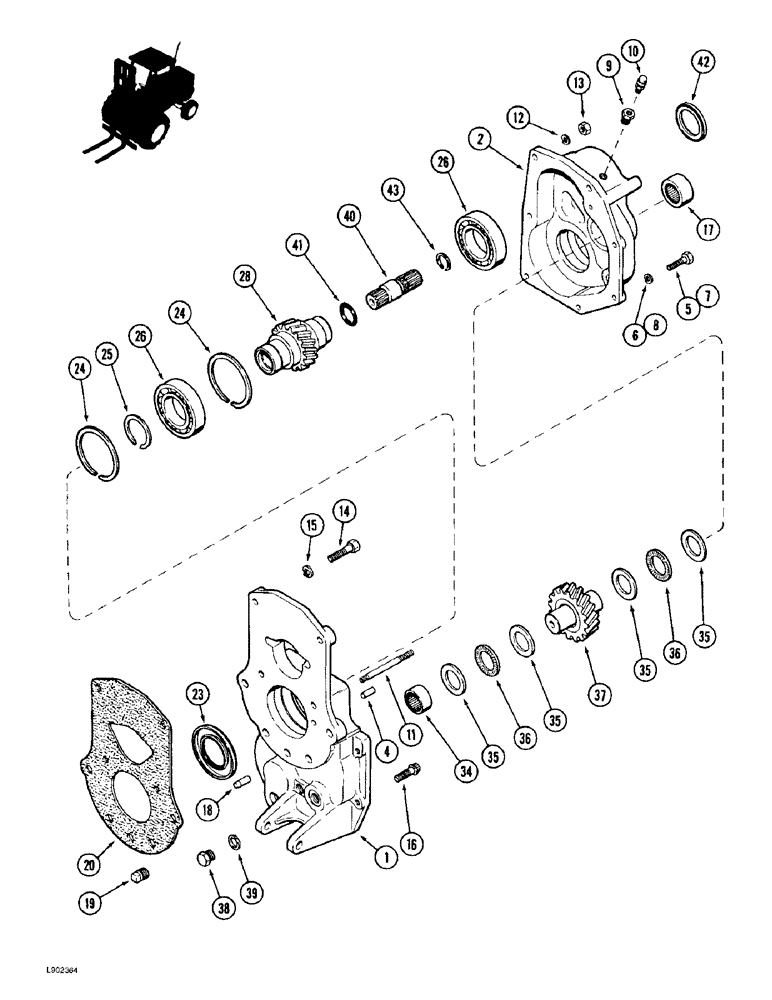

Запчасти Case 584E (6-74) - TRANSAXLE TRANSFER GEAR BOX, 4 WHEEL DRIVE (06) - POWER TRAIN

A168942

HOUSING

ASSEMBLY - transfer gearbox, matched set, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transfer gearbox, order housing assembly A168942

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - transfer gearbox, order housing assembly A168942

1шт.

4

A55459

PIN

- dowel, Serial Range: cover-housing

2шт.

5

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

3шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- pipe, 3/8 male x 1/8 inch female

1шт.

10

110891H

BREATHER,1/8"-27 NPT, Short, w/washer

- oil, transfer gearbox (Replaces breather A12928)

1шт.

11

A153248

STUD

- 4-13/16 inch

2шт.

12

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1-7/8 inch

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 12 point flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

17

A156286

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 25.4mm W

BEARING - needle, idler gear, front

1шт.

18

A29540

PIN

- dowel, transmission housing

1шт.

19

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

20

1342800C1

GASKET

- front cover to transmission housing (Replaces gasket A182720)

1шт.

23

A157228

OIL SEAL

- oil, input gear

1шт.

24

A31234

RING

- retaining

2шт.

25

CASA27117

RING, SNAP

RING - retaining, 0.096 inch

1шт.

25

A27118

RING, SNAP

RING - retaining, 0.0975 inch

1шт.

25

A27119

RING, SNAP

RING - retaining, 0.099 inch

1шт.

25

A27116

SNAP RING

RING - retaining, 0.109 inch

1шт.

26

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

BEARING - ball (Replaces bearing A21266)

2шт.

28

A179007

PINION

GEAR - input, 14 teeth

1шт.

34

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING - needle, idler gear, rear

1шт.

35

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

- thrust, idler gear

4шт.

36

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - thrust, idler gear

2шт.

37

A156256

GEAR

- idler, 17 teeth

1шт.

38

A140222

PLUG

- hex, transfer gearbox drain

1шт.

39

A58608

GASKET

- drain plug

1шт.

40

A179006

SHAFT

SPLINE - stub

1шт.

41

238-9217

O-RING,-217, Cl 9, 1.171" ID x .139" Thk

- 1-3/16 ID x 1/8 inch wide (Replaces O-ring A179155)

1шт.

42

A179071

OIL SEAL

- oil

1шт.

43

101-11106

SNAP RING,#106, 1.000", Ext

RING - snap, No. 106 (Replaces ring A140169)

1шт.
