(6-72) - TRANSAXLE, FRONT AXLE

Запчасти Case 584E (6-72) - TRANSAXLE, FRONT AXLE (06) - POWER TRAIN

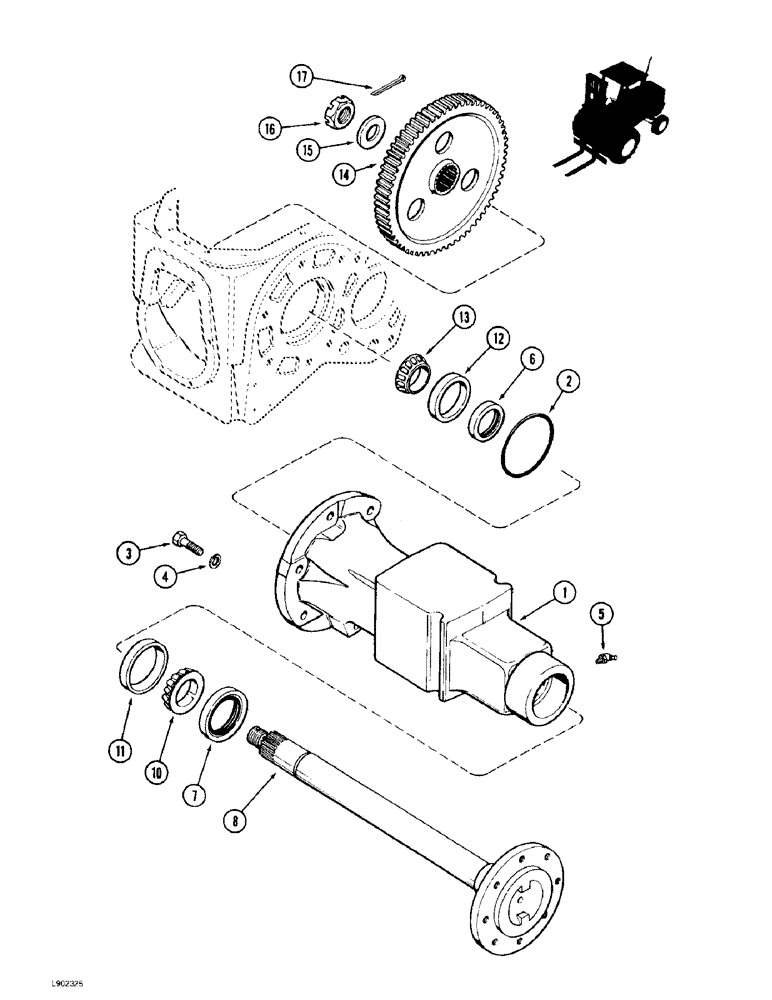

Схема запчастей Case 584E - (6-72) - TRANSAXLE, FRONT AXLE (06) - POWER TRAIN
7
13
15
11
3
16
5
1
12
17
4
6
14
2
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A153737

HOUSING

- axle, left-hand, uses 5/8 inch bolts

1шт.

1

A153738

HOUSING

- axle, right-hand, uses 5/8 inch bolts

1шт.

1

A182761

HOUSING

- axle, left-hand, uses 3/4 inch bolts, shown

1шт.

1

A182762

HOUSING

- axle, right-hand, uses 3/4 inch bolts

1шт.

2

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk

2шт.

3

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

3

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

6шт.

3

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

3

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

2шт.

3

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

4шт.

3

166-137

12 PT SCREW,Flg, 3/4" - 10 x 2 3/4", Gr 8

BOLT - 12 point flange, 3/4 NC x 2-3/4 inch, grade 8

2шт.

3

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

4

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

6

G13801

OIL SEAL

- oil, 57 mm (2-1/4 inch) ID, inner

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, 76 mm (3 inch) ID, outer

2шт.

8

A154936

SHAFT

- rear axle

2шт.

10

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING - tapered roller, outer (Replaces bearing G15207)

2шт.

11

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, 110 mm (4-11/32 inch) OD, outer

2шт.

12

G10415

BEARING CUP

CUP - tapered roller bearing, 101 mm (3-15/16 inch) OD, inner

2шт.

13

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - tapered roller bearing, 2-1/4 inch ID, inner

2шт.

14

A154940

PINION

GEAR - 64 external and 35 internal teeth, bull gear

2шт.

15

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up

2шт.

16

A30075

WHEEL NUT

- hex slotted, 1/2 inch NF

1шт.

17

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.
