Запчасти Case 584E (6-70) - TRANSAXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN

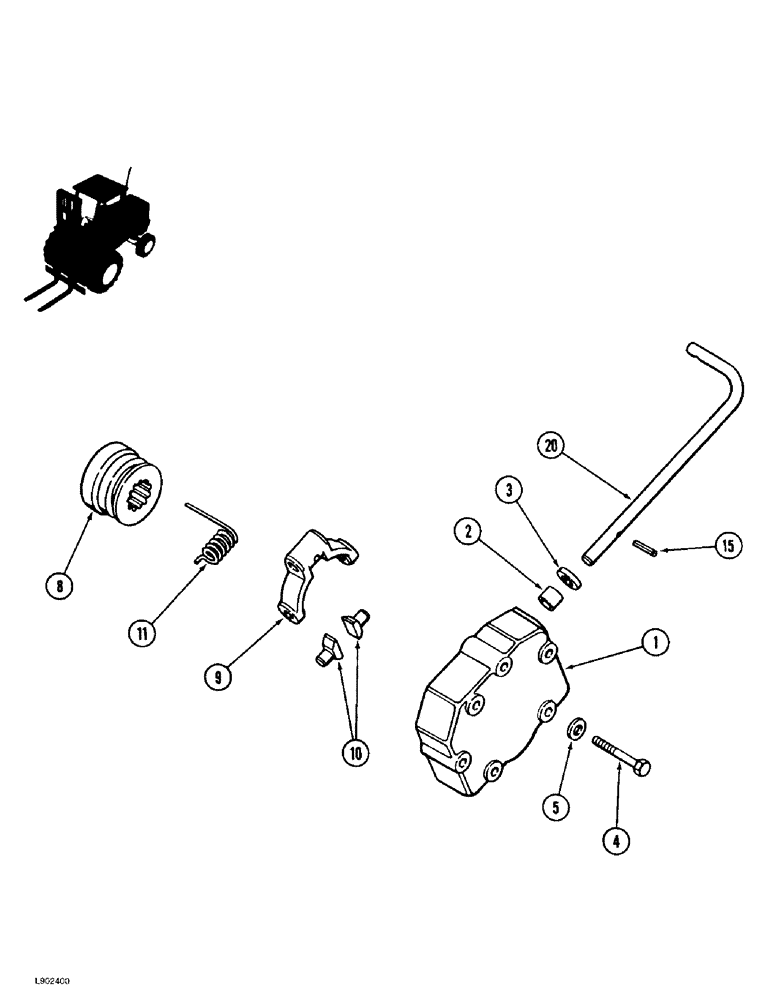

Схема запчастей Case 584E - (6-70) - TRANSAXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN
9
11
15
8
1
3
2
4
5
10
20

Артикул

Название

Примечание

Количество

1

A168525

COVER ASSY

COVER ASSEMBLY - differential lock, on right-hand brake housing, Includes: Ref. 2 and 3

1шт.

2

L14229

BEARING

BUSHING - cover (Replaces bushing B15768)

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- oil (Replaces seal G105700)

1шт.

4

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

6шт.

5

95-81159

WASHER,3/8" x 7/8" x .083"

- flat, 3/8 x 7/8 x 5/64 inch

6шт.

8

A156373

COLLAR

- differential lock

1шт.

9

A168524

LEVER

- collar throw-out

1шт.

10

A65101

FINGER

S -, Serial Range: lever-collar

2шт.

11

A156559

SPRING

- throw-out lever

1шт.

15

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

20

A157734

SHAFT

- actuating

1шт.

Выбрано товаров: 11
