Запчасти Case 584E (6-68) - TRANSAXLE, DIFFERENTIAL (06) - POWER TRAIN

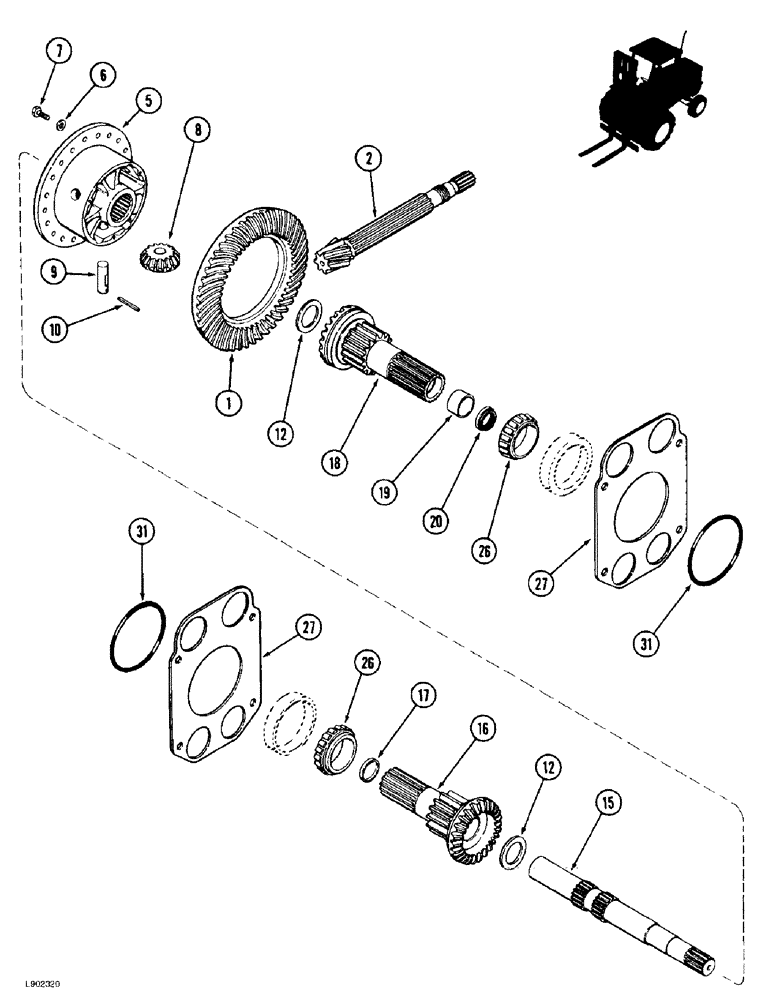

Схема запчастей Case 584E - (6-68) - TRANSAXLE, DIFFERENTIAL (06) - POWER TRAIN
12
8
26
27
15
2
31
18
31
12
27
16
17
7
6
20
5
26
10
19
9
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SHAFT AND GEAR SET - transaxle, matched set, see Figure 6-66, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, order set

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - pinion, order set

1шт.

5

A179986

HUB

WHEEL - center

1шт.

6

A155847

WASHER

- flat

20шт.

7

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - hex, 3/8 NF x 7/8 inch, grade 8

20шт.

8

A179762

PINION

GEAR - pinion

3шт.

9

A153711

PIN,22.16mm OD x 62.74mm L

- pinion gear

3шт.

10

A140705

PIN

- groove, 3/16 x 2 inch

3шт.

12

A154141

WASHER

- thrust, 2.01 mm (0.079 inch), center wheel

1шт.

12

A153717

WASHER

- thrust, 2.13 mm (0.084 inch), center wheel

1шт.

12

A153712

WASHER

- thrust, 2.26 mm (0.089 inch), center wheel

1шт.

12

A153713

WASHER

- thrust, 2.40 mm (0.094 inch), center wheel

1шт.

12

A153714

WASHER

- thrust, 2.52 mm (0.099 inch), center wheel

1шт.

12

A153715

WASHER

- thrust, 2.66 mm (0.104 inch), center wheel

1шт.

12

A153716

WASHER

- thrust, 2.78 mm (0.109 inch), center wheel

1шт.

15

A156376

SHAFT

- cross

1шт.

16

A158745

GEAR

ASSEMBLY - side, left-hand, Includes: Ref. 17

1шт.

17

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, 1-3/4 inch diameter

1шт.

18

A179107

GEAR

ASSEMBLY - side, right-hand, Includes: Ref. 19

1шт.

19

A153719

BUSHING,38.16mm ID x 44.55mm OD x 20.65mm L

Gear

1шт.

20

A179053

OIL SEAL

- oil, right-hand side gear

2шт.

Ref. 20 A179053 seal shows a quantity of 2 and it should only read 1 and the lip should face toward the inside of the transmission when assembled.

1шт.

26

13367DC

ROLLER BEARING

CONE - tapered roller bearing (Replaces bearing A7891)

2шт.

27

A179076

SHIM,.007" Thk

Bearing carrier .007" Thk

1шт.

27

A179075

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

27

A179077

SHIM

- bearing carrier, 0.010 inch

1шт.

31

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk

2шт.

Выбрано товаров: 28
