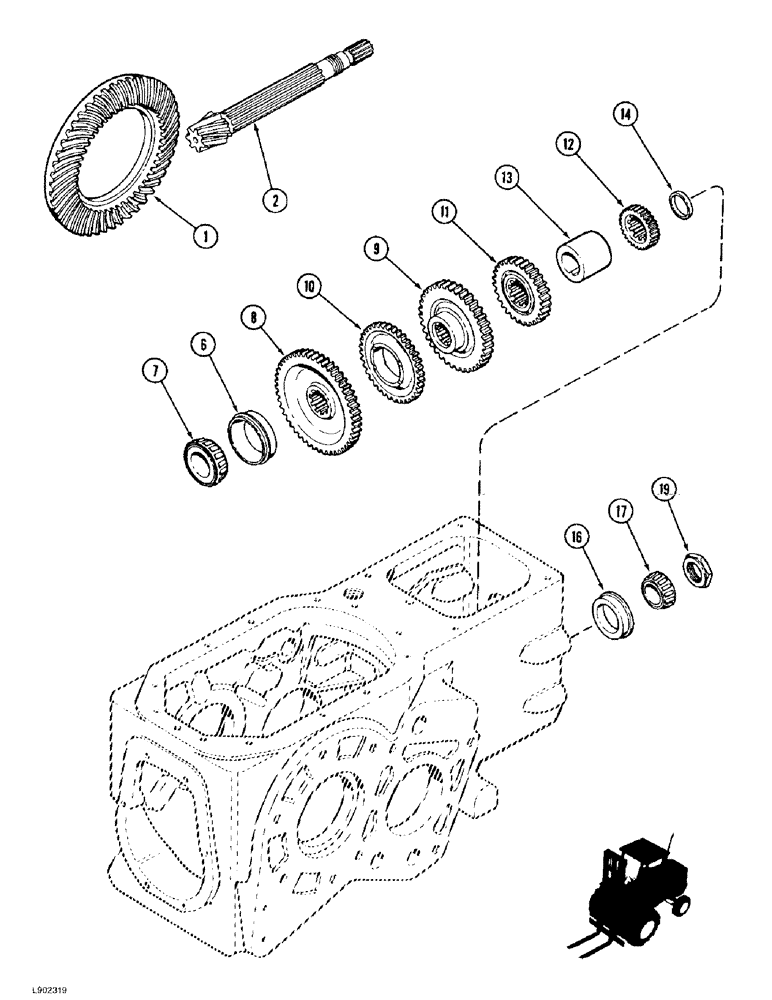

Запчасти Case 584E (6-66) - TRANSAXLE, COUNTERSHAFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A168883
GEAR, BEVEL
SHAFT AND GEAR SET - transaxle, matched set, Includes: Ref. 1 and 2
1шт.
1
NSS
NOT SOLD SEPARAT
GEAR - ring, order set A168883
1шт.
2
NSS
NOT SOLD SEPARAT
COUNTERSHAFT - pinion, order set A168883
1шт.
6
A153753
ROLLER BEARING,88.92mm OD x 23.02mm W
CUP - tapered roller bearing, 3-1/2 inch OD
1шт.
7
912735R91
ROLLER BEARING,1.6255" ID x 1.1563"
CONE - tapered roller bearing, 1-5/8 inch ID (Replaces bearing R10276)
1шт.
8
A153751
GEAR
- first, 47 external and 10 internal teeth
1шт.
9
A51961
GEAR
- second, 38 external and 10 internal teeth
1шт.
10
A157304
GEAR
- oil slinger, 38 external teeth
1шт.
11
A51960
GEAR
- third, 28 external and 10 internal teeth
1шт.
12
A154649
GEAR
- fourth, 29 external and 10 internal teeth
1шт.
13
A51959
SPACER
- 41 x 59 x 56 mm, third and fourth gears
1шт.
14
A179800
SPACER
- thrust, 0.250 - 0.248 inch
1шт.
14
A179799
SPACER
- thrust, 0.245 - 0.243 inch
1шт.
14
A179798
SPACER
- thrust, 0.240 - 0.238 inch
1шт.
14
A179797
SPACER
- thrust, 0.235 - 0.233 inch
1шт.
14
A179796
SPACER
- thrust, 0.230 - 0.228 inch
1шт.
14
A179795
SPACER
- thrust, 0.225 - 0.223 inch
1шт.
14
A179794
SPACER
- thrust, 0.220 - 0.218 inch
1шт.
14
A179793
SPACER
- thrust, 0.215 - 0.213 inch
1шт.
14
A179792
SPACER
- thrust, 0.210 - 0.208 inch
1шт.
14
A179791
SPACER
- thrust, 0.205 - 0.203 inch
1шт.
14
A179790
SPACER
- thrust, 0.200 - 0.198 inch
1шт.
14
A179789
SPACER
- thrust, 0.195 - 0.193 inch
1шт.
14
A179788
SPACER
- thrust, 0.190 - 0.188 inch
1шт.
14
A179787
SPACER
- thrust, 0.185 - 0.183 inch
1шт.
14
A179786
SPACER
- thrust, 0.180 - 0.178 inch
1шт.
14
A179785
SPACER
- thrust, 0.175 - 0.173 inch
1шт.
14
A179784
SPACER
- thrust, 0.170 - 0.168 inch
1шт.
14
A179783
SPACER
- thrust, 0.165 - 0.163 inch
1шт.
16
A179719
ROLLER BEARING,76.1mm OD x 17.46mm W
CUP - tapered roller bearing
1шт.
17
671032R1
TAPERED BEARING,33.34mm ID x 22.33mm W
CONE - bearing, rear (Replaces bearing A153749)
1шт.
19
A156260
NUT
- adjusting, countershaft
1шт.
Выбрано товаров: 32
