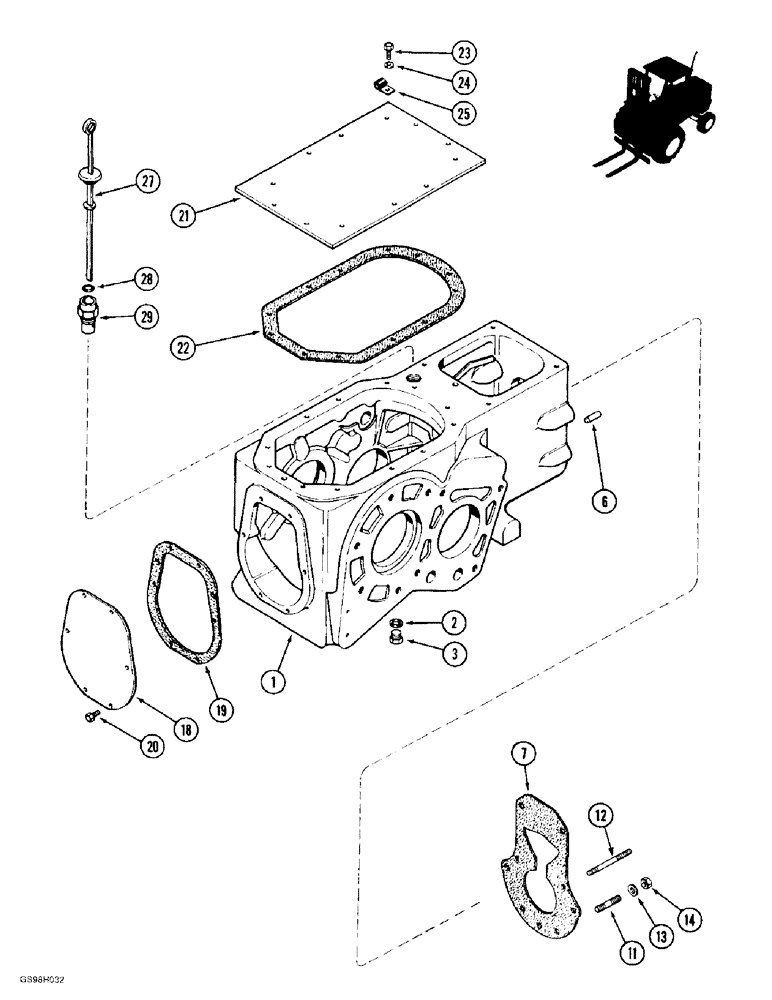

Запчасти Case 584E (6-60) - TRANSAXLE TRANSMISSION HOUSING, 4 WHEEL DRIVE (06) - POWER TRAIN

1

A159416

HOUSING

- transmission, uses 5/8 inch rear axle housing bolts (Replaces housing A157659)

1шт.

1

A182760

HOUSING

- transmission, uses 3/4 inch rear axle housing bolts

1шт.

2

A140222

PLUG

- hex, drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

6

A29540

PIN

- dowel, locating

1шт.

7

1342800C1

GASKET

- front cover to transmission housing (Replaces gaskets A156248 and A182720)

1шт.

11

A168517

STUD

- 5/8 NC x 2-7/8 inch (Replaces stud A157625)

2шт.

12

A153248

STUD

- 4-13/16 inch, center

2шт.

13

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

G10447

GASKET

- rear cover to transmission housing

1шт.

J I Case installed rear housing cover may not have a gasket. If rear housing cover is removed, install a gasket prior to assembly.

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

21

A153744

COVER

- housing, top rear

1шт.

22

1342409C1

GASKET,0.79mm Thk

- top cover to transmission housing (Replaces gasket A153777)

1шт.

23

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special, 3/8 inch, hardened

11шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

27

REF

INSTRUCTION

DIPSTICK ASSEMBLY - oil gauge, see Figure 6-26, Includes: Ref. 28

1шт.

28

REF

INSTRUCTION

O-RING - dipstick, see Figure 6-26

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
