Запчасти Case 584E (6-58) - TRANSAXLE TRANSMISSION HOUSING, 2 WHEEL DRIVE (06) - POWER TRAIN

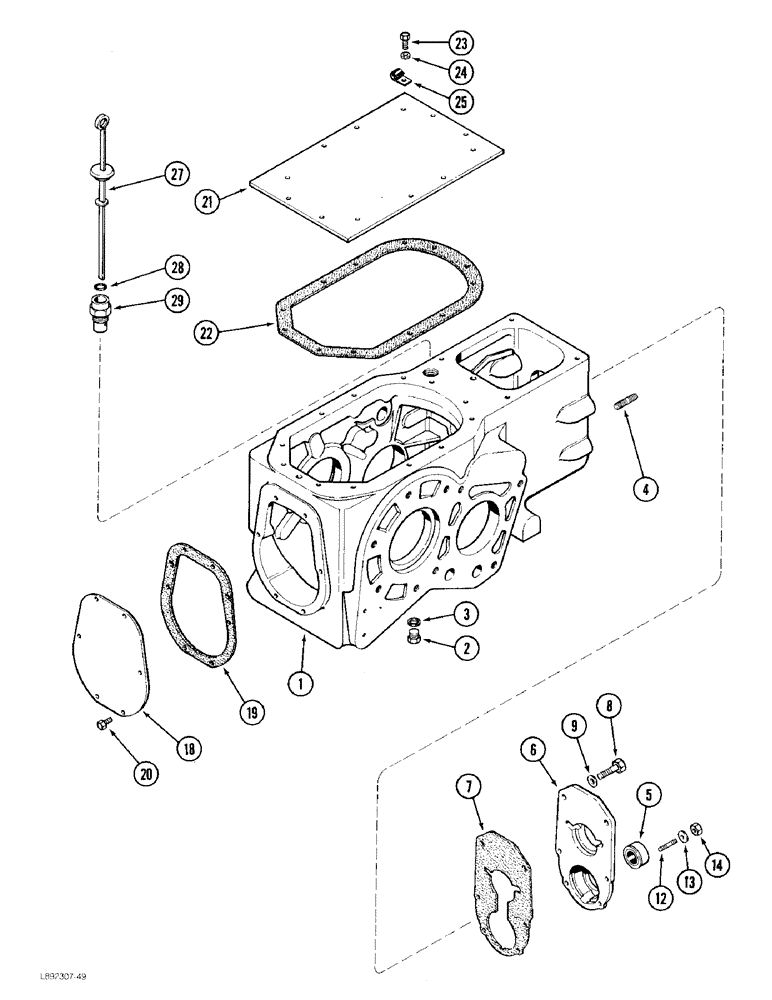

Схема запчастей Case 584E - (6-58) - TRANSAXLE TRANSMISSION HOUSING, 2 WHEEL DRIVE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

A159416

HOUSING

- transmission, uses 5/8 inch rear axle housing bolts (Replaces housing A157659)

1шт.

1

A182760

HOUSING

- transmission, uses 3/4 inch rear axle housing bolts

1шт.

2

A140222

PLUG

- hex, drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

4

A157625

STUD

- hardened, 5/8 NC x 2-1/2 inch

2шт.

5

A179056

OIL SEAL

- oil

1шт.

6

A168851

COVER

- front, transmission housing

1шт.

7

1342798C1

GASKET

- front cover to transmission housing (Replaces gasket A182721)

1шт.

8

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1-7/8 inch

2шт.

9

95-11053

WASHER,1/2"

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

12

A29717

STUD

- cover, 1-1/2 inch

2шт.

12

G10710

STUD

- cover, 1-3/4 inch

2шт.

13

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

4шт.

14

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

4шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

1342375C1

GASKET

- rear cover to transmission housing (Replaces gasket G10447)

1шт.

J I Case installed rear housing cover may not have a gasket. If rear housing cover is removed, install a gasket before assembly.

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

21

A153744

COVER

- housing, top rear

1шт.

22

1342409C1

GASKET,0.79mm Thk

- top cover to transmission housing (Replaces gasket A153777)

1шт.

23

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special, 3/8 inch, hardened

11шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

27

D137350

DIPSTICK

ASSEMBLY - transaxle, see Figure 6-24, Includes: Ref. 28

1шт.

28

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

see Figure 6-24 -210, 70 Duro, .734" ID x .139" Thk

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.

Выбрано товаров: 26
