Запчасти Case 584E (6-54) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

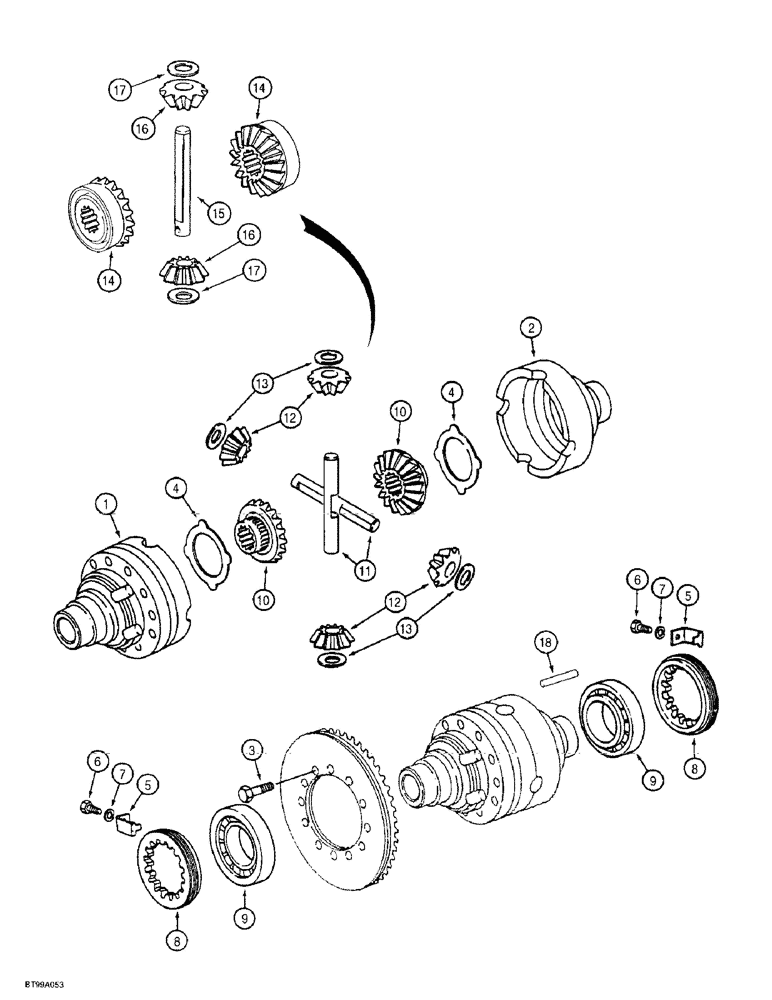

Схема запчастей Case 584E - (6-54) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN
5
9
4
11
13
1
7
14
4
16
13
6
17
7
9
5
3
10
15
8
8
2
6
18
10
14
16
12
12
17

Артикул

Название

Примечание

Количество

D134010

AXLE

ASSEMBLY (CARRARO 121294) - rear drive, parts lists Figure 6-46 through 6-56, no longer available, order axle assembly 109936A1, Includes: Ref. 1 - 18

1шт.

D149793

CENTER AXLE

AXLE ASSEMBLY (CARRARO 126808) - rear drive, parts lists Figure 6-46 through 6-56, Includes: Ref. 1 - 18

1шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY - differential, replaces N13508, 1349056C1 or D150215 housing assemblies, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

3

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9, if used

12шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9, If used

12шт.

4

1967003C1

THRUST WASHER

WASHER - thrust, replaces thrust washer N13618

2шт.

5

1966153C1

LOCKING PLATE

BRACKET - lock, replaces bracket K261869

2шт.

6

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

1966559C1

NUT

RING, LOCKING, Replaces ring K261868

2шт.

9

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

10

N13617

GEAR

- side, differential, set used with D134010 axle

2шт.

11

N13507

PIN

SHAFT - pinion gear, set used with D134010 axle

2шт.

12

K395076

GEAR

- pinion, differential, set with D134010 axle

4шт.

13

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear, Set used with D134010 axle

4шт.

14

231397A1

SERVICE KIT

KIT, SERVICE, Set - Gear, Differential, Used with D149793 axle, Incl Ref 14 - 18

1шт.

14

N14407

GEAR

- side, no longer available, order 231397A1, set used with D149793 axle

2шт.

15

K395087

SHAFT

- Pinion gear, No longer available, Order 231397A1, Set used with D149793 axle

1шт.

16

N14408

SUN GEAR

GEAR - pinion, no longer available, order 231397A1, set used with D149793 axle

2шт.

17

K395075

THRUST WASHER

WASHER, THRUST, No longer available, Order 231397A1, Gear set used with D149793 axle

2шт.

18

K395086

PIN

- dowel, no longer available, order 231397A1, gear set used with D149793 axle

1шт.

Выбрано товаров: 23
