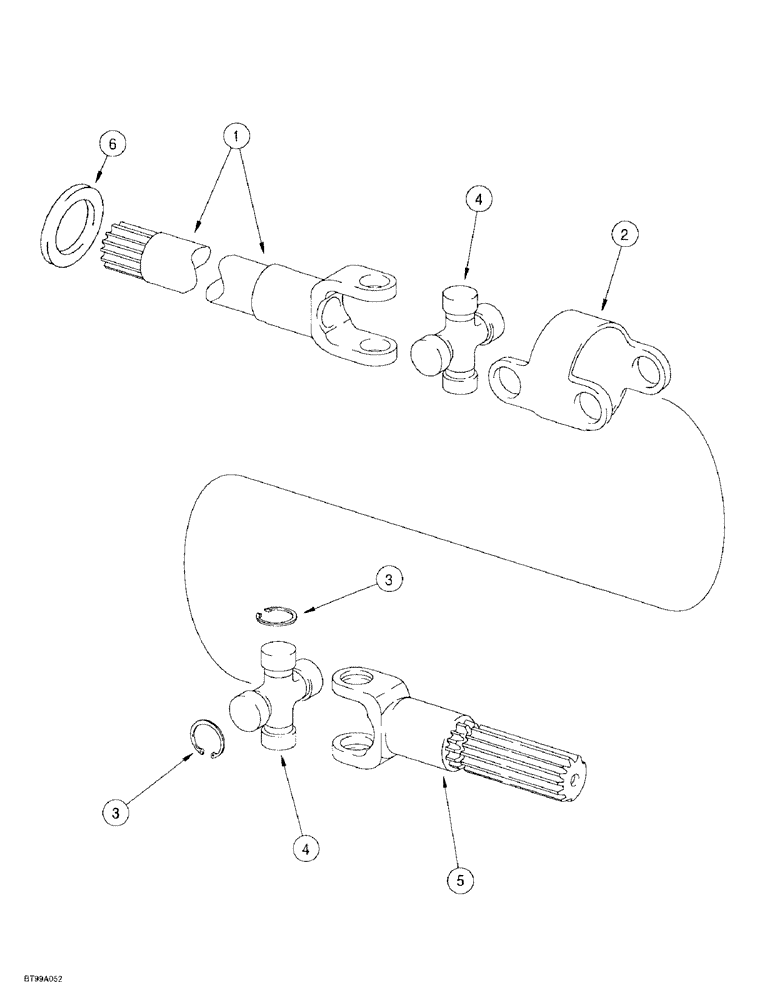

Запчасти Case 584E (6-51A) - REAR DRIVE AXLE, AXLE SHAFTS (06) - POWER TRAIN

D149793

CENTER AXLE

AXLE ASSEMBLY - parts list Figure 6-46 through 6-56, Includes: Ref. 1 - 6

1шт.

D149733

STEERING SHAFT

SHAFT ASSEMBLY - axle, rear drive, not available as an assembly, order components, Includes: Ref. 1 - 6

2шт.

1

D149735

SHAFT

- axle, long, differential side

2шт.

2

N14412

BODY

- connecting

2шт.

3

N14410

RING

- snap, universal joint

16шт.

4

144465A1

U-JOINT SPIDER

JOINT - universal, axle shaft, cross

4шт.

5

N14409

SHAFT

- axle, short, wheel side

2шт.

6

1966164C1

OIL SEAL

SEAL - oil, axle shaft

2шт.

248581A1

KIT

- housing, rear axle, consists of Ref. 3, Figure 6-46, Ref. 16A, 16B, 21, 21A, 22, Figure 6-48 and Ref. 8, Figure 6-50

1шт.
