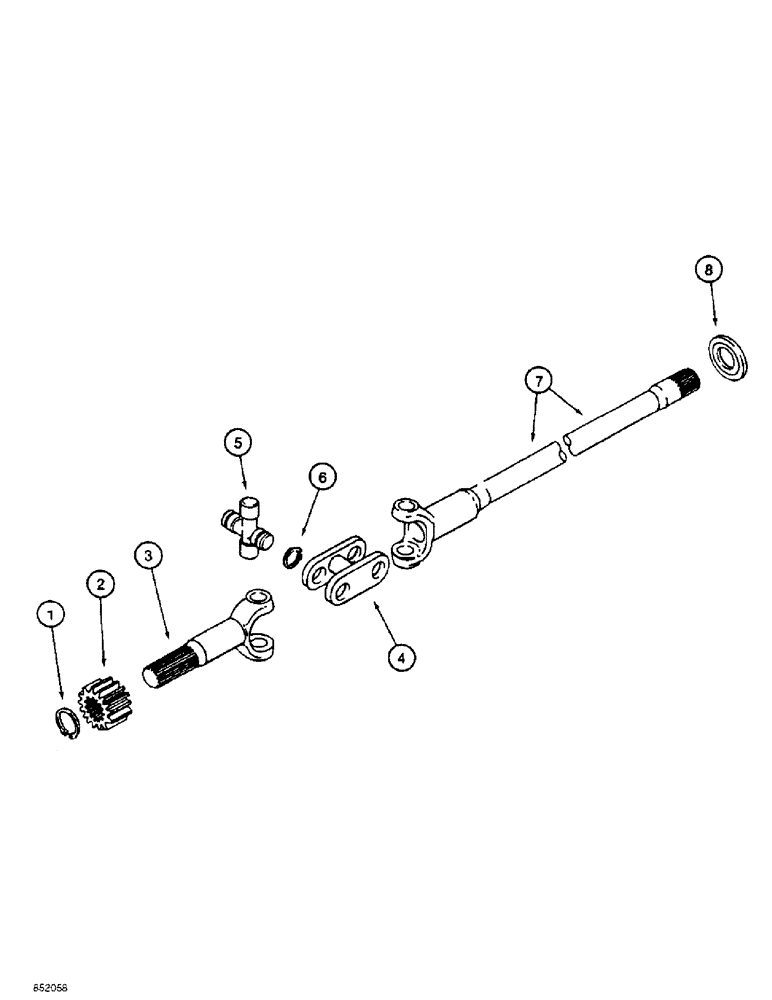

Запчасти Case 584E (6-50) - REAR DRIVE AXLE, AXLE SHAFTS (06) - POWER TRAIN

D134010

AXLE

ASSEMBLY (CARRARO 121294) - parts lists Figure 6-46 through 6-56, no longer available, order axle assembly D149793, Includes: Ref. 1 - 8

1шт.

D149793

CENTER AXLE

AXLE ASSEMBLY (CARRARO 126808) - parts lists Figure 6-46 through 6-56, Includes: Ref. 1 - 8

1шт.

1

K261897

RING, SNAP

RING - snap, axle shaft

2шт.

2

K395114

GEAR

- pinion, axle shaft

2шт.

3

N13510

SHAFT

- axle, short, wheel side

2шт.

4

K262199

FORK

FLANGE - connecting

2шт.

5

K262161

U-JOINT SPIDER

JOINT - universal, axle shaft, stamped with BTB210

4шт.

Several different U-joints are available. In order to select correct option, it may be necessary to use dimensions.

1шт.

5

N14411

U-JOINT SPIDER

JOINT - universal, axle shaft, stamped with BTB310

4шт.

Several different U-joints are available. In order to select correct option, it may be necessary to use dimensions.

1шт.

5

K260189

JOINT

- universal, axle shaft, stamped with BTB220

4шт.

Several different U-joints are available. In order to select correct option, it may be necessary to use dimensions.

1шт.

5

100546A1

U-JOINT SPIDER

JOINT - universal, axle shaft, stamped with BTB300

4шт.

Several different U-joints are available. In order to select correct option, it may be necessary to use dimensions.

1шт.

6

K965336

RING, SNAP

RING - snap, universal joint

16шт.

7

N13509

SHAFT

- axle, long differential side

2шт.

8

1966164C1

OIL SEAL

SEAL - oil, axle shaft (Replaces seal K395103)

2шт.

248581A1

KIT

- housing, rear axle, consists of Ref. 3, Figure 6-46, Ref. 16A, 16B, 21, 21A, 22, Figure 6-48 and Ref. 8, Figure 6-50

1шт.
