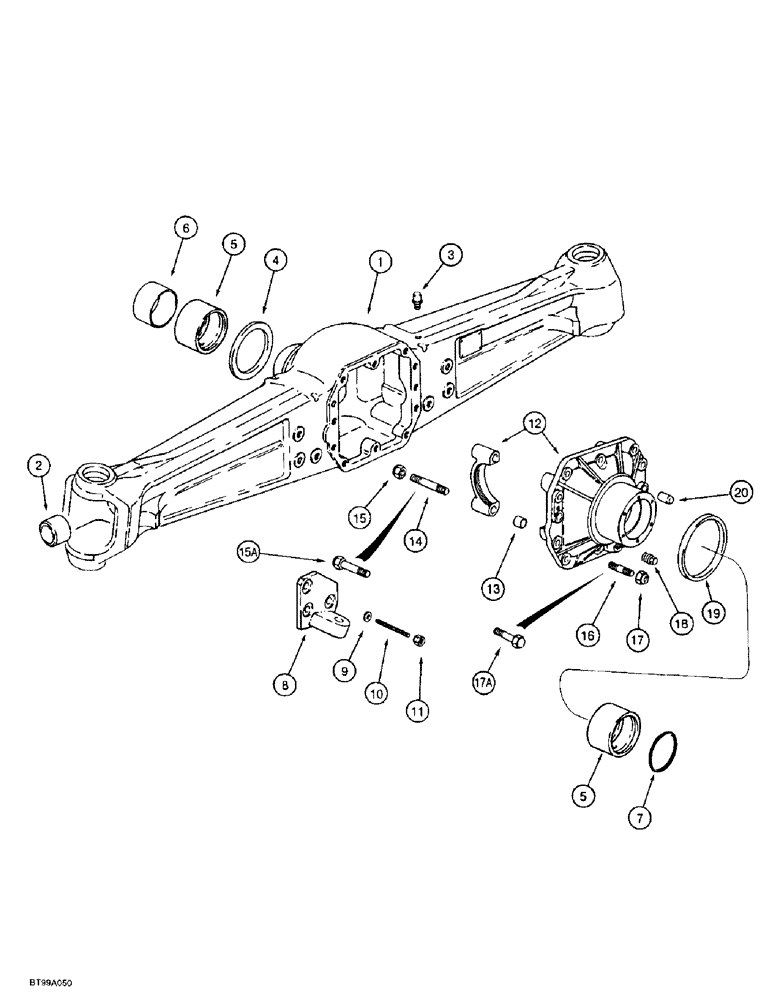

Запчасти Case 584E (6-46) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

D134010

AXLE

ASSEMBLY (CARRARO 121294) - rear drive, parts lists Figure 6-46 through 6-56, no longer available, order axle assembly 109936A1, Includes: Ref. 1 - 20

1шт.

D149793

CENTER AXLE

AXLE ASSEMBLY (CARRARO 126808) - rear drive, parts list Figure 5-46 through 6-56, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle, order 248581A1 kit shown below

1шт.

2

K395019

BUSHING

- housing

2шт.

3

1966149C2

BREATHER

- axle housing (Replaces breather K965231)

1шт.

4

K395022

WASHER

SPACER - front pivot

1шт.

5

K965265

BUSHING

COLLAR - front pivot

2шт.

6

K965266

BUSHING

SLEEVE - front pivot

1шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

- front pivot, fits in outer groove of K965265 front pivot collar (Ref. 5)

1шт.

8

N13611

BRACKET

SUPPORT - steering cylinder, left-hand

1шт.

8

N13612

BRACKET

SUPPORT - steering cylinder, right-hand

1шт.

9

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER - lock, special (Replaces washer K395052)

6шт.

10

N13503

STUD

- bracket

6шт.

11

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, special (Replaces nut K965250)

6шт.

K395118

DIFFERENTIAL

CARRIER ASSEMBLY - differential, Includes: Ref. 12 - 15A

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER - differential, order carrier assembly K395118

1шт.

13

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering, carrier (Replaces bushing K965259)

4шт.

14

K261836

STUD

- carrier, prior to Carraro serial number 7E/1229

4шт.

15

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, special, pripr to Carraro seriial number 7E/122

4шт.

15a

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special, Carraro S/N 7E/1229 and after Hex Flg, M14 x 75, 12.9

4шт.

16

1966562C1

STUD

- used with D134010 axle (Replaces stud K261839)

10шт.

17

905834R1

THIN NUT,M12 x 1.25, Thin

Hex, used with D134010 axle M12 x 1.25, Thin

10шт.

17a

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Used with D149793 axle Hex Flg, M12 x 33, 12.9

10шт.

18

A156873

PLUG, DRAIN,M22 x 1.5

2-4шт.

19

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

- thrust, rear pivot

1шт.

20

1966138C1

DOWEL

PIN - dowl, housing to carrier (Replaces pin K965252)

2шт.

248581A1

KIT

- housing, rear axle, consists of Ref. 3, Figure 6-46, Ref. 16A, 16B, 21, 21A, 22, Figure 6-48 and Ref. 8, Figure 6-50

1шт.

B94328

FLUID

SEALANT - tube, 80 ml (3 oz), differential carrier to axle housing (Replaces sealant M20704)

1шт.
