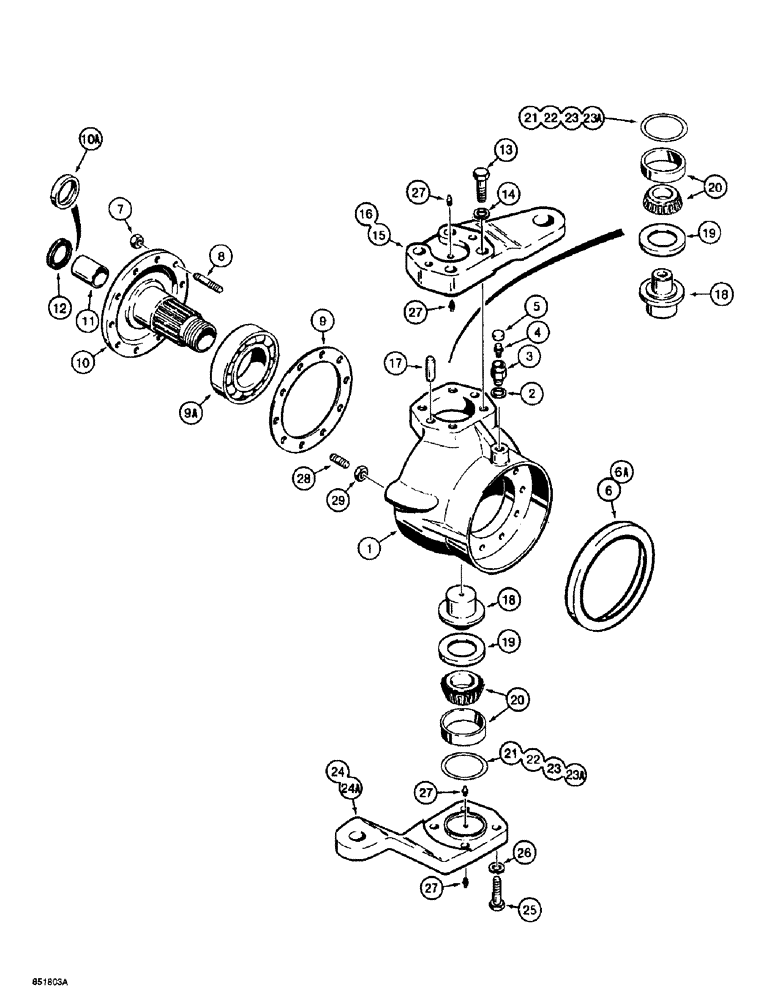

Запчасти Case 584E (6-38) - REAR DRIVE AXLE, SWIVEL HOUSINGS, FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

D124605

CENTER AXLE

AXLE ASSEMBLY (CARRARO 118218) - rear drive, Includes: Ref. 1 - 29

1шт.

D124605 Axle Assembly includes all parts on Figure 6-36 through 6-44.

1шт.

1

N8891

HOUSING

- swivel, axle ends

2шт.

2

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

(Replaces seal K957001) M18 x 24 x 1.5

2шт.

3

K260137

BLEEDER

PROTECTOR - breather (Replaces protector K957000)

2шт.

4

1966149C2

BREATHER

axle housing (Replaces breather K965231)

2шт.

5

K956999

PLUG

CAP - breather cover (Replaces cap K260136)

2шт.

6

N8898

OIL SEAL

- oil, 170 OD x 145 ID x 16 mm wide, housing, fits outside of K261816 wear ring, Ref. 10 on Figure 6-44 used on 140 mm OD hub, Ref. 11 on Figure 6-44

2шт.

N8898 oil seal and K261816 wear ring may replace an oil seal and felt seal mounted one behind the other, used on some models.

1шт.

6a

N9859

SEAL

- oil, 170 OD x 150 mm ID, housing, fits outside of Ref. 10A wear ring on Figure 6-44, used on 145 mm OD hub, Ref. 11A on Figure 6-44

2шт.

7

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, special (Replaces nut K965250)

20шт.

8

K965249

STUD

- hub to swivel housing

20шт.

9

K965237

GASKET

- hub to swivel housing

2шт.

9a

K965321

BALL BEARING

BEARING - ball, small

2шт.

10

K262149

SHAFT

SPINDLE - planetary (Replaces spindle K965236)

2шт.

10a

N8892

SLEEVE

- seal, 62 OD x 55 ID x 11 mm wide

2шт.

11

K965322

BUSHING

- spindle

2шт.

12

N8897

OIL SEAL

SEAL - oil

2шт.

13

N7552

BOLT,M14 x 50mm

BOLT - steering lever

8шт.

14

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

15

D126042

ARM

LEVER - steering, right-hand

1шт.

16

D126043

ARM

LEVER - steering, left-hand

1шт.

17

K965275

PIN

- dowell

8шт.

18

N7532

PIN,60mm OD x 57mm L

- swivel

4шт.

19

N7533

SEALING RING

- pin

4шт.

20

N7534

ROLLER BEARING,30mm ID x 62mm OD x 17.25mm W

BEARING ASSEMBLY - cup and cone, tapered roller bearing, swivel pin

4шт.

21

K965243

SHIM,0.1mm Thk

1шт.

22

K965244

SHIM,0.3mm Thk

1шт.

23

K965245

SHIM,0.5mm Thk

1шт.

23a

NSS

NOT SOLD SEPARAT

SHIM - 1.0 mm, when replacing this shim, use two K965245 shims (Ref. 23)

1шт.

24

D126277

ARM

LEVER - lower, swivel housing to tie rod ball joint, left-hand

1шт.

24a

D126278

ARM

LEVER - lower, swivel housing to tie rod ball joint, right-hand

1шт.

25

N7552

BOLT,M14 x 50mm

BOLT - steering lever

8шт.

26

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

27

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel pin, steering levers and covers (Replaces fitting K965246) M6 x 1, 16mm lg

8шт.

28

N7527

ADJUSTMENT SCREW

STUD - steering stop

2шт.

29

K965369

JAM NUT

- hex, special, 12 mm

2шт.
