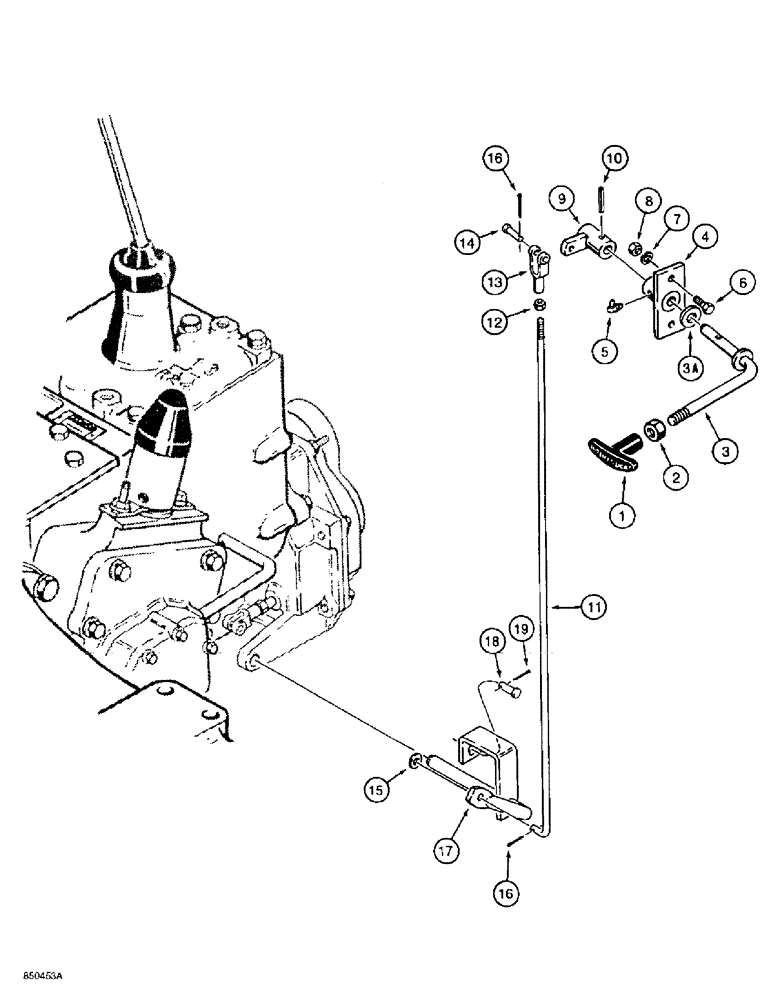

Запчасти Case 584E (6-30) - REAR DRIVE AXLE CONTROL, FOUR WHEEL DRIVE MODELS (06) - POWER TRAIN

1

D120758

HANDLE

- T-grip

1шт.

2

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

3

D125293

HANDLED SHAFT

LEVER - shift

1шт.

3a

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

4

D89341

BRACKET

SUPPORT - boom lock control

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

7

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

D125296

ARM/LIFTING DEVICE

LEVER - pivot

1шт.

10

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

11

D128563

ROD

- control

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

13

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF, plated metal, rod to pivot lever, replaces fiberglass clevis on some models

1шт.

14

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

D128567

LEVER

- control

1шт.

18

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

19

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.
