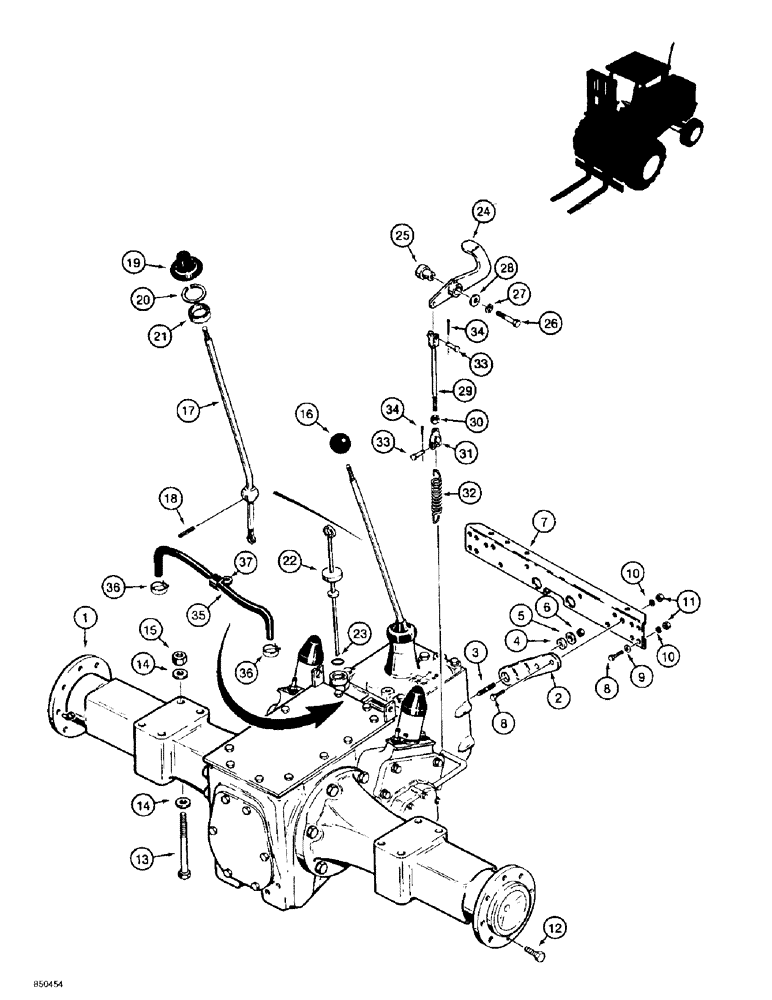

Запчасти Case 584E (6-24) - TRANSAXLE AND DIFFERENTIAL LOCK, TWO WHEEL DRIVE MODELS (06) - POWER TRAIN

AR179042

REMAN-TRANSAXLE, 2WD

REMAN transaxle

1шт.

1

A179042

AXLE

TRANSAXLE - complete, with differential lock, parts list Figure 6-58 and 6-62 through 6-72

1шт.

2

D129915

SUPPORT

- transaxle

2шт.

3

A50237

STUD

- 5/8 NC x 2-1/2 inch, hardened

2шт.

4

D122706

BUSHING

- support

2шт.

5

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

2шт.

6

429-1010

NUT,5/8"-11, G8

2шт.

7

D129941

BRACKET

- crossmember

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

9

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

12

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.

13

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch

16шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

16

A23885

KNOB

- ball

1шт.

17

A140891

LEVER

ASSEMBLY - shift, transaxle, Includes: Ref. 18

1шт.

18

A156515

PIN

- groove, 1/8 x 1-1/4 inch

1шт.

19

A26956

DUST CAP

COVER - rubber, shift lever

1шт.

20

A26836

RING, SNAP

RING - snap, seat, shift lever

1шт.

21

A7923

SEAT

- shift lever

1шт.

22

D137350

DIPSTICK

ASSEMBLY - transaxle, Includes: Ref. 23

1шт.

23

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

24

D125318

PEDAL

- differential lock

1шт.

25

D125312

SPACER

- pedal pivot

1шт.

26

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

28

D64050

WASHER

- flat, special, 1/2 inch

1шт.

29

D128655

ROD

- straight

1шт.

30

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

31

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF, plated metal, differential lock rod, replaces fiberglass clevis on some models

1шт.

32

A59470

SPRING

- transaxle to differential lock

1шт.

33

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened, Differential lock rod 3/8" x 1 1/16"

2шт.

34

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

35

REF

INSTRUCTION

HOSE - vent, brake actuator, 6 (1/4) ID x 550 mm (21-5/8 inch) long, cut from 427683C1 bulk hose, see below

1шт.

36

F64936

CLAMP

- steel spring, vent hose

2шт.

37

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Uses existing transaxle cover plate mounting hardware 1/2", Insul, 3/8" Bolt

1шт.
