Запчасти Case 584E (6-22) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN

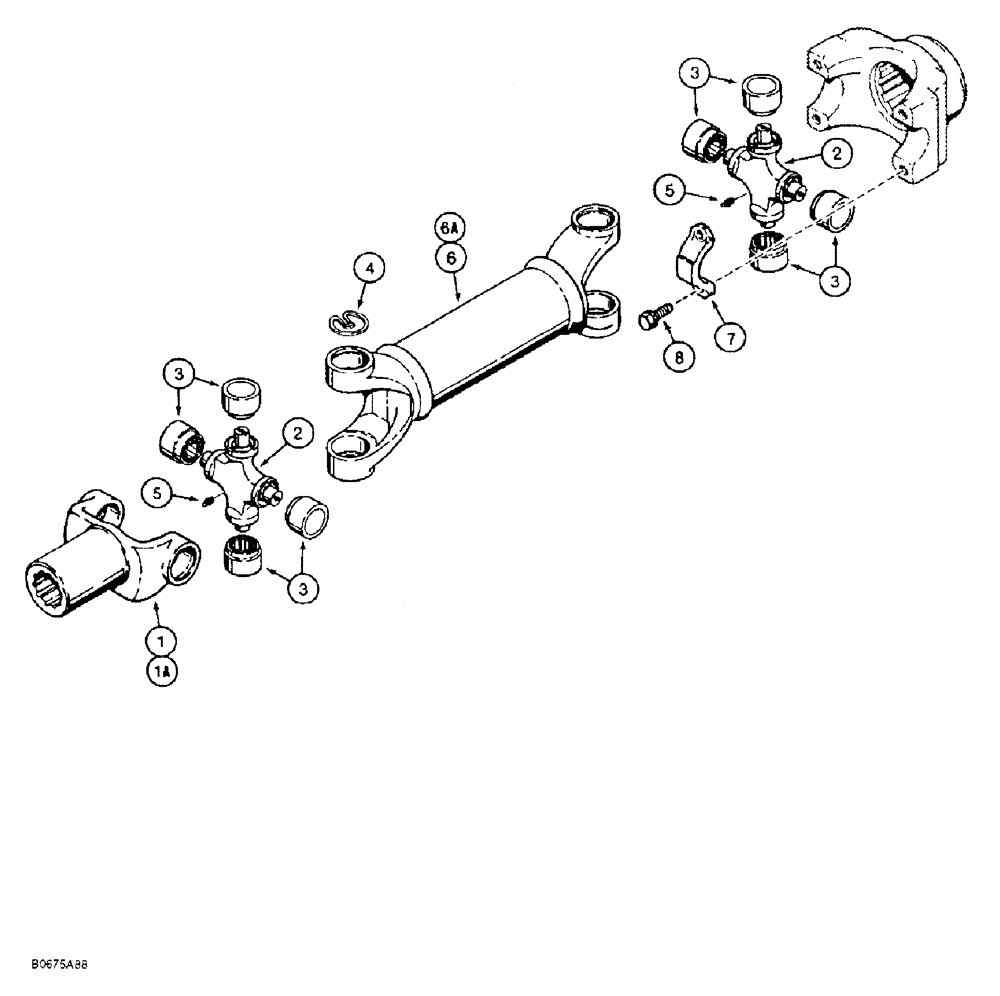

Схема запчастей Case 584E - (6-22) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN
6
1
3
8
3
7
3
2
2
4
5
6a
3
5
1a

Артикул

Название

Примечание

Количество

D132285

DRIVE SHAFT

SHAFT ASSEMBLY - drive, power shuttle to transaxle, used on two wheel drive models only, Includes: Ref. 1 - 6A

1шт.

D135090

DRIVE SHAFT

SHAFT ASSEMBLY - drive, power shuttle to transaxle, used on four wheel drive models only, Includes: Ref. 1 - 6A

1шт.

1

N9815

YOKE

ASSEMBLY - end, used with D132285 drive shaft only, Includes: Ref. 1A

1шт.

1

N6834

YOKE

ASSEMBLY - end, used with D135090 drive shaft only, Includes: Ref. 1A

1шт.

1a

N13653

PLUG

- grease, N6834 or N9815 yoke, not shown

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft, order kit D70629

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint, order kit D70629

4шт.

4

11256

SNAP RING

- retaining, bearing

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - drive, forklift, used with D132285 drive shaft only

1шт.

6a

NSS

NOT SOLD SEPARAT

SHAFT - drive, forklift, used with D132285 drive shaft only

1шт.

7

D124146

CLAMP

STRAP -, Serial Range: bearing-shuttle

2шт.

8

D124151

BOLT

- special, used with D124146 strap

4шт.

Выбрано товаров: 14
