Запчасти Case 584E (6-18) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN

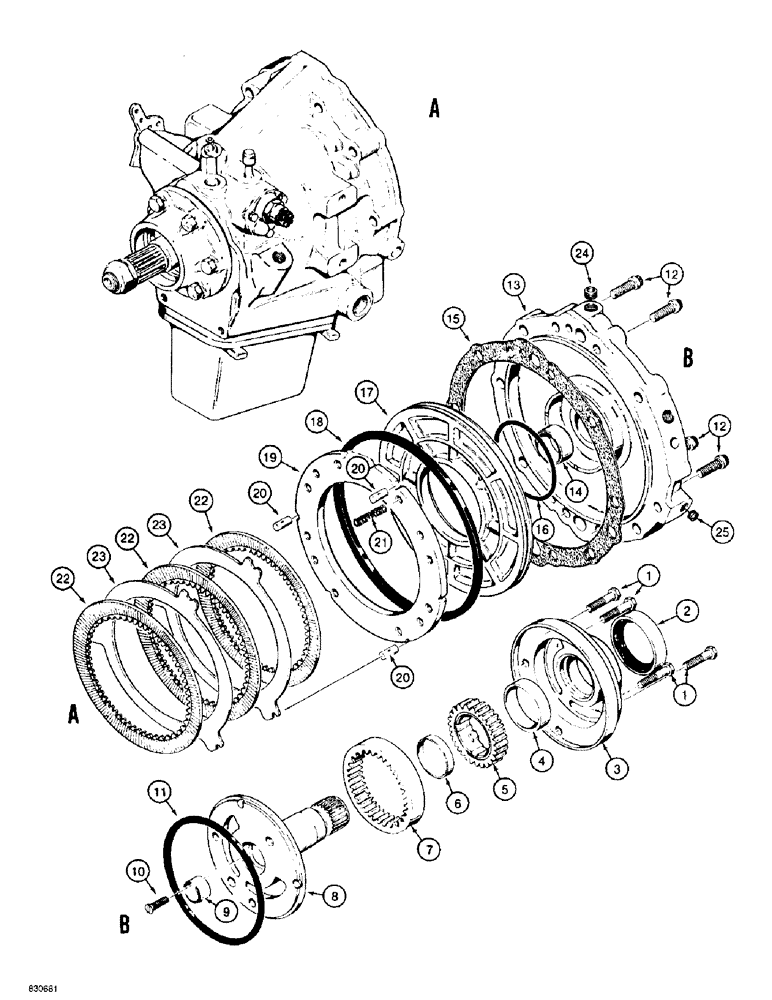

Схема запчастей Case 584E - (6-18) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (06) - POWER TRAIN
5
9
16
23
14
1
12
22
23
11
20
24
20
22
12
20
1
8
17
10
6
25
22
4
13
3
18
19
15
2
21
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SHUTTLE ASSEMBLY - power, see Figure 6-10 for service information, parts list Figure 6-10 through 6-18, Includes: Ref. 1 - 25

1шт.

1

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

R29995

PUMP

ASSEMBLY - charging, power shuttle, no longer available, order pump assembly 137093A1 below, Includes: Ref. 2 - 10

1шт.

137093A1

PUMP

ASSEMBLY - charging, power shuttle, service replacement (Replaces pump assembly L30488), Includes: Ref. 2 - 10

1шт.

137093A1R

REMAN-HYD PUMP

584E, 585E, 586E, N.A. Only

1шт.

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

N8071

OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk

- oil, R29995 pump

1шт.

2

L30489

OIL SEAL

- oil, no longer available, order seal N8071 above

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - charging pump, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - charging pump

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive, charging pump, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - charging pump gear drive

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - driven, charging pump

1шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - torque converter, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - torque converter support

1шт.

10

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

- machine, flat head slotted, No. 10 NC x 3/4 inch

1шт.

11

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- charging pump

1шт.

12

380-2620

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 12 point flange, chemical locking, 3/8 NC x 1-1/4 inch

4шт.

D50022

ADAPTER

COVER ASSEMBLY - power shuttle, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - power shuttle

1шт.

14

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

- cover

1шт.

15

D50033

GASKET,0.58mm Thk

-, Serial Range: cover,-housing

1шт.

16

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING - small

1шт.

17

D50035

PISTON

- reverse clutch

1шт.

18

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

RING - piston seal, square section

1шт.

19

D50037

PLATE

- pressure, reverse clutch

1шт.

20

D50038

PIN

- dowell, pressure plate

3шт.

21

D50039

SPRING

- pressure plate

11шт.

22

D50040

PLATE

DISC - friction, internal tooth

3шт.

23

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

DISC - metal, external flange

2шт.

24

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- hex socket headless, 1/4 inch PT

1шт.

25

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

2шт.
