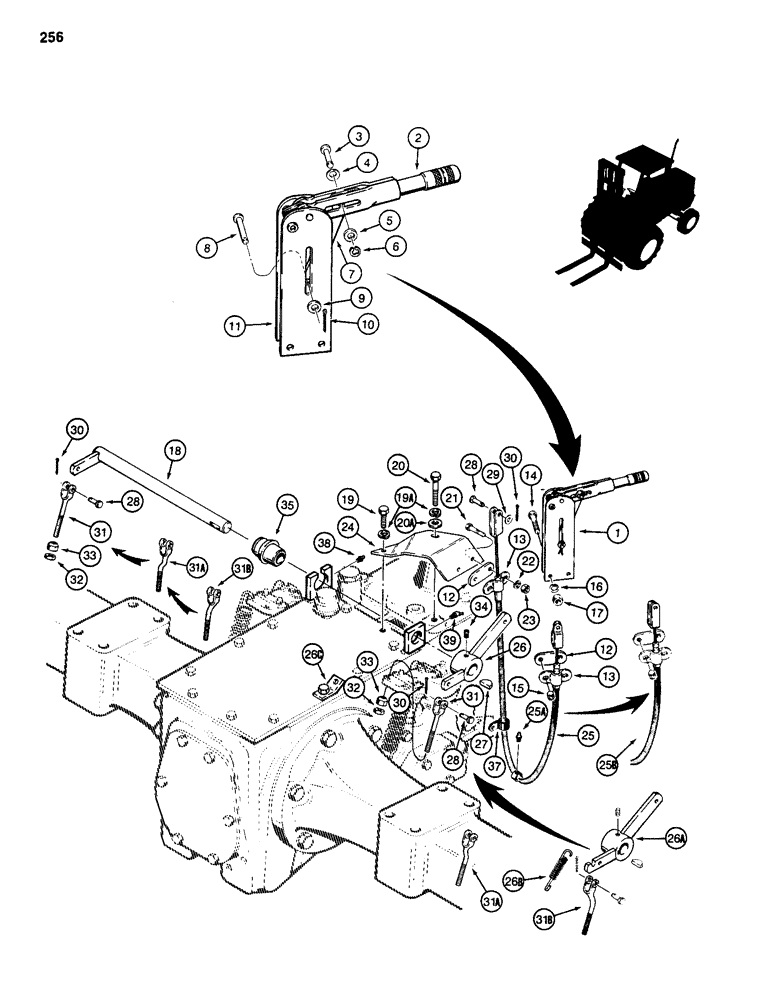

Запчасти Case 586D (256) - PARKING BRAKE LEVER AND LINKAGE, *USED BEFORE TRANSAXLE SN 16270319 (33) - BRAKES & CONTROLS

1

D75370

LEVER

ASSEMBLY - parking brake, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - brake

1шт.

3

A42204

PIN

- lever to link, if used

1шт.

4

A55934

WASHER

- wave, if used

1шт.

5

195-103

WASHER,5/16"

- flat, , plated, if used 5/16"

1шт.

6

F45340

SNAP RING,#31, Ext, E-Type

Ring, Retaining, , if used #31, Ext, E-Type

1шт.

7

NSS

NOT SOLD SEPARAT

LINK - brake lever

1шт.

8

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - lever to brake cable

1шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - brake lever

1шт.

12

D129747

PLATE

- oval, spacer, cable clamp, replaces rectangular plate on some models

2шт.

13

D121608

CLAMP

- parking brake cable

2шт.

14

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

15

D69991

SPACER

- clamp

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

D69400

SHAFT

- parking brake

1шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20a

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

21

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

2шт.

24

D69997

BRACKET

- cable mounting

1шт.

25

D81871

CABLE

- parking brake, no longer used, order D127893 cable, Includes: Ref. 25A

1шт.

25a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, D81871 cable only 1/4"-28 NPT x .54" lg

1шт.

25b

D127893

CABLE

- parking brake

1шт.

26

D69995

LEVER

BELLCRANK - parking brake, if used

1шт.

26a

D126957

LEVER

BELLCRANK - used on models with parking brake alarm, if used

1шт.

26b

A35789

SPRING

- clutch pedal return, used with D126957 bellcrank, if used

1шт.

26c

D127508

BRACKET

- return spring

1шт.

27

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

28

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

3шт.

29

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

30

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

31

D69411

ROD

- straight, hand brake, if used

2шт.

31a

D83994

ROD

- offset, parking brake, if used

2шт.

31b

D127530

FORK

ROD - clevis, offset, parking brake, if used

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

D69410

NUT

- hand brake, 5/16" - 18 NC, special

2шт.

34

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

- square head, cup point, 3/8" - 16 NC x 5/8"

1шт.

35

D74218

BUSHING

- spacer

1шт.

36

RESERVED

1шт.

37

49836

CLAMP

- cable, uses existing transaxle support hardware, see Refs. 8, 9 and 10 on Figures 159 and 161 and Refs. 8, 9, 10, and 11 on Figure 165, no longer used, not required

1шт.

38

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

1шт.

39

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 NF taper

1шт.
