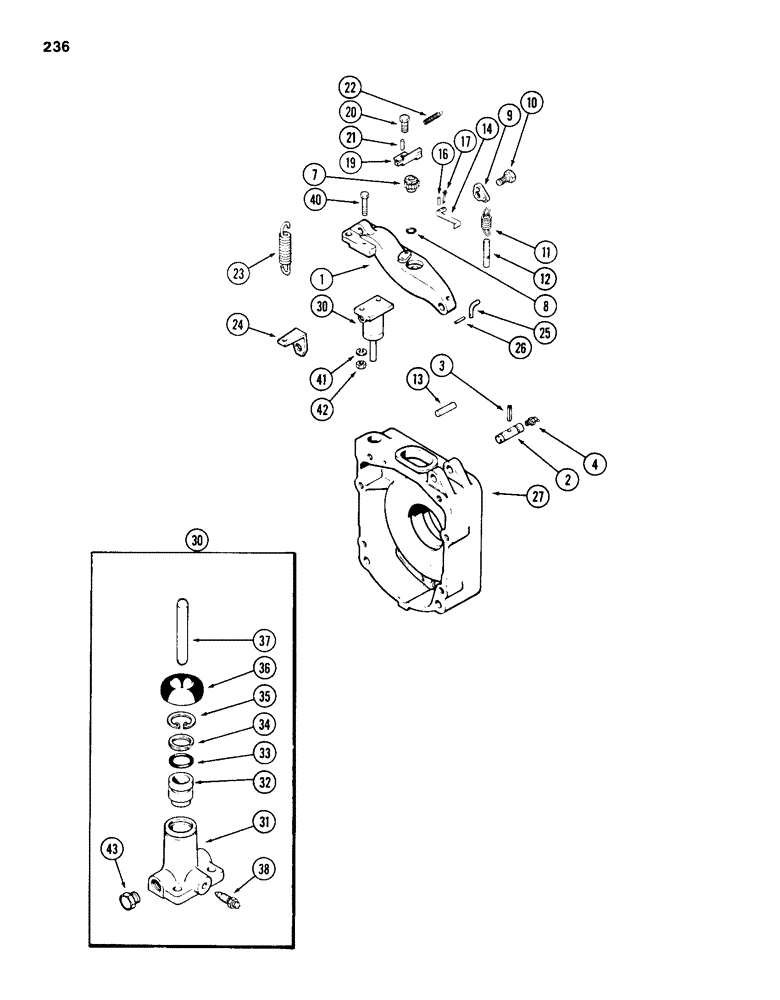

Запчасти Case 586D (236) - TRANSAXLE DIFFERENTIAL BRAKE LEVR & LOCK, TRANSM SN 16249203 TO 16270318, 2 & 4WD, DFFRNTL BRAKE CYL (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
1
A154640
LEVER
- brake, transmission serial no.16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
2
A154569
PIN
- pivot,transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
3
138-2028
PIN,3/16" x 1 1/4", Coiled
Transmission S/N 16249203 to S/N 16270318, 2 and 4 wheel drive 3/16" x 1 1/4", Coiled
2шт.
4
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Transmission S/N 16249203 to S/N 16270318 2 and 4 wheel drive 90º, 1/8" NPT x .84" lg
2шт.
7
A62230
NUT
- ratchet, brake adjusting, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
8
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
- rachet nut, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
9
A64490
CAM
- self adjusting, brake, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
10
A58471
STEP BOLT
BOLT - cam pivot, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
11
A60489
SPRING
- adjusting cam, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
12
A61216
ROD
- cam stop, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
13
A153728
PIN
- spring anchor, 3-13/16 inch long (97 mm), transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
14
A59607
ROD
- lock ratchet, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
16
138-20
LOCK PIN,5/64" x 1/2", Slotted
PIN - roll, 1/16 x 1/2 inch, transmission S/N 16249203 to S/N 16270318 2 and 4 wheel drive
2шт.
17
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), , Transmission S/N 16249203 to S/N 16270318 2 and 4 wheel drive 1/16" x 1/2"
2шт.
19
A59609
BRACKET
- self adjusting brake, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
20
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
Tansmission S/N 16249203 to S/N 16270318 2 and 4 wheel drive Hex, 3/8"-16 x 5/8", G5, Full Thd
2шт.
21
138-92
LOCK PIN,3/16" x 3/4", Slotted
PIN, , Transmission S/N 16249203 to S/N 16270318 2 and 4 wheel drive 3/16" x 3/4", Slotted
2шт.
22
SPRING
- return, ratchet rod, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
23
A35789
SPRING
- brake return, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
24
A155840
BRACKET
- anchor, return spring, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
25
A59319
STUD
- spring retaining, transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
26
138-71
LOCK PIN,5/32" x 5/8", Slotted
PIN, , Transmission S/N 16249203 to S/N 16270318 2 and 4 wheel drive 5/32" x 5/8", Slotted
2шт.
27
REF
INSTRUCTION
HOUSING - brake (See Figure 231), transmission serial no. 16249203 to serial no. 16270318 2 and 4 wheel drive
2шт.
30
A168473
CYLINDER ASSY.
CYLINDER ASSEMBLY - brake (Replaces A62483), differential brake cylinder, Includes: Ref. 31 - 38
2шт.
31
NSS
NOT SOLD SEPARAT
BODY - cylinder, differential brake cylinder
1шт.
32
A45383
PISTON
ASSEMBLY - cylinder, differential brake cylinder
1шт.
33
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
- piston, differential brake cylinder
1шт.
Part of Wheel Cylinder Repair Kit, P/N A42258
1шт.
34
A42252
SEALING RING
RING - backup, differential brake cylinder
1шт.
Part of Wheel Cylinder Repair Kit, P/N A42258
1шт.
35
A42256
SNAP RING,0.901", Int, #90
piston, differential brake cylinder 0.901", Int, #90
1шт.
Part of Wheel Cylinder Repair Kit, P/N A42258
1шт.
36
A42255
BOOT
- cylinder weatherseal, differential brake cylinder
1шт.
Part of Wheel Cylinder Repair Kit, P/N A42258
1шт.
37
A42254
ROD
- push, differential brake cylinder
1шт.
Part of Wheel Cylinder Repair Kit, P/N A42258
1шт.
38
A41491
BLEEDER,1/4" - 28 x 23.37mm
- cylinder bleeder, differential
1шт.
A42258
KIT
REPAIR KIT - wheel cylinder, Includes: Ref. 33, 34, 35, 36, 37, differential brake cylinder
2шт.
40
113-17
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
Differential brake cylinder Hex, 1/4"-20 x 1 1/4", G5
4шт.
41
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Differential brake cylinder 1/4"
4шт.
42
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5, Differential brake cylinder
4шт.
43
222-1062
PLUG,7/16"-24, Inv Fl
- cylinder, differential brake cylinder 7/16"-24, Inv Fl
2шт.
Выбрано товаров: 42
