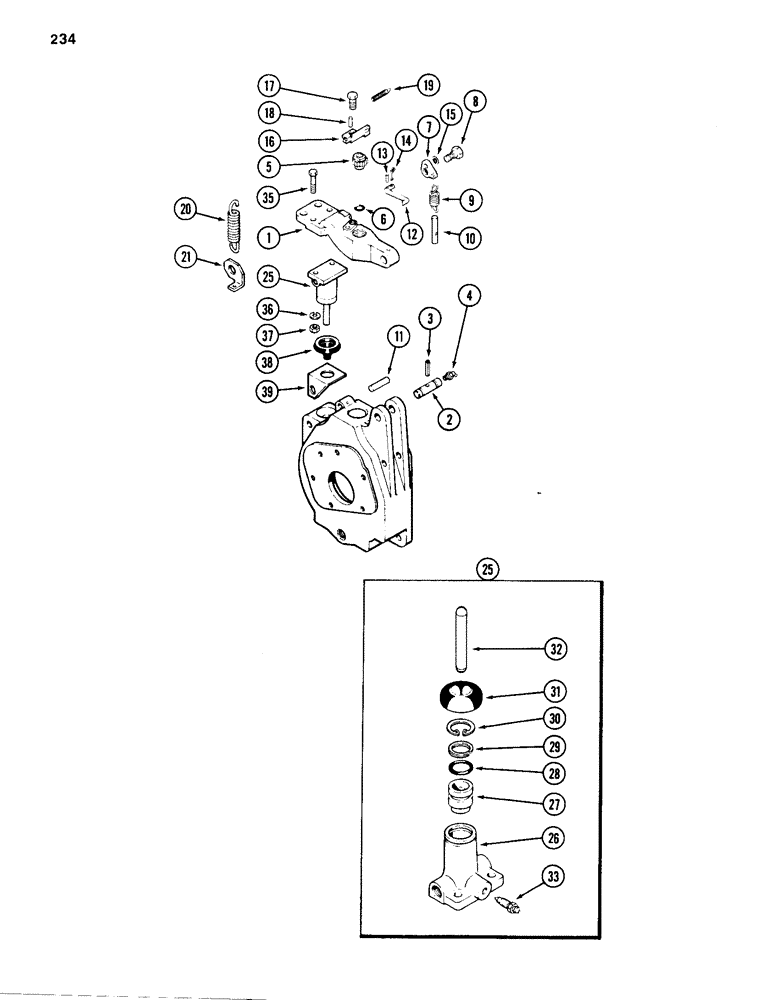

Запчасти Case 586D (234) - TRANSAXLE DIFFERENTIAL BRAKE LEVER AND LOCK, PRIOR TO TRANSM SN 16249203, DIFFERENTIAL BRAKE CYLNDER (33) - BRAKES & CONTROLS

1

A51969

LEVER

- brake, prior to transmission serial no. 16249203

2шт.

2

A154569

PIN

- brake lever pivot, prior to transmission serial no. 16249203

2шт.

3

138-2028

PIN,3/16" x 1 1/4", Coiled

Prior to transmission S/N 16249203 3/16" x 1 1/4", Coiled

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Prior to transmission S/N 16249203 90º, 1/8" NPT x .84" lg

2шт.

5

A148118

NUT

- ratchet, brake adjusting, prior to transmission serial no. 16249203

2шт.

6

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- adjusting nut, prior to transmissiom serial no. 16249203

2шт.

7

A64490

CAM

- self adjusting brake, prior to transmission serial no. 16249203

2шт.

8

A58471

STEP BOLT

BOLT - cam pivot, prior to transmission serial no. 16249203

2шт.

9

A60489

SPRING

- self adjusting brake cam, prior to transmission serial no. 16249203

2шт.

10

A51971

ROD

PIN - spring limit, prior to transmission serial no. 16249203

2шт.

11

REF

INSTRUCTION

PIN - spring anchor (See Figure 231), prior to transmission serial no. 16249203

2шт.

12

A51970

ROD

- ratchet lock, prior to transmission serial no. 16249203

2шт.

13

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN - roll, 1/16 x 1/2 inch, prior to transmission S/N 16249203

2шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Prior to transmission S/N 16249203 1/16" x 1/2"

2шт.

15

S67607

SNAP RING,#25, Ext

Ring, Snap, , grip, brake rod to cam, prior to transmission serial no. 16249203 #25, Ext

2шт.

16

A59609

BRACKET

- self adjusting brake, prior to transmission serial no. 16249203

2шт.

17

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8 NC x 1/2 inch, prior to transmission serial no. 16249203

2шт.

18

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Prior to transmission S/N 16249203 3/16" x 3/4", Slotted

2шт.

19

A60555

SPRING

- ratchet rod return, prior to transmission serial no. 16249203

2шт.

20

A35789

SPRING

- brake return, 4 inch free length (102 mm), prior to transmision serial no. 16249203

2шт.

21

A51974

BRACKET

- anchor, return spring, LH, prior to transmission serial no. 16249203

1шт.

21

A51975

BRACKET

- anchor, return spring, RH, prior to transmission serial no. 16249203

1шт.

25

A148562

CYLINDER

ASSEMBLY - brake, 1 inch diameter cylinder (25 mm) with yellow paint color code, differential brake cylinder, Includes: Ref. 26 - 33

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - cylinder (Reference No. A45028), differential brake cylinder

1шт.

A45025

PISTON

ASSEMBLY - cylinder, differential brake cylinder, Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Reference No. A45025), differential brake cylinder

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - piston, Reference No. A45665, differential brake cylinder

1шт.

REFERENCE NUMBERS IN DESCRIPTION ARE FOR CARES USE ONLY AND CAN NOT BE ORDERED SEPARATELY.

1шт.

Part of Wheel Cylinder Repair Kit, P/N A45027

1шт.

29

S7172

GASKET

RING - O-ring backup, differential brake cylinder

1шт.

REFERENCE NUMBERS IN DESCRIPTION ARE FOR CARES USE ONLY AND CAN NOT BE ORDERED SEPARATELY.

1шт.

Part of Wheel Cylinder Repair Kit, P/N A45027

1шт.

30

NSS

NOT SOLD SEPARAT

RING - snap, piston retaining, Reference No. A46808, differential brake cylinder

1шт.

REFERENCE NUMBERS IN DESCRIPTION ARE FOR CARES USE ONLY AND CAN NOT BE ORDERED SEPARATELY.

1шт.

Part of Wheel Cylinder Repair Kit, P/N A45027

1шт.

31

A45382

COVER

BOOT - cylinder weatherseal, differntial brake cylinder

1шт.

REFERENCE NUMBERS IN DESCRIPTION ARE FOR CARES USE ONLY AND CAN NOT BE ORDERED SEPARATELY.

1шт.

Part of Wheel Cylinder Repair Kit, P/N A45027

1шт.

32

A42254

ROD

- push, differential brake cylinder

1шт.

REFERENCE NUMBERS IN DESCRIPTION ARE FOR CARES USE ONLY AND CAN NOT BE ORDERED SEPARATELY.

1шт.

Part of Wheel Cylinder Repair Kit, P/N A45027

1шт.

33

A41491

BLEEDER,1/4" - 28 x 23.37mm

- cylinder bleeder, differential brake cylinder

1шт.

A45027

KIT

REPAIR KIT - wheel cylinder, Includes: Ref. 28, 29, 30, 31, 32, differential brake cylinder

2шт.

35

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Differential brake cylinder Hex, 1/4"-20 x 1 1/4", G5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Differential brake cylinder 1/4"

4шт.

37

25-104

NUT,1/4"-20, G5

Differential brake cylinder 1/4"-20, G5

4шт.

38

A41490

BOOT

COVER - dust, brake cylinder, differential brake cylinder

2шт.

39

A154558

BRACKET

- brake cylinder cover, RH, differential brake cylinder

1шт.

39

A154557

BRACKET

- brake cylinder cover, LH, differential brake cylinder

1шт.
