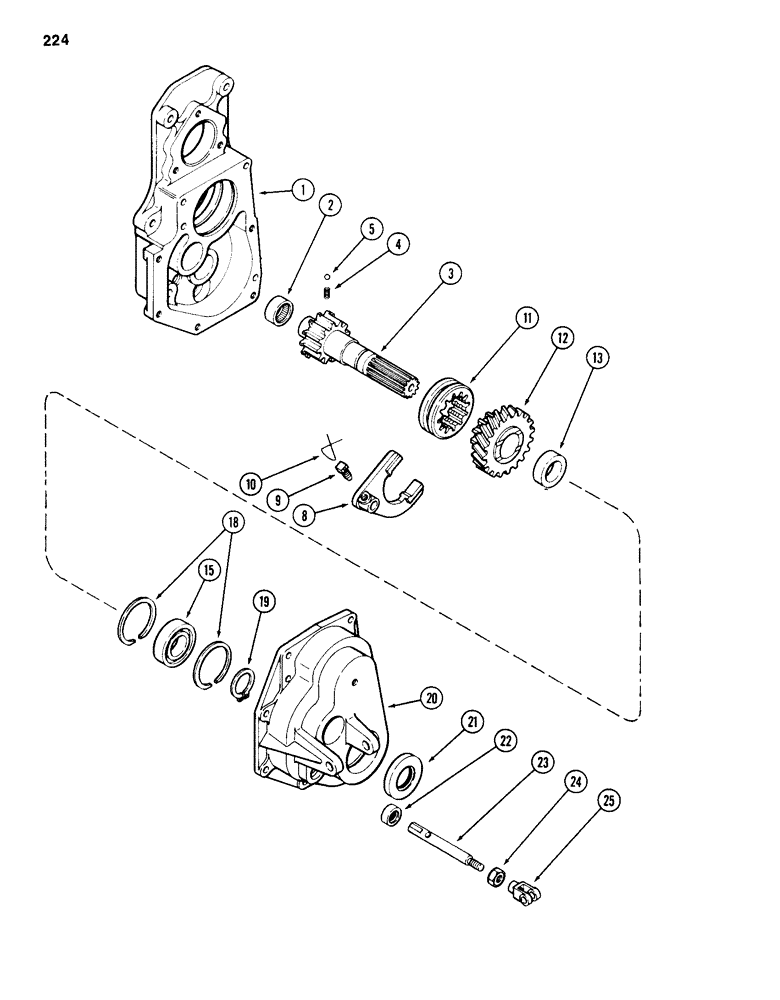

Запчасти Case 586D (224) - TRANSAXLE SHIFT MECHANISM AND OUTPUT SHAFT, PRIOR TO TRANSMISSION SERIAL NO. 16249203, 4 WD (27) - REAR AXLE SYSTEM

1

REF

INSTRUCTION

HOUSING - transfer gearbox (See Figure 218)

1шт.

2

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - output shaft, front

1шт.

3

A156220

SHAFT

- output

1шт.

4

A156269

SPRING

- detent

3шт.

5

211-7

BALL,1/4" Dia

- detent (6 mm) 1/4" Dia

3шт.

8

A51951

FORK

- shifter

1шт.

9

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- shifter fork locking

1шт.

10

A29966

ELECTRICAL WIRE

WIRE - screw to shift fork, locking

1шт.

11

A156258

COLLAR

- output shaft

1шт.

12

A156253

GEAR

- output, 19 teeth

1шт.

13

A156278

SPACER

- gear, 0.611 inch (15.52 mm)

1шт.

13

A156277

SPACER

- gear, 0.616 inch (15.64 mm)

1шт.

13

A156276

SPACER

- gear, 0.621 inch (15.78 mm)

1шт.

13

A156250

SPACER

- gear, 0.626 inch (15.90 mm)

1шт.

15

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - output shaft, front

1шт.

18

A27579

RING

- bearing to cover retaining

2шт.

19

A144595

SNAP RING,#156, Ext

Ring, Snap, , output shaft #156, Ext

1шт.

20

REF

INSTRUCTION

COVER - transfer gearbox (See Figure 219)

1шт.

21

A51948

OIL SEAL

SEAL - output shaft

1шт.

22

G105700

OIL SEAL

- shift fork oil

1шт.

23

A156259

RAIL ASSY.

RAIL - shift fork

1шт.

24

129-123

NUT,3/8"-24, G5

1шт.

25

T40057

YOKE

- shifter rail

1шт.
