Запчасти Case 586D (222) - TRANSAXLE MAINSHAFT ADJUSTING COVER, 4 WHEEL DRIVE (27) - REAR AXLE SYSTEM

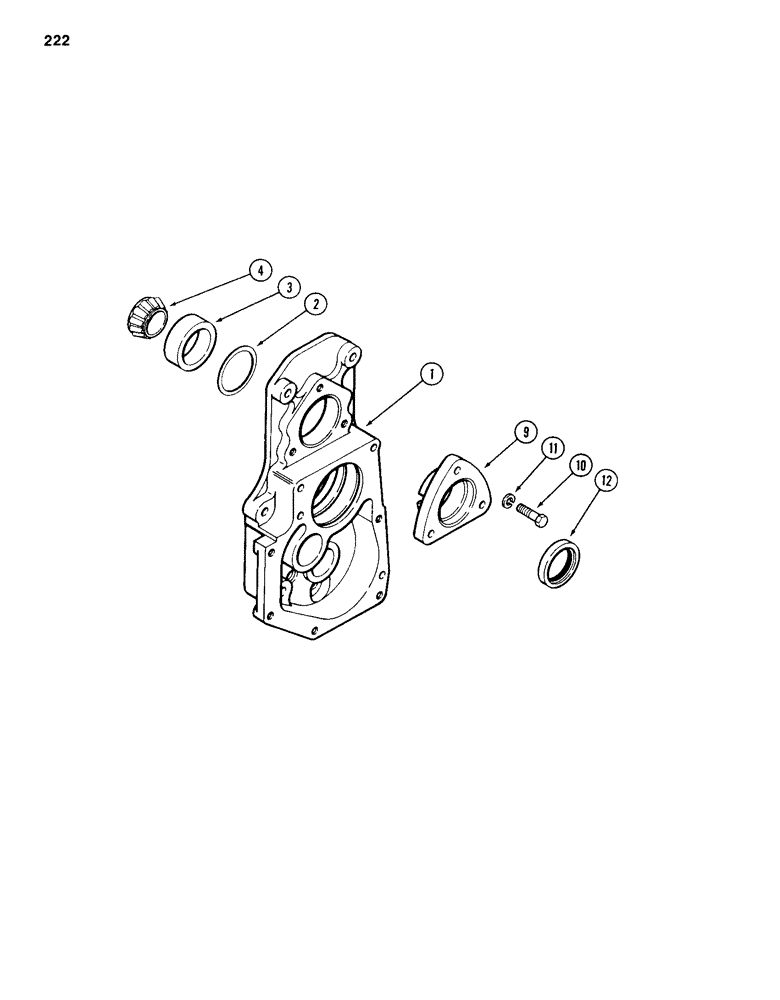

Схема запчастей Case 586D - (222) - TRANSAXLE MAINSHAFT ADJUSTING COVER, 4 WHEEL DRIVE (27) - REAR AXLE SYSTEM
10
1
12
2
4
11
3
9

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING - transfer gearbox (See Figures 218 and 220)

1шт.

2

G10341

SHIM,.005" Thk

Mainshaft rear bearing (0.13 mm) .005" Thk

1шт.

2

G10340

SHIM,.007" Thk

(0.18 mm), Mainshaft rear bearing .007" Thk

1шт.

2

A51527

SHIM,.035" Thk

Mainshaft rear bearing (0.89 mm) .035" Thk

1шт.

3

H753574

BEARING CUP

CUP - mainshaft bearing, rear

1шт.

4

H753566

ROLLER BEARING

CONE - mainshaft bearing, rear

1шт.

9

A156606

BEARING COVER,2.624" ID x 0.69"

COVER - mainshaft bearing adjusting

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A154253

OIL SEAL

- mainshaft

1шт.

Выбрано товаров: 10
