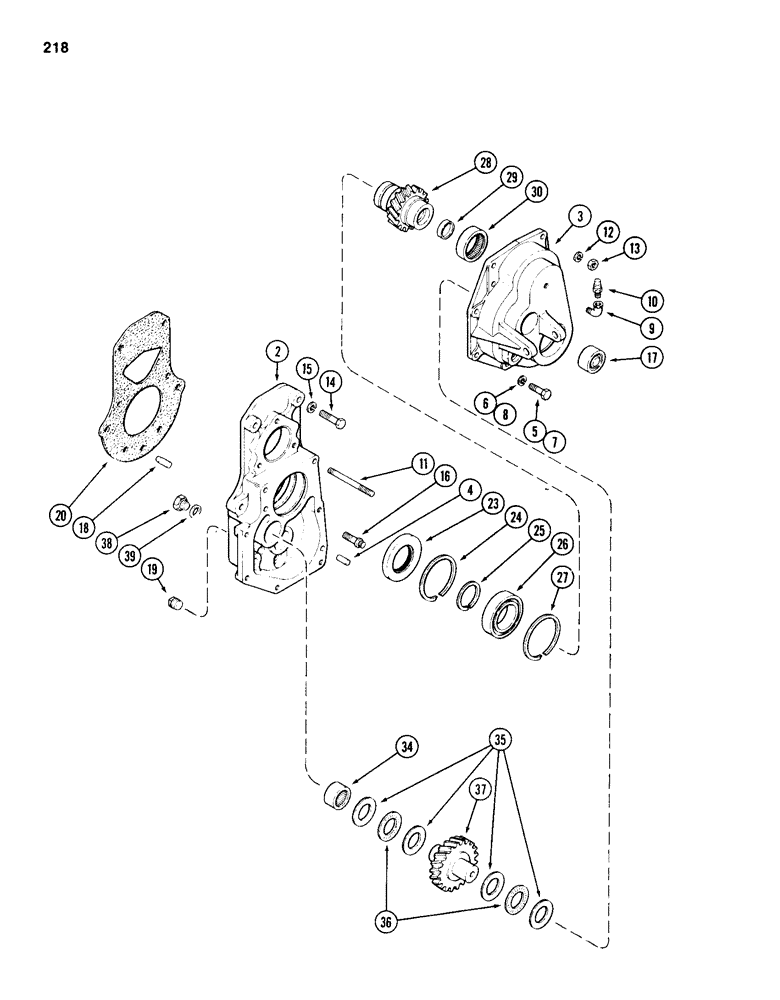

Запчасти Case 586D (218) - TRANSAXLE TRANSFER GEAR BOX, PRIOR TO TRANSMISSION SERIAL NO 16249203, 4WD (27) - REAR AXLE SYSTEM

A156239

HOUSING

ASSEMBLY - transfer gearbox (Matched Set), Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - transfer gearbox (Order A156239) (Reference No. A156238)

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - transfer gearbox (Order A156239) (Reference No.A156237)

1шт.

4

A55459

PIN

- dowel, Serial Range: cover-housing

2шт.

5

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 x 1-1/2 inch, Grade 8

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

10

A12928

BREATHER

- transfer gearbox

1шт.

11

A153248

STUD

- transfer gearbox mounting, 4-13/16 inch

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 12 point head, 1/2 NC x 1-1/2 inch

2шт.

17

A156286

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 25.4mm W

BEARING - idler gear, rear

1шт.

18

A29540

PIN

- dowel, transmission housing

1шт.

19

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/4 inch PT

1шт.

20

A156248

GASKET

GASKET - transmission housing to transfer gearbox

1шт.

23

A157228

OIL SEAL

- input gear oil

1шт.

24

A31234

RING

- bearing to gearbox retaining

1шт.

25

CASA27117

RING, SNAP

RING - retaining, 0.096 inch (2.44 mm)

1шт.

25

A27118

RING, SNAP

RING - retaining, 0.0975 inch (2.47 mm)

1шт.

25

A27119

RING, SNAP

RING - retaining, 0.099 inch (2.52 mm)

1шт.

25

A27116

SNAP RING

RING - retaining, 0.109 inch (2.78 mm)

1шт.

26

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - input gear, front

1шт.

27

A31234

RING

- bearing to gearbox retaining

1шт.

28

A157190

GEAR

- input, 14 teeth

1шт.

29

41-1024

PLUG,Cup, 1 1/2"

- cup type, 1-1/2 inch (38 mm)

1шт.

30

A28161

NEEDLE BEARING,Needle, 57.15mm ID x 66.67mm OD x 19.05mm W

BEARING - input gear, rear

1шт.

34

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING - idler gear, front

1шт.

35

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

- idler gear thrust

4шт.

36

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - idler gear thrust

2шт.

37

A156256

GEAR

- idler, 17 teeth

1шт.

38

A140222

PLUG

- transfer gearbox drain

1шт.

39

A58608

GASKET

- drain plug

1шт.
