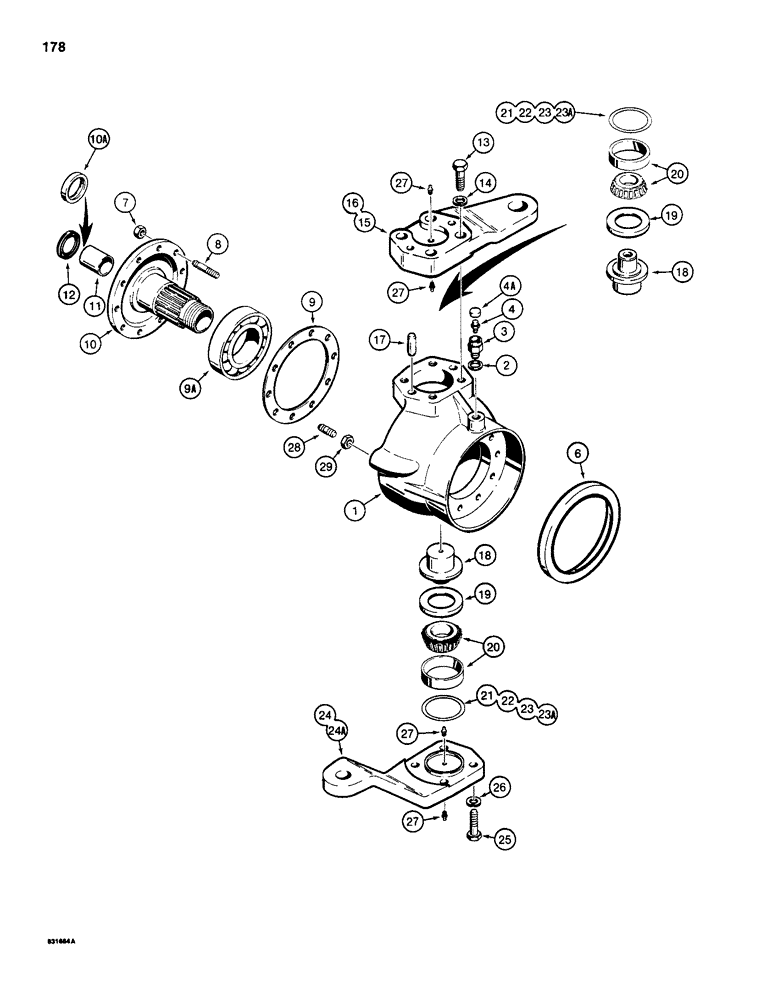

Запчасти Case 586D (178) - REAR DRIVE AXLE, SWIVEL HOUSINGS, FOUR WHEEL DRIVE MODELS (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
D124605
CENTER AXLE
AXLE ASSEMBLY (CARRARO 118218) - rear drive, Includes: Ref. 1 - 29
1шт.
D124605 Axle Assembly includes all parts on Figures 177-185. For axle mounting see Figure 173.
1шт.
6
N8898
OIL SEAL
- oil, housing, 170 mm OD x 145 mm ID x 16 mm wide, fits outside of K261816 wear ring, Ref. 10, on Figure 184, may replace oil seal and felt seal mounted one behind the other used on some models
2шт.
N8897 seal dim.(40 x 50 x 10 mm). old seal K965325 dim. (40 x 62 x 10.7 mm) subs to N8897, seal and N8892 sleeve.
1шт.
20
N7534
ROLLER BEARING,30mm ID x 62mm OD x 17.25mm W
TAPERED ROLLER BEARING - swivel pin
4шт.
23a
NSS
NOT SOLD SEPARAT
SHIM - 1.0 mm, when replacing this shim, use two K965245 shims (Ref. 23)
1шт.
24
D126277
ARM
LEVER - lower, swivel housing to tie rod ball joint, left-hand
1шт.
24a
D126278
ARM
LEVER - lower, swivel housing to tie rod ball joint, right-hand
1шт.
27
5194260
LUBE NIPPLE,M6 x 1, 16mm lg
GREASE FITTING - steering levers and covers
8шт.
