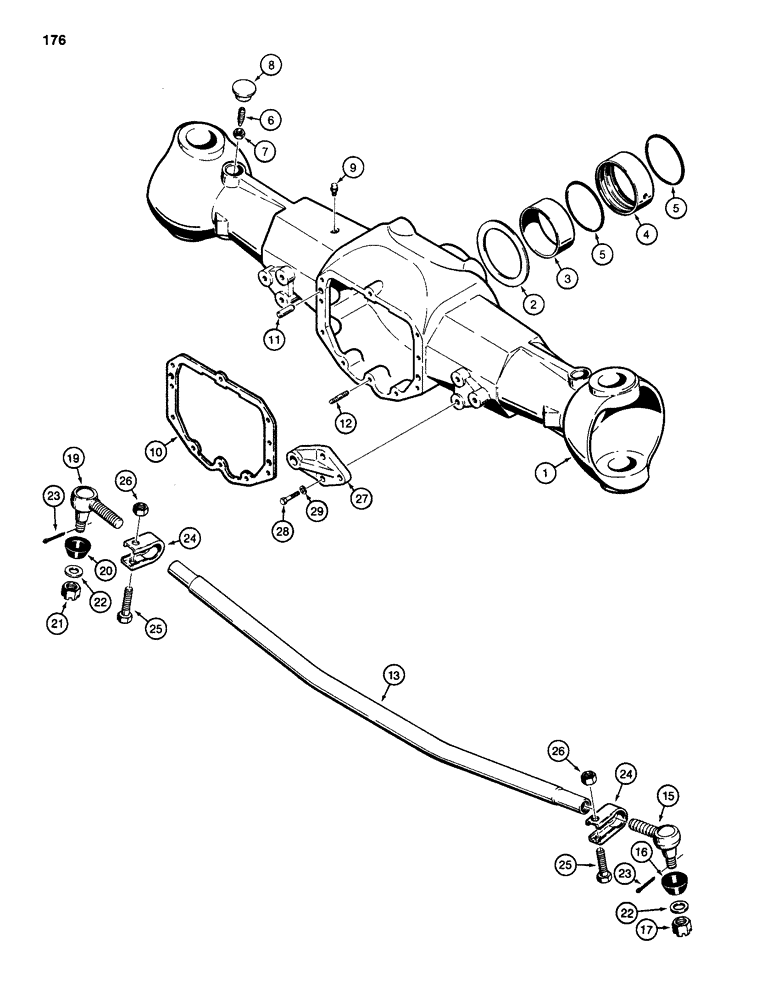

Запчасти Case 586D (176) - REAR DRIVE AXLE, HOUSING AND TIE ROD, FOUR WHEEL DRIVE MODELS (27) - REAR AXLE SYSTEM

D124605

CENTER AXLE

AXLE ASSEMBLY (CARRARO 118218) - rear drive, Includes: Ref. 1 - 29

1шт.

D124605 Axle Assembly includes all parts on Figures 177-185. For axle mounting see Figure 173.

1шт.

1

N7627

SHAFT

HOUSING - axle

1шт.

2

K965264

WASHER

THRUST WASHER - rear pivot

1шт.

3

K965266

BUSHING

SLEEVE - rear pivot

1шт.

4

K965265

BUSHING

COLLAR - rear pivot

1шт.

5

K965267

O-RING,0.07" Thk x 4.489" ID

- rear pivot

2шт.

6

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

SCREW - lock, bearing retaining

4шт.

7

825-1014

NUT,M14, Cl 8

- hex, 14 mm - 2

4шт.

8

K956997

CAP

COVER - dust

4шт.

9

K965231

BREATHER

- axle housing

1шт.

10

N7524

GASKET

GASKET - differential carrier

1шт.

11

K965252

PIN

DOWEL PIN -, Serial Range: housing-carrier

2шт.

12

K261839

STUD

-, Serial Range: housing-carrier

10шт.

13

D126279

TIE-ROD

TIE ROD - steering

1шт.

14

RESERVED

1шт.

K260250

BALL JOINT

ASSEMBLY - left-hand, Includes: Ref. 15 - 17

1шт.

K260254 and k260250 Carraro has made a change on this ball joint's. In parts books and print, this shows a hole where a cotter pin goes thru to hold on a nut. This hole has been removed and no longer requires the pin.The ball joints received w/out a hole require a new locking nut (#102894A1)

1шт.

15

NSS

NOT SOLD SEPARAT

BALL JOINT - left-hand

1шт.

16

K956939

CAP

BOOT - ball joint

1шт.

17

K260251

NUT

CASTLE NUT - ball joint

1шт.

18

RESERVED

1шт.

K260254

BALL JOINT

ASSEMBLY - right-hand, Includes: Ref. 19 - 21

1шт.

K260254 and k260250 Carraro has made a change on this ball joint's. In parts books and print, this shows a hole where a cotter pin goes thru to hold on a nut. This hole has been removed and no longer requires the pin.The ball joints received w/out a hole require a new locking nut (#102894A1)

1шт.

19

NSS

NOT SOLD SEPARAT

BALL JOINT - right-hand

1шт.

20

K956939

CAP

BOOT - ball joint

1шт.

21

K260251

NUT

CASTLE NUT - ball joint

1шт.

22

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

23

K260255

PIN

COTTER PIN - ball joint

2шт.

24

N8904

CLAMP

- tie rod

2шт.

25

N8905

BOLT

- special

2шт.

26

K260157

NUT

- special

2шт.

27

N7525

BRACKET

SUPPORT - steering cylinder

2шт.

28

N7526

BOLT,Hex, M14 x 40, 8.8, Full Thd

- hex head, 14 mm

6шт.

29

K965248

WASHER

- lock, 14 mm

6шт.
